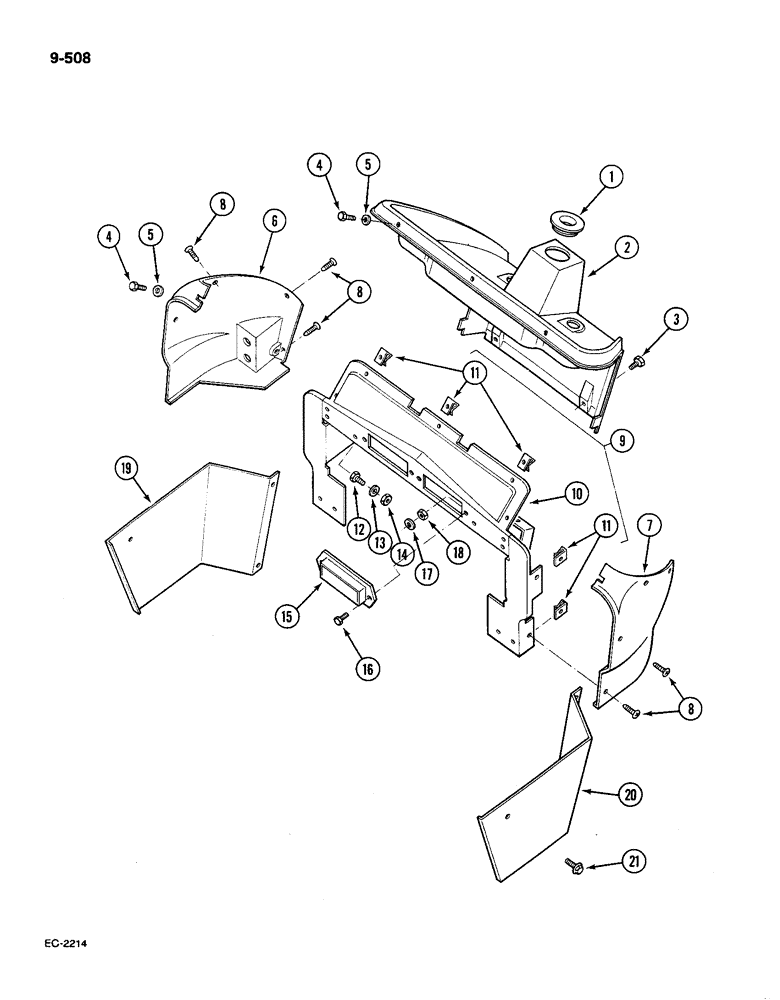

Запчасти Case IH 585 (9-508) - INSTRUMENT HOUSING AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3123366R1

PLUG

rubber (steering column)

1шт.

2

1500974C3

PANEL, INSTRUMENTS

HOUSING instrument panel

1шт.

2

1332884C1

PANEL, INSTRUMENTS

HOUSING instrument panel, with oil pressure gauge and ammeter fit

1шт.

3

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

Instrument panel to steering support Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

4

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW, SELF TAPPING, , Instrument panel to instrument panel back plate Hex Hd, #10 x 5/8"

5шт.

5

120391

WASHER,#10

flat, instrument panel to instrument panel back plate, 0.219 x 0.5 x 0.036 inch

5шт.

6

3121712R3

HOUSING

instrument panel side, right

1шт.

7

3121711R4

HOUSING

instrument panel side, left

1шт.

8

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW Phillips pan, tapping, No. 10 x 5/8 inch

10шт.

9

3125771R92

PLATE ASSY.

PLATE instrument panel support, Includes: Ref. 10 and 11, Serial Range: -25893

1шт.

9

1333010C1

PLATE

instrument panel support, Includes: Ref. 10 and 11, Start Serial: 24580

1шт.

10

3121684R4

PLATE

instrument panel back, Serial Range: -25893

1шт.

10

1333008C1

PLATE

instrument panel back, Start Serial: 24580

1шт.

11

3123171R1

NUT

captive

7шт.

12

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5, Instrument panel back plate to battery tray

2шт.

13

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Instrument panel back plate to batttery tray, 5/16 inch 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

hex, instrument panel back plate to battery tray, 5/16 inch NC, grade 5

2шт.

15

NSS

NOT SOLD SEPARAT

BOX fuse, see Figure 4-130

1шт.

16

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

17

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

19

3121638R1

GUARD

PANEL lower rear side, right

1шт.

19

1333048C1

PANEL

lower rear side, right (orchard tractor)

1шт.

20

3121637R1

GUARD

PANEL lower rear side, left

1шт.

20

1333047C1

PANEL

lower rear side, left (orchard tractor)

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

cap, 1/4 NC x 5/8 inch

6шт.
