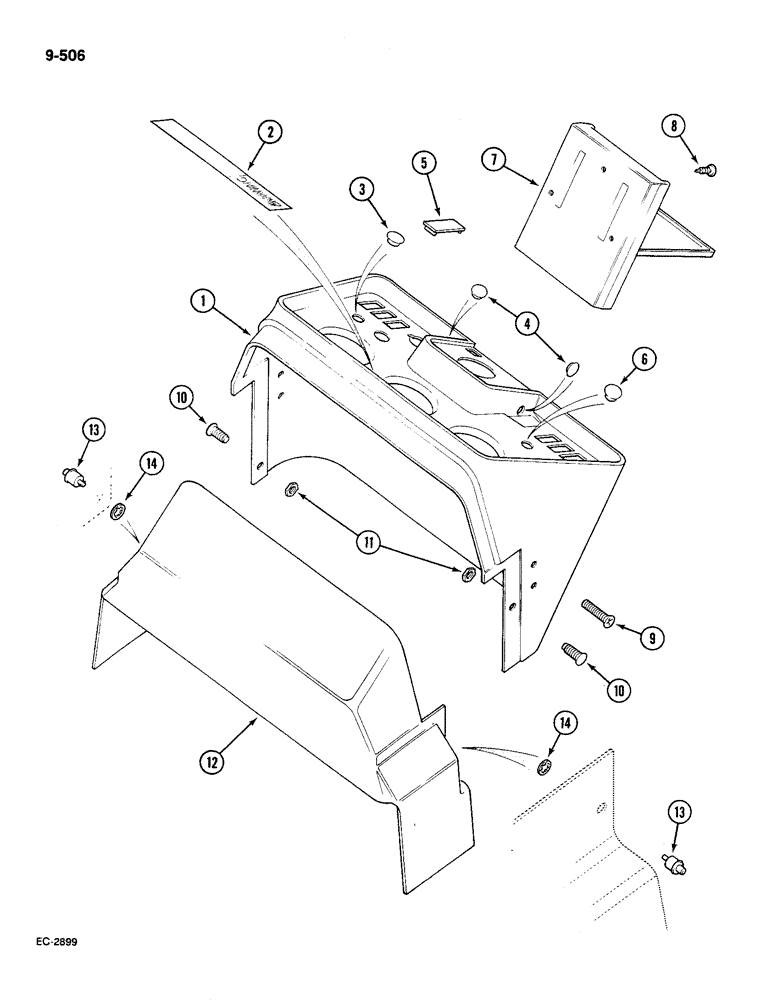

Запчасти Case IH 585 (9-506) - INSTRUMENT HOUSING, WITH CAB (09) - CHASSIS/ATTACHMENTS

1

1330755C1

PANEL

instrument rear, Includes: Ref. 2

1шт.

Ref #1 - New Rear Panel 1536949C1. New Instrument Cluster 1983576C1

1шт.

2

321-6770

DECAL

warning, PTO overspeed, English

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

Blanking, Horn switch Dome, 1.000" hole, Nylon

1шт.

4

1500083C1

PLUG

blanking

1шт.

5

245918C1

LENS

PLUG, blanking, rocker switch

1шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

Blanking, 2 speed power shift switch Dome, .500" hole, Nylon

1шт.

7

A177376

BOX

operators manual

1шт.

8

A162364

FASTENER

panel

3шт.

9

3234909R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

flat hd, M8 x 2

4шт.

10

3399135R1

SCREW

camloc

2шт.

11

3399136R1

NUT

hex, M12

2шт.

12

3234653R1

GUARD

SUPPORT instrument panel

1шт.

13

3399133R1

LOCK PIN

PIN lock

2шт.

14

3399134R1

RING

2шт.
