Запчасти Case IH 585 (9-504) - SIDE PANEL REPLACEMENT KITS, PRIOR TO P.I.N. 2196 (09) - CHASSIS/ATTACHMENTS

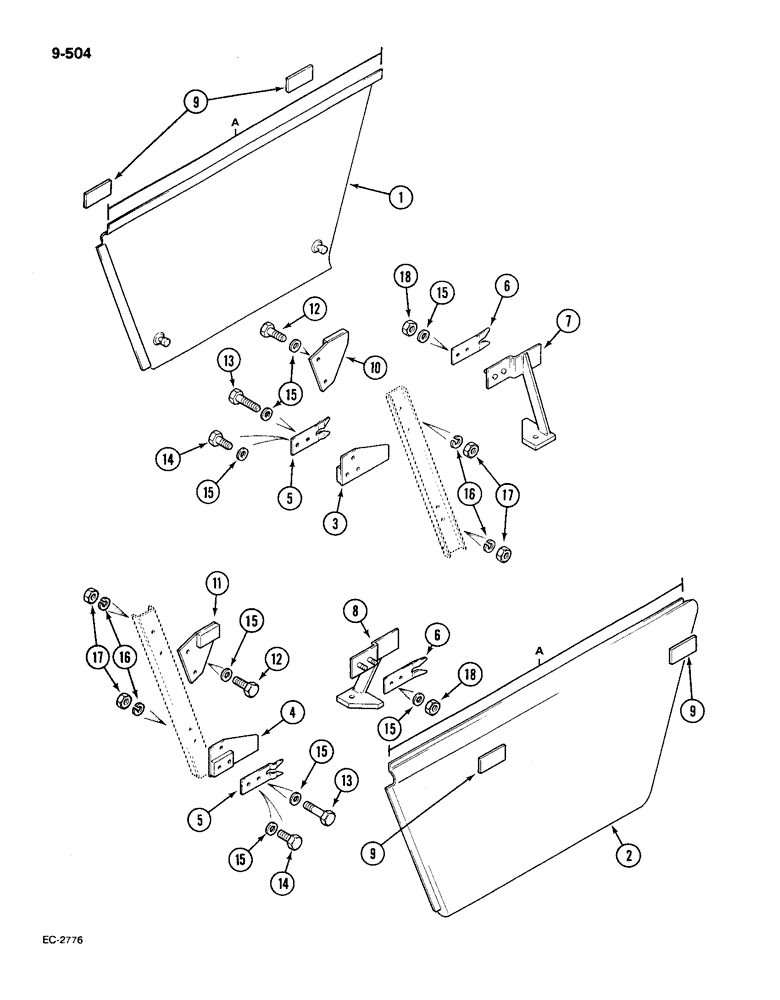

Схема запчастей Case IH 585 - (9-504) - SIDE PANEL REPLACEMENT KITS, PRIOR TO P.I.N. 2196 (09) - CHASSIS/ATTACHMENTS
4
15
9
15
11
9
18
5
7
14
15
12
17
6
10
2
13
17
1
13
3
15
16
8
18
6
14
15
9
5
12
15
15
16

Артикул

Название

Примечание

Количество

1970746C1

KIT

service, right side panel (Kit A, Standard bolster 94178C2 and 4 wheel drive bolster 94180C1) (Replacement kit for side panel 99443C1) Includes: Ref. 1-18

1шт.

1970747C1

KIT

service, left side panel (Kit B, Standard bolster 94178C2 and 4 wheel drive bolster 94180C1) (Replacement kit for side panel 99444C1) Includes: Ref. 1-18

1шт.

1970748C1

KIT

service, right side panel (Kit C, Hi-clearance bolster 94179C1 and fabricated bolster) (Replacement kit for side panel 994406C1) Includes: Ref. 1-18

1шт.

1970749C1

KIT

service, left side panel (Kit D, Hi-clearance bolster 94179C1 and fabricated bolster) (Replacement kit for side panel 94407C1) Includes: Ref. 1-18

1шт.

1

1970607C1

PANEL

side, right, 'A' = 23 inch (Kit A)

1шт.

1

1970615C1

PANEL

side, right, 'A' = 19-1/2 inch (Kit C)

1шт.

2

1970608C1

PANEL

side, left, 'A' = 23 inch (Kit B)

1шт.

2

1970616C1

PANEL

side, left, 'A' = 19-1/2 inch (Kit D)

1шт.

3

1970727C1

BRACKET

front, right (Kits A and C)

1шт.

4

1970728C1

BRACKET

front, left (Kits B and D)

1шт.

5

1333180C1

CLIP

panel, front

1шт.

6

1333181C1

CLIP

panel, rear

1шт.

7

1333183C1

SUPPORT

side panel, right (Kits A and C)

1шт.

8

1333184C1

SUPPORT

side panel, left (Kits B and D)

1шт.

9

1333189C1

RUBBER

BLOCK rubber

2шт.

10

1970731C1

BRACKET

hood, right (Kits A and C)

1шт.

11

1970732C1

BRACKET

hood, left (Kits B and D)

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

14

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

hex, 1/4 NC x 1/2 inch, grade 5

1шт.

15

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

16

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18

231-4144

NUT,1/4"-20, GB

NUT hex, 1/4 inch NC, grade 5

2шт.

Выбрано товаров: 24
