(9-502) - HOOD AND SIDE PANELS, WITH CAB, CONTD

Запчасти Case IH 585 (9-502) - HOOD AND SIDE PANELS, WITH CAB, CONTD (09) - CHASSIS/ATTACHMENTS

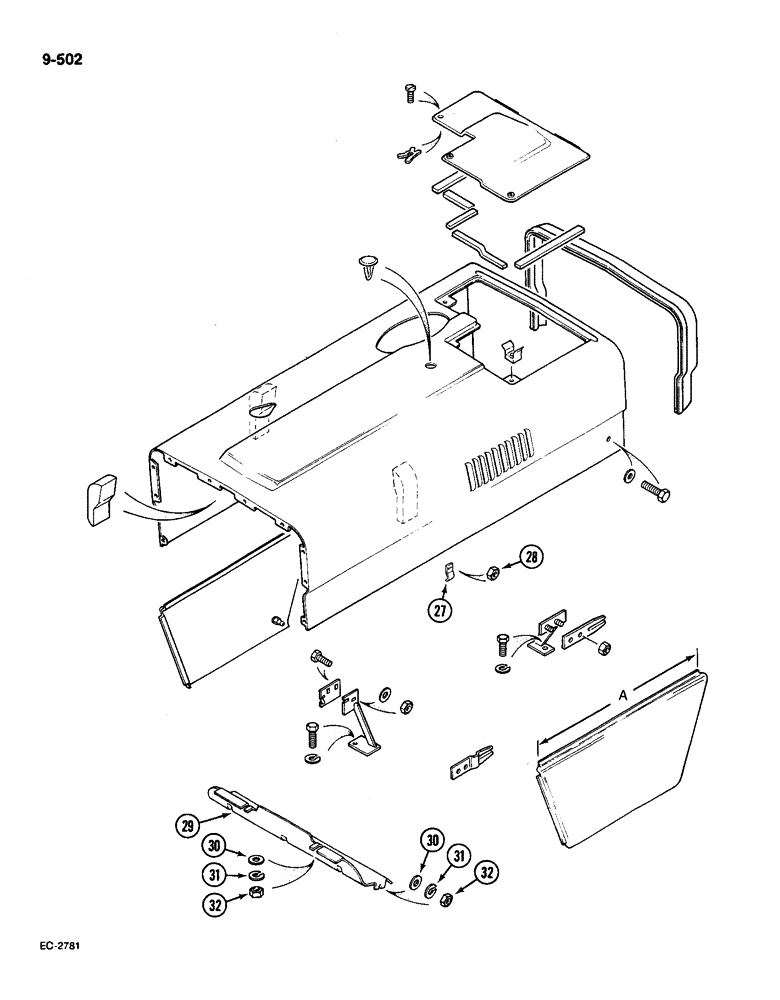

Схема запчастей Case IH 585 - (9-502) - HOOD AND SIDE PANELS, WITH CAB, CONTD (09) - CHASSIS/ATTACHMENTS
28
32
31
27
31
30
26
32
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

27

94367C1

SPRING

RETAINER side panel, Serial Range: -21696

2шт.

28

30267R1

NUT,M4, Cl 8

hex, M4

4шт.

29

3121397R2

BAFFLE

upper

1шт.

30

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

4шт.

31

933833R1

LOCK WASHER,M6

WASHER lock, M6

4шт.

32

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

4шт.
