Запчасти Case IH 585 (9-500) - HOOD AND SIDE PANELS, WITH CAB (09) - CHASSIS/ATTACHMENTS

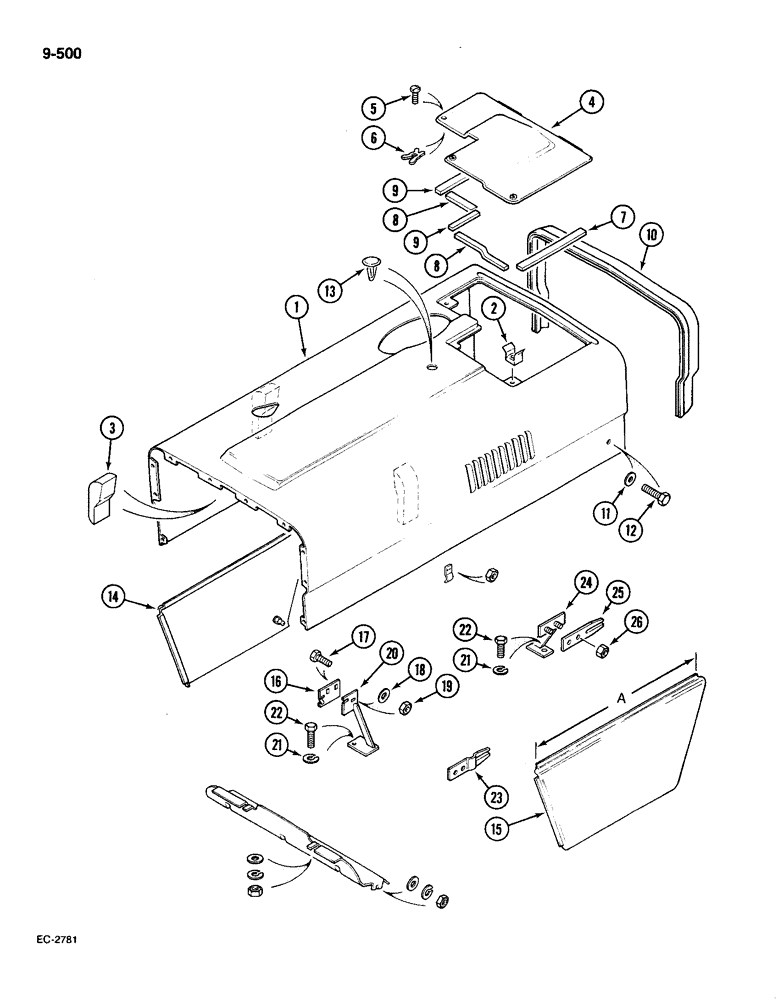

Схема запчастей Case IH 585 - (9-500) - HOOD AND SIDE PANELS, WITH CAB (09) - CHASSIS/ATTACHMENTS
8
9
22
21
17
16
10
15
8
6
19
20
7
12
23
1
26
14
13
24
4
2
25
9
22
3
21
11
5
18

Артикул

Название

Примечание

Количество

1

94210C92

HOOD ASSY.

HOOD, Includes: Ref. 2 and 3

1шт.

2

1502286C1

NUT

cage floating, 5/16 inch NC

3шт.

3

98935C1

SEAL

foam, hood corner

2шт.

4

3129716R91

COVER ASSY

COVER rear hood, Includes: Ref. 5-9

1шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled

3шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW (Optional to 389872R1)

3шт.

6

376787R1

WASHER

X-type, 0.256 x 0.75 inch

3шт.

7

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, 10 inch (Cut from 1265282C1)

1шт.

7

1265282C1

STRIP

SEAL bulk length

1шт.

7

73211C1

GASKET

SEAL bulk length, Serial Range: (Optional-1265282C1)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, 5.5 inch (Cut from 1265282C1)

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL rear hood cover 4 inch (Cut from 1265282C1)

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

10

1265280C1

SEAL

rubber, bulk length, 4 foot roll

1шт.

11

98775C1

WASHER

flat, 5/16 inch, painted black

2шт.

12

98778C1

BOLT

hex, 5/16 inch NC, painted black

2шт.

13

3129635R1

PLUG

screen washer hole

1шт.

14

99443C1

PANEL

side, right (For replacement order kit 1970848C1, see Figure 9-504), Serial Range: -21696

1шт.

14

1970607C1

PANEL

side, right, dim. A = 23-1/2 inch, Start Serial: 21696

1шт.

14

99406C1

PANEL side, right (For replacement order kit 1970848 C1, see Figure 9-504), Serial Range: -21696

1шт.

14

1970615C1

PANEL

side, right, dim. A = 19-3/4 inch, Start Serial: 21696

1шт.

15

99444C1

PANEL

side, left (For replacement order kit 1970608 C1, see Figure 9-504), Serial Range: -21696

1шт.

15

1970608C1

PANEL

side, left, dim. A = 23-1/2 inch inch, Start Serial: 21696

1шт.

15

94407C1

PANEL

side, left (For replacement order kit 1970749 C1, see Figure 9-504), Serial Range: -21696

1шт.

15

1970616C1

PANEL

side, left, dim. A = 19-3/4 inch, Start Serial: 21696

1шт.

16

99642C1

PLATE

adjustable, right, Serial Range: -21696

1шт.

16

99644C1

PLATE

adjustable, left, Serial Range: -21696

1шт.

17

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch

4шт.

18

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

19

231-4144

NUT,1/4"-20, GB

NUT hex, 1/4 inch NC

4шт.

20

99627C1

SUPPORT

side panel, right, Serial Range: -21696

1шт.

20

99628C1

SUPPORT

side panel, left, Serial Range: -21696

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5

2шт.

23

1333180C1

CLIP

panel, front, Start Serial: 21696

2шт.

24

1333184C1

SUPPORT

side panel, left, Start Serial: 21696

1шт.

24

1333183C1

SUPPORT

side panel, right, Start Serial: 21696

1шт.

25

1333181C1

CLIP

panel, front, Start Serial: 21696

2шт.

26

231-4144

NUT,1/4"-20, GB

NUT hex, 1/4 inch NC

8шт.

Выбрано товаров: 39
