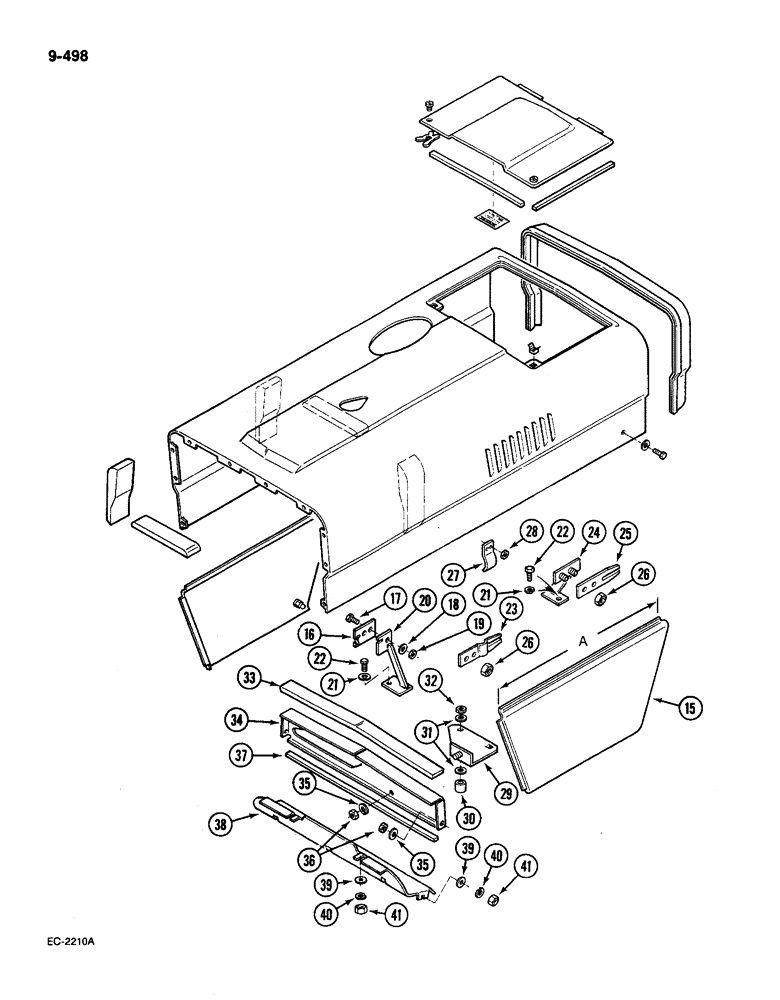

Запчасти Case IH 585 (9-498) - HOOD AND SIDE PANELS, WITHOUT CAB. CONTD (09) - CHASSIS/ATTACHMENTS

15

94407C1

PANEL

side, left (with Hi clearance or fabricated bolsters) (for replacement order kit 1970749 C1: see Figure 9-504), Serial Range: -21696

1шт.

15

1970616C1

PANEL

side, left, dim. A = 19-3/4 inch (with Hi clearance or fabricated bolsters), Start Serial: 21696

1шт.

15

1333132C1

PANEL

side, left, dim. A = 22-1/2 inch (orchard tractor)

1шт.

16

99642C1

PLATE

adjustable, right (Note E), Serial Range: -21696

1шт.

16

99644C1

PLATE

adjustable, left (Note E), Serial Range: -21696

1шт.

16

1333135C1

PLATE

adjustable, right (orchard tractor)

1шт.

16

1333134C1

PLATE

adjustable, left (orchard tractor)

1шт.

17

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch

4шт.

18

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

19

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC

4шт.

20

99627C1

SUPPORT

side panel, right (orchard tractor), Serial Range: -21696

1шт.

20

99628C1

SUPPORT

side panel, left (orchard tractor), Serial Range: -21696

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5

2шт.

23

1333180C1

CLIP

panel, front, Start Serial: 21696

2шт.

24

1333184C1

SUPPORT

side panel, left, Start Serial: 21696

1шт.

24

1333183C1

SUPPORT

side panel, right, Start Serial: 21696

1шт.

25

1333181C1

CLIP

panel, front, Start Serial: 21696

1шт.

26

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC

8шт.

27

94367C1

SPRING

RETAINER side panel (orchard tractor), Serial Range: -21696

2шт.

28

30267R1

NUT,M4, Cl 8

hex, M4

4шт.

29

98911C1

BRACKET

mounting, upper baffle

1шт.

29

1333026C1

BRACKET

mounting, upper baffle (4 wheel drive), Start Serial: 21696

1шт.

30

3118801R1

SPACER

insulation

1шт.

31

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

2шт.

32

120376

NUT,5/16"-18, G5

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL upper, 465mm (cut from bulk length)

1шт.

34

98906C1

DEFLECTOR

BAFFLE upper, air

1шт.

34

1333035C1

DEFLECTOR

BAFFLE upper, air (4 wheel drive), Start Serial: 21696

1шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

36

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

37

NSS

NOT SOLD SEPARAT

SEAL upper air baffle, 416mm (cut from bulk length)

1шт.

38

3121397R2

BAFFLE

upper

1шт.

39

934948R1

WASHER,M6

flat, 6.4 x 12.5 x 1.6 mm

4шт.

40

933833R1

LOCK WASHER,M6

WASHER lock, M6

4шт.

41

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

M6, zinc plated, class 8

4шт.
