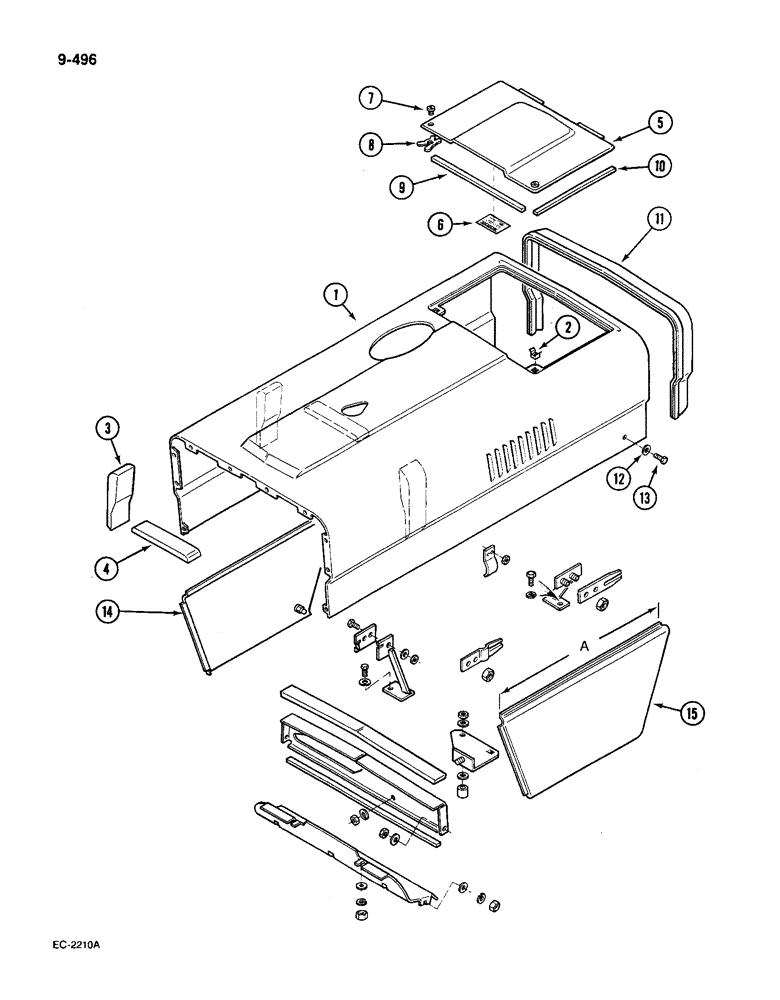

Запчасти Case IH 585 (9-496) - HOOD AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

94212C93

HOOD ASSY.

HOOD Hi-clearance bolster

1шт.

1

94214C93

HOOD ASSY.

HOOD Standard and 4 wheel drive bolster

1шт.

Ref #1B - 94214c93 has underslung muffler

1шт.

1

94190C93

HOOD ASSY.

HOOD Standard and 4 wheel drive bolster

1шт.

Ref #1C - 94190c93 has vertical exhaust

1шт.

1

94188C93

HOOD ASSY.

HOOD Hi-clearance and fabricated bolster

1шт.

1

1333127C1

HOOD ASSY.

HOOD Includes: Ref. 2, 3 and 4

1шт.

2

1502286C1

NUT

cage floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

foam, hood corner

2шт.

4

98936C1

ADHESIVE STRIP

SEAL hood centre, 200mm (cut from bulk length)

1шт.

5

1330795C1

COVER

rear hood (with decal 321-6714), Includes: Ref. 6-10

1шт.

6

321-6714

DECAL

battery jump start

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled

2шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW (Optional to 389872R1)

2шт.

8

376787R1

WASHER

X-type, 0.256 x 0.75 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, 10.9 inch (Cut from 1265282 C1)

1шт.

9

1265282C1

STRIP

SEAL bulk length

1шт.

9

73211C1

GASKET

SEAL bulk length (Optional to 1265282 C1)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, 17 inch (Cut from 1265282 C1)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL hood sheet, 45.7 inch (cut from bulk length)

1шт.

11

1265280C1

SEAL

rubber, bulk length, 4 foot roll

1шт.

11

1970639C1

STRIP

(4 wheel drive tractor) O, Start Serial: 21696

1шт.

12

98775C1

WASHER

flat, 5/16 inch, painted black

2шт.

13

98778C1

BOLT

hex, 5/16 inch NC, painted black

2шт.

14

99443C1

PANEL

side, right (Standard or 4 wheel drive bolster) (for replacement order kit 1970746 C1), Serial Range: -21696

1шт.

14

1970607C1

PANEL

side, right, dim. A = 23-1/2 inch, Standard bolster, Start Serial: 21696

1шт.

Ref #14B - Order Kit 1539001C1

1шт.

14

1333167C1

PANEL

side, right, dim. A = 22-1/2 inch, with 4 wheel drive bolster, Start Serial: 21696

1шт.

14

94406C1

PANEL

side, right with Hi clearance or fabricated bolsters) (for replacement order kit 1970748C1: see page), Serial Range: -21696

1шт.

14

1970615C1

PANEL

side, right, dim. A = 19-3/4 inch (with Hi clearance or fabricated bolsters), Start Serial: 21696

1шт.

14

1333133C1

PANEL

side, right, dim. A = 22-1/2 inch (orchard tractor)

1шт.

15

99444C1

PANEL

side, left (with Standard or 4 wheel drive bolster) (for replacement order kit 1970747C1: see page), Serial Range: -21696

1шт.

15

1970608C1

PANEL

side, left, dim. A = 23-1/2 inch (with Standard bolster), Start Serial: 21696

1шт.

15

1333168C1

PANEL

side, left, dim. A = 22-1/2 inch (with 4 wheel drive bolster), Start Serial: 21696

1шт.
