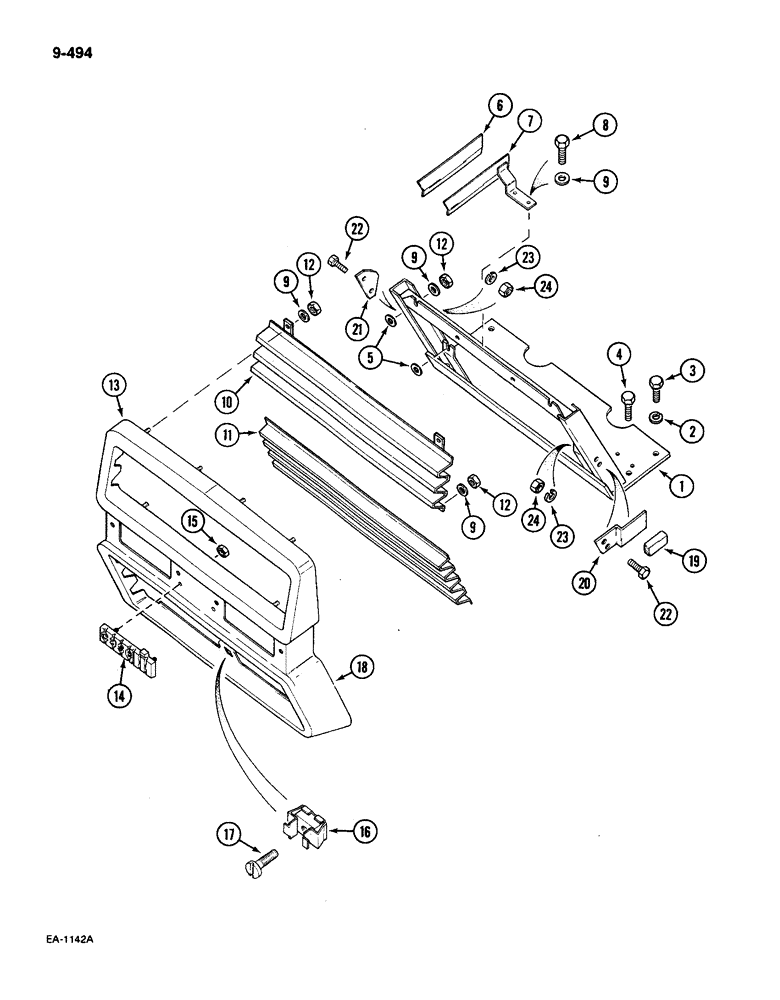

Запчасти Case IH 585 (9-494) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

94301C4

SUPPORT ASSY.

SUPPORT grille and hood (Hi-clearance/fabricated bolsters)

1шт.

1

1333015C2

SUPPORT ASSY.

SUPPORT grille and hood (4 wheel drive without cab)

1шт.

1

1333114C1

SUPPORT

grille and hood (orchard tractor)

1шт.

1

99440C4

SUPPORT ASSY.

SUPPORT grille and hood (all other versions)

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5

2шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

2шт.

4

23354R1

SET SCREW,3/8" - 16 x 1", Alloy Steel

BOLT hex, 3/8 x 1 inch (Used with 1333015C2)

2шт.

5

99854C1

SHIM

grille support

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL side panel, foam (Cut from 73228C2)

2шт.

6

73228C2

GASKET

SEAL foam, bulk length, 4 foot roll

1шт.

7

1970649C1

BRACKET

SUPPORT side seal short, right (Used with 94301C4) (Replaces 98889C1)

1шт.

7

1970647C1

BRACKET

SUPPORT side seal long, right (all other versions) (Replaces 98868C1)

1шт.

7

1970650C1

BRACKET

SUPPORT side seal short, left (Used with 94301C4) (Replaces 98895C1)

1шт.

7

1970648C1

BRACKET

SUPPORT side seal long, left (All other versions) (Replaces 98869C1)

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

18шт.

10

94283C1

SCREEN

upper grille

1шт.

11

94285C1

SCREEN

lower grille

1шт.

12

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

13

1970623C1

GRILLE

front

1шт.

14

A181523

EMBLEM CASE/IH

EMBLEM CASE I/H

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT self threading, 1/4 inch

2шт.

16

99424C1

NUT

RETAINER nut

1шт.

17

1333004C1

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 inch polyseal

1шт.

17

1970750C1

PACKAGE

KIT service, grille, Includes: Ref. 18-24, Serial Range: -21696

1шт.

18

1970623C1

GRILLE

front

1шт.

19

1333189C1

RUBBER

BLOCK rubber

1шт.

20

1970734C1

PLATE

panel support, right

1шт.

20

1970735C1

PLATE

panel support, left

1шт.

21

1970731C1

BRACKET

hood, right

1шт.

21

1970732C1

BRACKET

hood, left

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

23

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.
