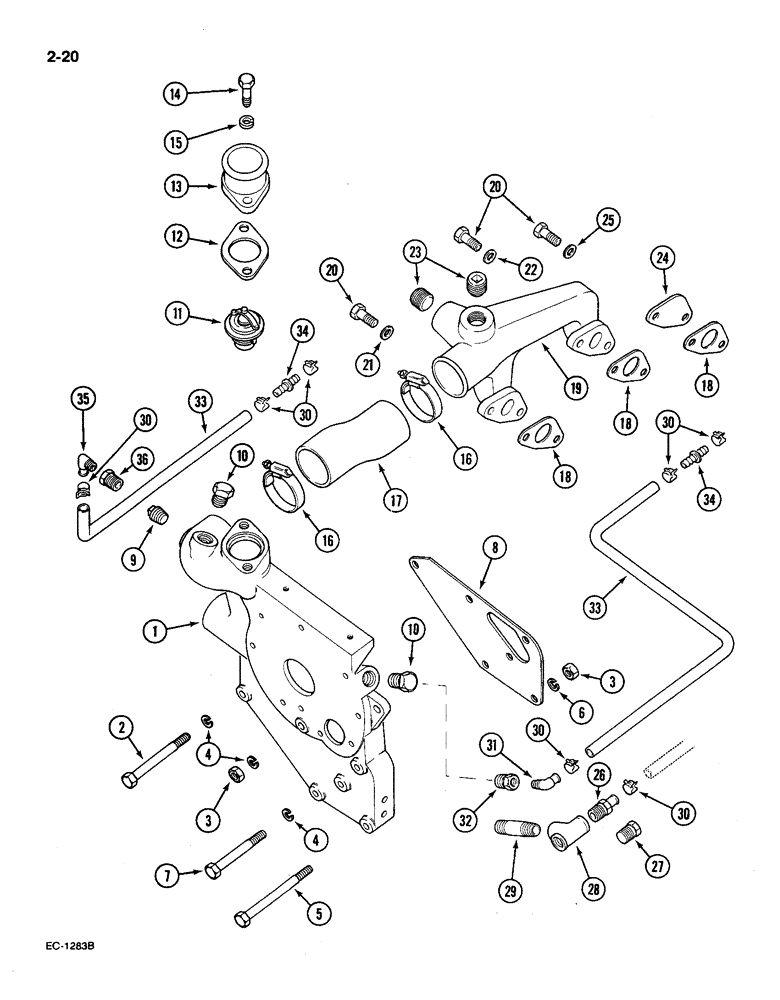

Запчасти Case IH 585 (2-20) - WATER PUMP CARRIER, COOLANT MANIFOLD AND CONNECTIONS (02) - ENGINE

1

3136678R2

COVER

CARRIER water pump

1шт.

2

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, grade 5

3шт.

3

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

5шт.

4

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

5шт.

5

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16"-18 NC x 4", grade 5

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

1шт.

7

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

8

3055999R2

GASKET

water pump carrier

1шт.

9

445686

PLUG

automotive square head, 3/8 inch NPTF (without cab)

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

hex head, 1/2 inch NPTF (tractors without cab)

1шт.

11

3228046R1

THERMOSTAT

1шт.

12

3132143R2

GASKET,1mm Thk

water outlet flange

1шт.

13

3132142R1

NO LONGER SERVICED

FLANGE water outlet

1шт.

14

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

15

3050221R1

LOCK WASHER

lock, 3/8 inch

2шт.

16

3218259R1

CLAMP,M40-60, Worm

hose

2шт.

17

3144028R2

HOSE

- Connecting 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

18

3055306R2

GASKET

manifold, water collecting

4шт.

19

3218034R1

MANIFOLD

water collecting

1шт.

20

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

3шт.

22

3136506R1

RING

packing

1шт.

23

444667

PLUG

automotive square socket, 1/2 inch NPTF

2шт.

24

3132721R1

COVER

closing (without coolant filter)

2шт.

24

3132721R1

COVER

closing (with coolant filter)

1шт.

25

103320R1

WASHER

lock, 5/16 inch

4шт.

26

1502001C1

FITTING

heater hose, brass, with coolant filter and air conditioning

1шт.

27

444630

PLUG,Hex Hd, 1/2"-14

hex head, 1/2 inch NPTF, with coolant filter and without air conditioning

1шт.

28

144085

TEE,1/2" NPT, Fem

1/2 inch pipe, with coolant filter and air conditioning

1шт.

29

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER pipe long, 1/2 NPT x 1-1/2 inch

1шт.

30

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , with coolant filter and air conditioning #24

6шт.

31

3125512R1

ELBOW

union, without coolant filter and air conditioning.

1шт.

32

444035

BUSHING

REDUCER automotive pipe, 1/2 to 3/8 inch, without coolant filter and air conditioning.

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE heater, 2019 mm (cut from 97252C1)

2шт.

33

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

Heater 15.875 mm ID x 15240 mm Bulk

1шт.

34

1301342C1

FITTING

UNION heater hose inlet fitting

2шт.

35

3125512R1

ELBOW

union

1шт.

36

444035

BUSHING

REDUCER automotive pipe, 1/2 to 3/8 inch

1шт.
