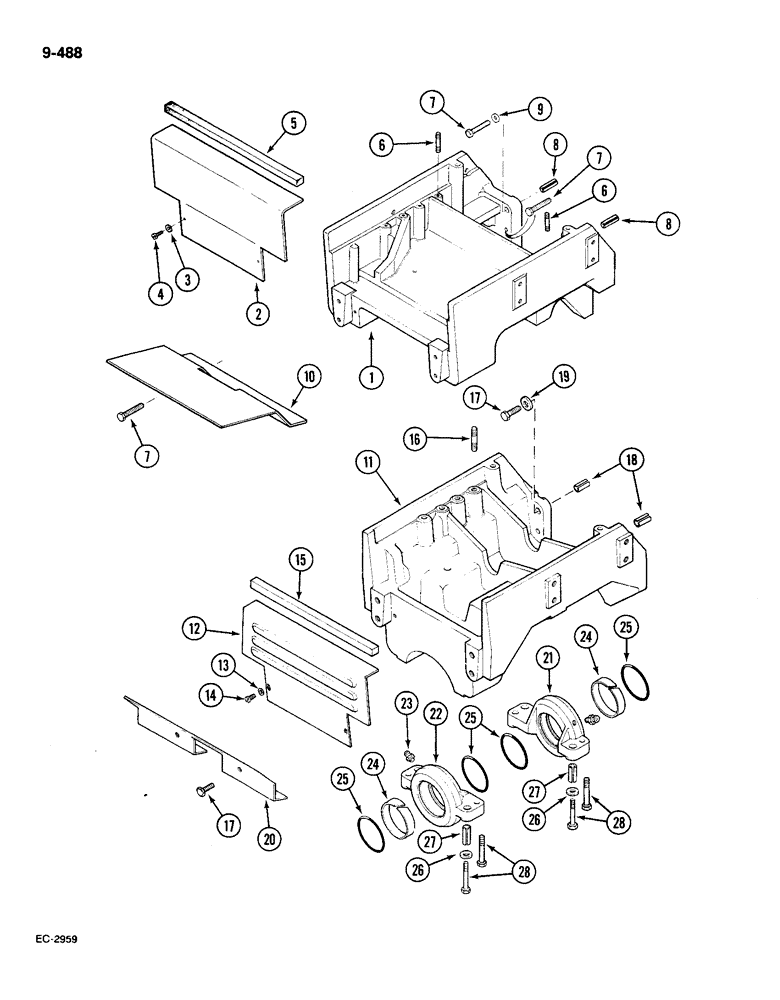

Запчасти Case IH 585 (9-488) - BOLSTERS, FRONT CAST (09) - CHASSIS/ATTACHMENTS

1

94178C2

AXLE SUPPORT

BOLSTER cast, front, standard for 2 wheel drive

1шт.

1

94179C1

SUPPORT

BOLSTER cast, front, for high clearance 2WD

1шт.

1

1333113C1

BOLSTER

cast, front (orchard tractor)

1шт.

2

94334C1

COVER

bolster, front (Replaces 94366C1)

1шт.

2

1333121C1

COVER

bolster, front (orchard tractor)

1шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3118624R1

SCREW

- hex washer head, 5/16 inch NC

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL front cover, 20.5 inch (Cut from 73212C2)

1шт.

73212C2

GASKET

SEAL foam, bulk length, 4 foot roll

1шт.

6

99688C1

STUD

3/8 inch NC x 47 mm

2шт.

7

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

8шт.

8

99499C1

PIN

spring

2шт.

9

82744C1

WASHER

hardened

2шт.

10

99512C2

PROTECTION PLATE

BAFFLE bolster, air

1шт.

10

534811R1

PROTECTION PLATE

BAFFLER bolster, air (swept back front axle)

1шт.

11

94180C1

AXLE SUPPORT

BOLSTER cast, front (with cab), 4 wheel drive

1шт.

11

94180C1

AXLE SUPPORT

BOLSTER cast, front (without cab), 4 wheel drive, Serial Range: -22746

1шт.

11

1333030C1

AXLE SUPPORT

BOLSTER front (without cab), 4 wheel drive, Start Serial: 22746

1шт.

12

94366C1

COVER

bolster, front (used with 94180C1), 4 wheel drive

1шт.

12

1333024C1

COVER

bolster, front (used with 1333030C1), 4 wheel drive

1шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 4 wheel drive 5/16"

2шт.

14

3118624R1

SCREW

- hex washer head, 5/16 inch NC, 4 wheel drive

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL front cover, 20.5 inch (Cut from seal 73212C2), 4 wheel drive

1шт.

73212C2

GASKET

SEAL foam, bulk length, 4 foot roll, 4 wheel drive

1шт.

16

99688C1

STUD

3/8 inch NC x 47 mm, 4 wheel drive

2шт.

17

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

4WD Hex, 5/8"-11 x 2 3/4", G8

8шт.

18

99499C1

PIN

spring, 4 wheel drive

2шт.

19

82744C1

WASHER

hardened, 4 wheel drive

2шт.

20

99513C1

BAFFLE

bolster, air, 4 wheel drive

1шт.

21

82014C3

BEARING

BRACKET axle, rear, 4 wheel drive

1шт.

22

82015C3

BEARING

BRACKET axle, front, 4 wheel drive

1шт.

23

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, , 4WD M10 x 1

2шт.

24

82011C1

BUSHING

4 wheel drive

2шт.

25

82091C1

O-RING,5mm Thk x 120mm ID, 88 Duro

4 wheel drive

2шт.

25

90219C1

O-RING,5mm Thk x 120mm ID, 88 Duro

special, 4 wheel drive

2шт.

26

3141764R1

WASHER

hardened, 17.5 x 32 x 6 mm, 4 wheel drive

8шт.

27

905679R1

LOCK PIN,M21 x 36, Slotted

PIN slotted spring, 21 x 36 mm, 4 wheel drive

4шт.

28

905636R1

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

4 wheel drive Hex, M16 x 80, 10.9

8шт.
