Запчасти Case IH 585 (9-486) - FRONT END WEIGHTS AND BRACKET (09) - CHASSIS/ATTACHMENTS

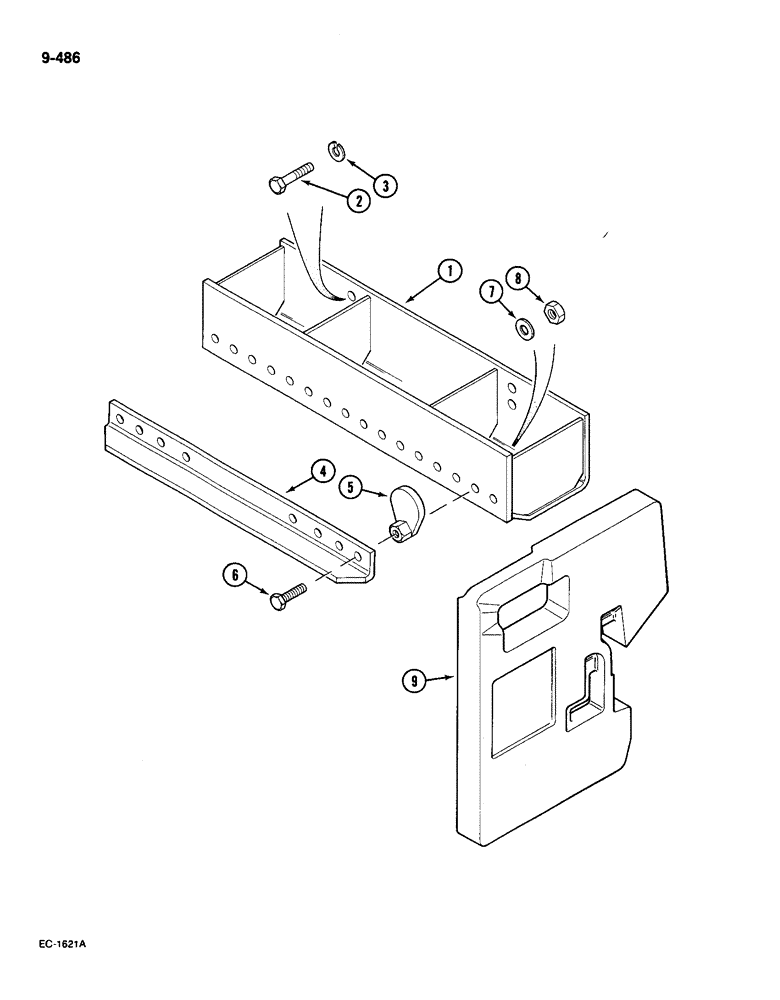

Схема запчастей Case IH 585 - (9-486) - FRONT END WEIGHTS AND BRACKET (09) - CHASSIS/ATTACHMENTS
5
7
8
4
3
6
1
2
9

Артикул

Название

Примечание

Количество

1

99525C1

BRACKET

front weight mounting, complete

1шт.

2

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

hex, 3/4 NC x 2 inch, grade 8

4шт.

3

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

536042R2

BAR

front weight retaining

1шт.

5

74202C1

CAM

weight locking

2шт.

6

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch

2шт.

7

21793R1

WASHER

flat, 0.656 x 1.250 x 0.164 inch

2шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5

2шт.

9

NSS

NOT SOLD SEPARAT

WEIGHT 100 lb, use 2 to 7 and required (weights furnished as machine attachment only)

1шт.

Выбрано товаров: 9
