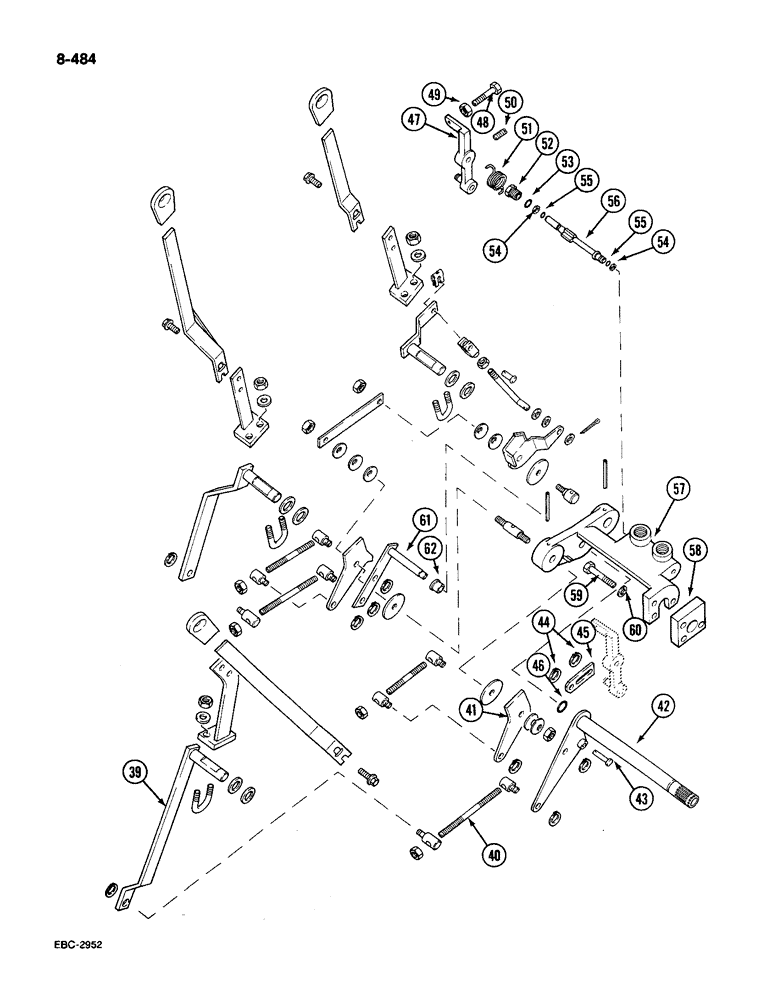

Запчасти Case IH 585 (8-484) - DRAFT CONTROL LEVERS, WITH CAB, CONTD (08) - HYDRAULICS

39

3129738R1

SHAFT ASSY.

SHAFT position control

1шт.

40

1500635C1

STUD

hitch link

1шт.

41

3118010R1

LEVER

position control

1шт.

42

1500628C1

SHAFT ASSY.

SHAFT position control

1шт.

43

527923R1

PIN

link arm

1шт.

44

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

2шт.

45

527926R1

LINK

flow control over-ride

1шт.

46

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 inch, class 5

1шт.

47

529353R1

ARM ASSY.

ARM flow control

1шт.

48

1502037C1

SET SCREW

SCREW hex. set, 1/4 NC x 1-1/2 inch

1шт.

49

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

50

65461C1

SET SCREW

SCREW with nylon patch insert, 1/4 inch NF

1шт.

51

529352R1

SPRING

return

1шт.

52

529356R1

PLUG

variable flow control valve

1шт.

53

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

54

529355R1

WASHER

back-up

2шт.

55

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 inch, class 5

2шт.

56

529351R1

SPOOL

variable flow control valve

1шт.

57

529349R3

SUPPORT

hitch control shaft

1шт.

58

3129761R1

SPACER

1шт.

59

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, grade 5

3шт.

60

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

61

1500632C1

SHAFT ASSY.

SHAFT load control

1шт.

62

374940R1

NYLON BEARING

BEARING control lever shaft

2шт.
