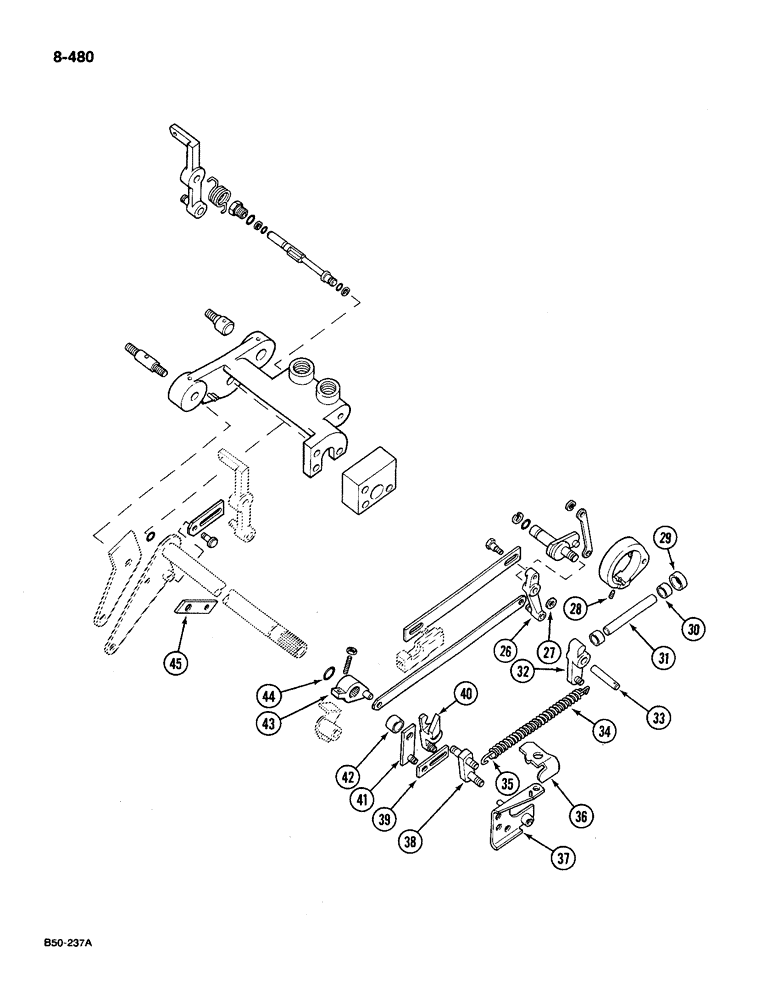

Запчасти Case IH 585 (8-480) - DRAFT CONTROL LINKAGE, WITH CAB, CONTD (08) - HYDRAULICS

26

400014R1

LEVER ASSY.

LEVER follow up walking beam

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

27

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

1шт.

28

377792R1

SET SCREW

SCREW set, rockshaft hub

1шт.

29

376022R91

OIL SEAL

SEAL oil, sensing shaft

1шт.

29

530092R91

OIL SEAL

SEAL oil, sensing shaft, Serial Range: (Optional-376022R91)

1шт.

30

273279R91

BUSHING

BEARING sensing shaft

2шт.

31

400020R1

ROD

draft control

1шт.

32

400021R1

LINK ASSY.

LINK draft control

1шт.

33

400038R1

PIN

sensing lever

1шт.

20092R1

PIN,3/16" x 1 3/8", Coiled

1шт.

34

400025R1

SPRING

sensing beam

1шт.

35

400024R2

BAR

sensing beam

1шт.

36

400033R1

LEVER

hydraulic switch

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- hex, 5/16 NC x 5/8 inch, grade 5

1шт.

532467R1

WASHER

safety switch

1шт.

532468R1

SPACER

WASHER safety switch

1шт.

37

400026R2

SUPPORT

BRACKET switch lever

1шт.

38

400039R1

PLATE ASSY.

PLATE eccentric

1шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

39

400044R1

LINK

, Serial Range: trigger-quadrant

1шт.

40

400042R2

LEVER ASSY.

LEVER draft control trigger

1шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

41

534728R1

LEVER

draft sensitivity control

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

42

527927R1

SPACER

load control shaft

1шт.

43

400017R1

LEVER ASSY.

LEVER slow motion actuating

1шт.

303004R1

SNAP RING,#78, Ext

1шт.

44

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 inch, class 5

1шт.

45

537600R1

PLATE

inner retaining

1шт.
