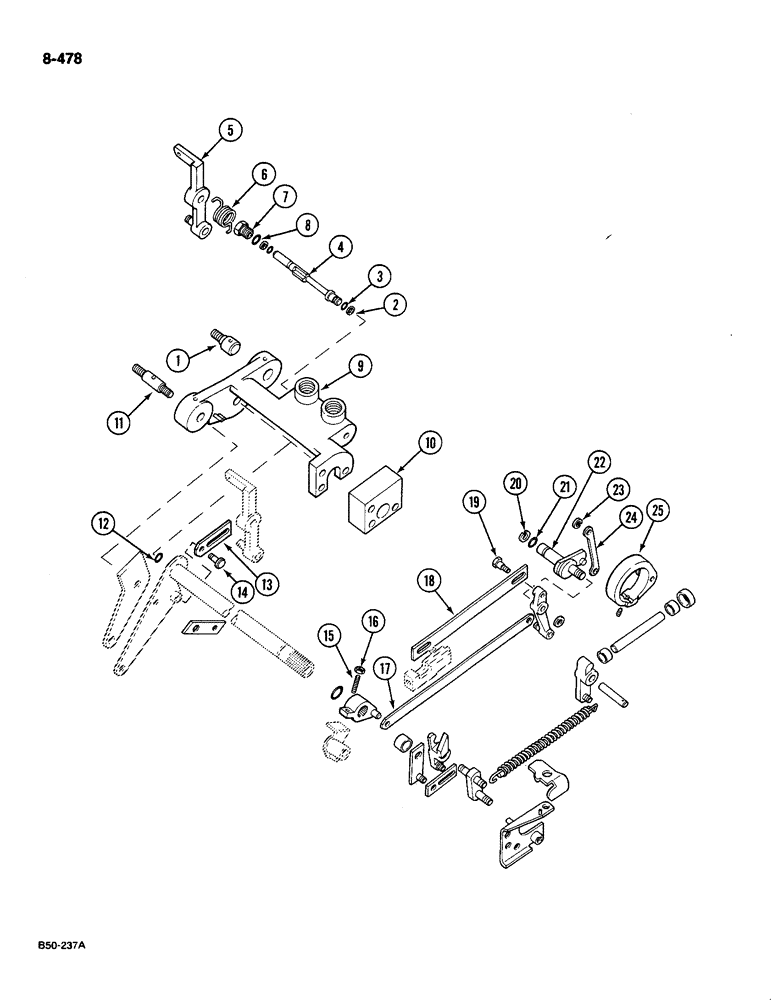

Запчасти Case IH 585 (8-478) - DRAFT CONTROL LINKAGE, WITH CAB (08) - HYDRAULICS

1

527919R1

BOLT

BOLT - Flow lever pivot

1шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

1шт.

2

529355R1

WASHER

back-up

2шт.

3

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 inch, class 5

2шт.

4

529351R1

SPOOL

variable flow control valve

1шт.

5

529353R1

ARM ASSY.

ARM flow control

1шт.

1502037C1

SET SCREW

SCREW hex. set, 1/4 NC x 1-1/2 inch

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

65461C1

SET SCREW

SCREW 1/4 inch NF, with nylon patch insert

1шт.

6

529352R1

SPRING

return

1шт.

7

529356R1

PLUG

variable flow control valve

1шт.

8

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

9

529349R3

SUPPORT

hitch control shaft

1шт.

10

3129761R1

SPACER

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, grade 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

12

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 inch, class 5

1шт.

13

527926R1

LINK

flow control over-ride

1шт.

14

527923R1

PIN

link arm

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

1шт.

15

1502037C1

SET SCREW

SCREW hex. set, 1/4 NC x 1-1/2 inch

1шт.

16

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

17

400016R1

BAR

walking beam to quadrant link

1шт.

18

400019R1

LINK

walking, Serial Range: beam-valve

1шт.

Q3817

WASHER

flat, 0.344 x 0.656 x 0.021 inch

1шт.

19

376041R1

SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet

Shoulder

1шт.

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

971043R1

SNAP RING,#50, Ext

1шт.

21

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 inch, class 5

1шт.

22

400036R1

ECCENTRIC ASSY.

ECCENTRIC position control

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

1шт.

23

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

24

400008R1

LINK

position control walking

1шт.

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

1шт.

25

533340R1

HUB ASSY.

HUB rockshaft actuating

1шт.
