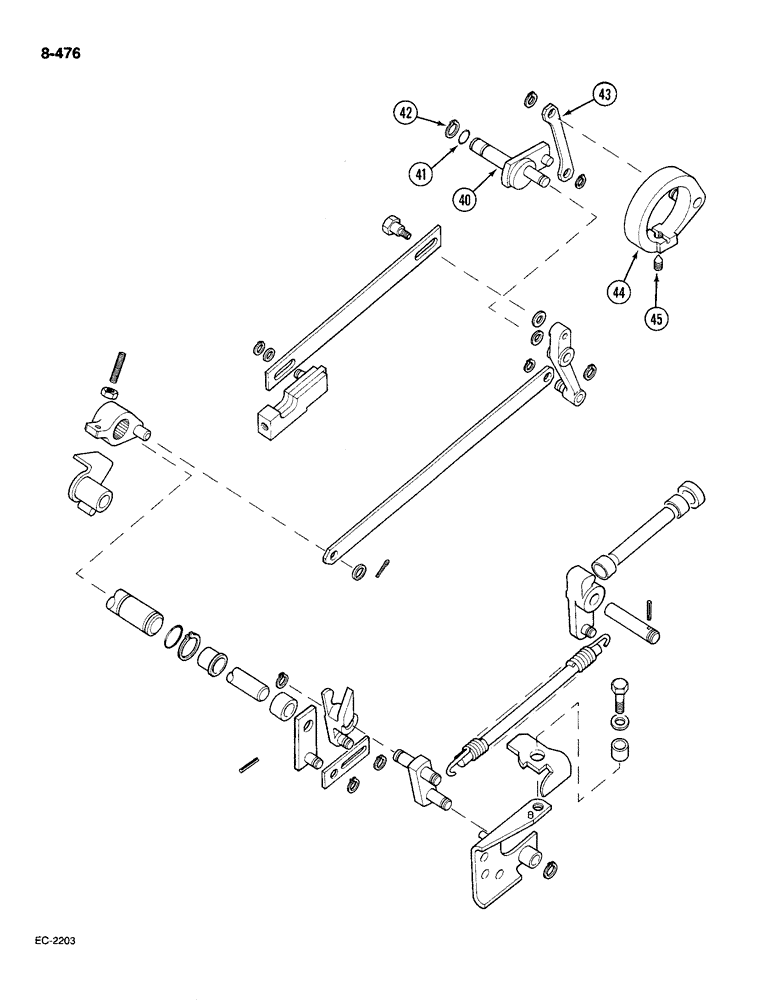

(8-476) - DRAFT CONTROL LINKAGE IN REAR FRAME, TRACTOR WITHOUT CAB, CONTD

Запчасти Case IH 585 (8-476) - DRAFT CONTROL LINKAGE IN REAR FRAME, TRACTOR WITHOUT CAB, CONTD (08) - HYDRAULICS

Схема запчастей Case IH 585 - (8-476) - DRAFT CONTROL LINKAGE IN REAR FRAME, TRACTOR WITHOUT CAB, CONTD (08) - HYDRAULICS
40
41
44
42
43
45
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

40

400036R1

ECCENTRIC ASSY.

ECCENTRIC position control

1шт.

41

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 inch, class 5

1шт.

42

971043R1

SNAP RING,#50, Ext

1шт.

43

400008R1

LINK

position control walking

1шт.

44

533340R1

HUB ASSY.

HUB rockshaft actuating

1шт.

45

377792R1

SET SCREW

SCREW set, rockshaft hub

1шт.
