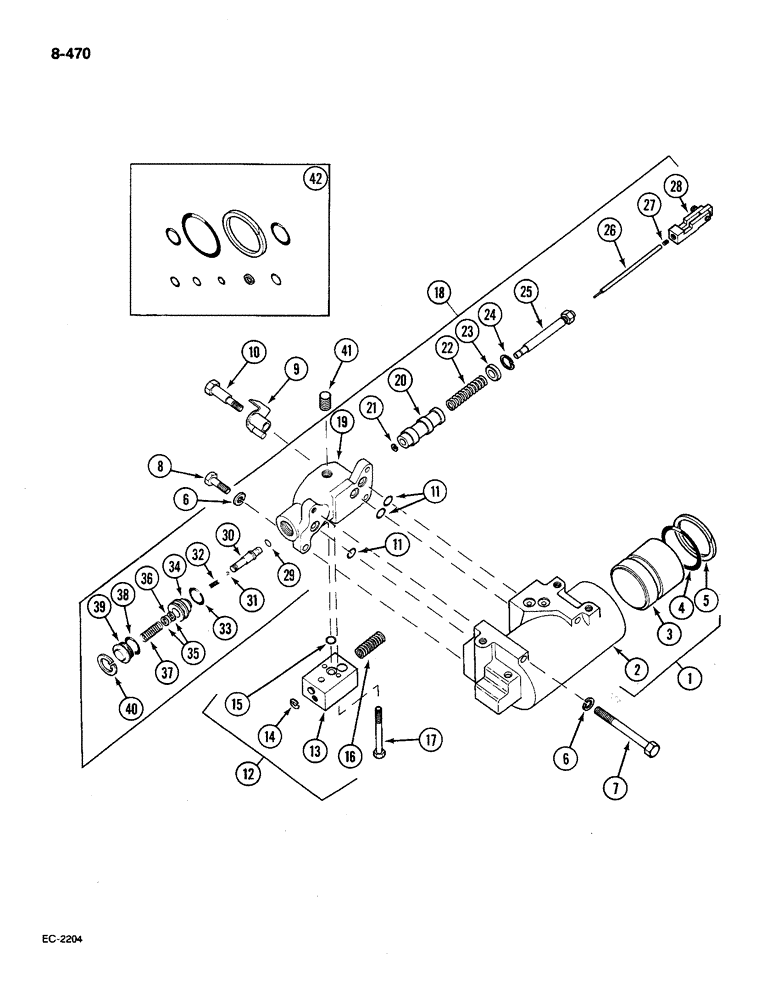

Запчасти Case IH 585 (8-470) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

CYLINDER draft control, with valve assembly

1шт.

1

399885R21

CYLINDER ASSY.

CYLINDER draft control, Includes: Ref. 2-5 and 2-41

1шт.

REF 1, PER PRINT,THE ASSY CONTAINS ONLY ITEMS 2 -3-4 AND 5.THIS IS A CATLAOG ERROR.

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER draft control

1шт.

3

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

PISTON draft control cylinder

1шт.

4

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 inch, class 6

1шт.

Part of P/N 404810R91 gasket kit

1шт.

5

375936R1

BACK-UP RING

WASHER piston, O-ring back-up

1шт.

Part of P/N 404810R91 gasket kit

1шт.

6

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch, grade 5

2шт.

8

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

1шт.

9

399889R1

ARM ASSY.

ARM draft retarding

1шт.

10

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

- Retarding arm shoulder

1шт.

11

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6

3шт.

Part of P/N 404810R91 gasket kit

1шт.

12

60651C91

VALVE

action control, Includes: Ref. 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

392320R1

SNAP RING,#31, Ext, E-Type

Ring, Retaining, #31, Ext, E-Type

1шт.

15

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 inch, class 6

1шт.

16

547499R1

SPRING

spool return

1шт.

Part of P/N 404810R91 gasket kit

1шт.

17

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

18

399893R92

VALVE

draft control, Includes: Ref. 19-40

1шт.

19

399894R1

BODY

draft control valve, with spool, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

21

376771R1

RING, SNAP

RING main valve tube retaining

1шт.

22

395005R2

SPRING

main valve

1шт.

23

376759R1

RETAINER

main valve spring

1шт.

24

303322R1

SNAP RING,1.00", Int, #100

- Retaining, 1.111 inch 1.00", Int, #100

1шт.

25

376756R12

HYD CYL SLEEVE

TUBE main valve actuating

1шт.

26

376763R1

ROD

drop valve actuating

1шт.

27

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

SCREW drop valve adjusting

1шт.

28

527617R1

ARM ASSY.

ARM main valve

1шт.

29

406183R1

O-RING,0.07" Thk x 0.301" ID, -11, 80 Duro

5/16 x 7/16 x 1/16 inch

1шт.

Part of P/N 404810R91 gasket kit

1шт.

30

392041R2

VALVE

drop valve adjusting

1шт.

31

17006R1

BALL

steel, 3/16 inch diameter

1шт.

32

376765R1

SPRING

pilot valve

1шт.

33

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1 x 1-1/4 x 1/8 inch

1шт.

Part of P/N 404810R91 gasket kit

1шт.

34

376766R1

VALVE POPPET

VALVE drop poppet

1шт.

35

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve inner O-ring

2шт.

Part of P/N 404810R91 gasket kit

1шт.

36

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

3/8 x 1/2 x 1/16 inch

1шт.

Part of P/N 404810R91 gasket kit

1шт.

37

376768R1

SPRING

drop poppet valve

1шт.

38

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

1шт.

Part of P/N 404810R91 gasket kit

1шт.

39

376770R1

PLUG

drop poppet valve

1шт.

40

58102R1

SNAP RING,1.312", Int, #131

Drop valve 1.312", Int, #131

1шт.

41

444697

PLUG,Hex Soc, 3/8"-18

hex socket, 3/8 inch NPTF (when used)

1шт.

42

404810R91

GASKET KIT

KIT O-ring service, Includes: Ref. No. 4, 5, 11, 16, 29, 33, 35, 36, 38

1шт.
