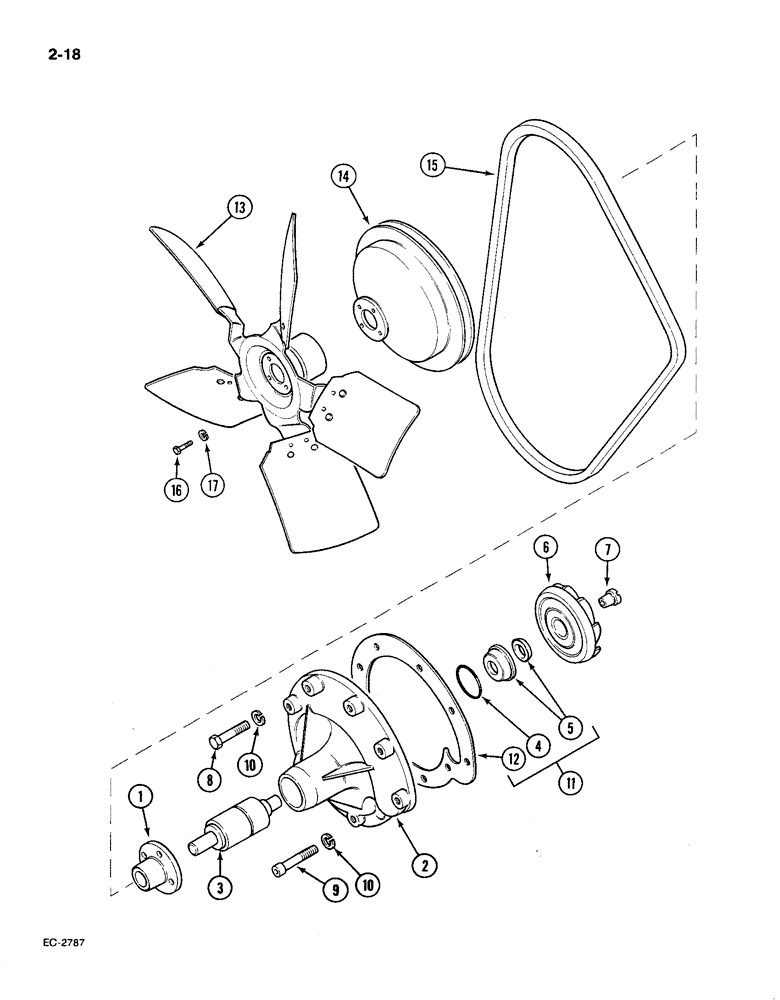

Запчасти Case IH 585 (2-18) - WATER PUMP AND FAN (02) - ENGINE

3136053R92

PUMP, WATER

PUMP water, Includes: Ref. 1-7

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Remanufactured, WATER PUMP

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

1

3132146R1

HUB

HUB pulley

1шт.

1

3132148R1

HUB

HUB pulley, Serial Range: (optional-3132146R1)

1шт.

2

3132677R41

BODY

BODY pump, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL water pump

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER water pump

1шт.

6

3055211R2

IMPELLER

IMPELLER pump

1шт.

7

3055308R1

PLUG

PLUG closing

1шт.

8

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

7шт.

9

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

BOLT hex socket head, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

8шт.

11

3055285R93

GASKET KIT

KIT reconditioning, water pump, Includes: Ref. 4, 5 and 12

1шт.

12

3055177R1

GASKET

GASKET water pump

1шт.

13

1275810C1

FAN

FAN engine cooling

1шт.

14

401124R2

PULLEY

PULLEY water pump

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan

1шт.

15

1607227C1

V-BELT,62.50" L

Fan, with Sims Cab and 75 Amp Alternator

1шт.

16

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

BOLT - hex, 1/4 NF x 11/16 inch, grade 5

4шт.

17

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
