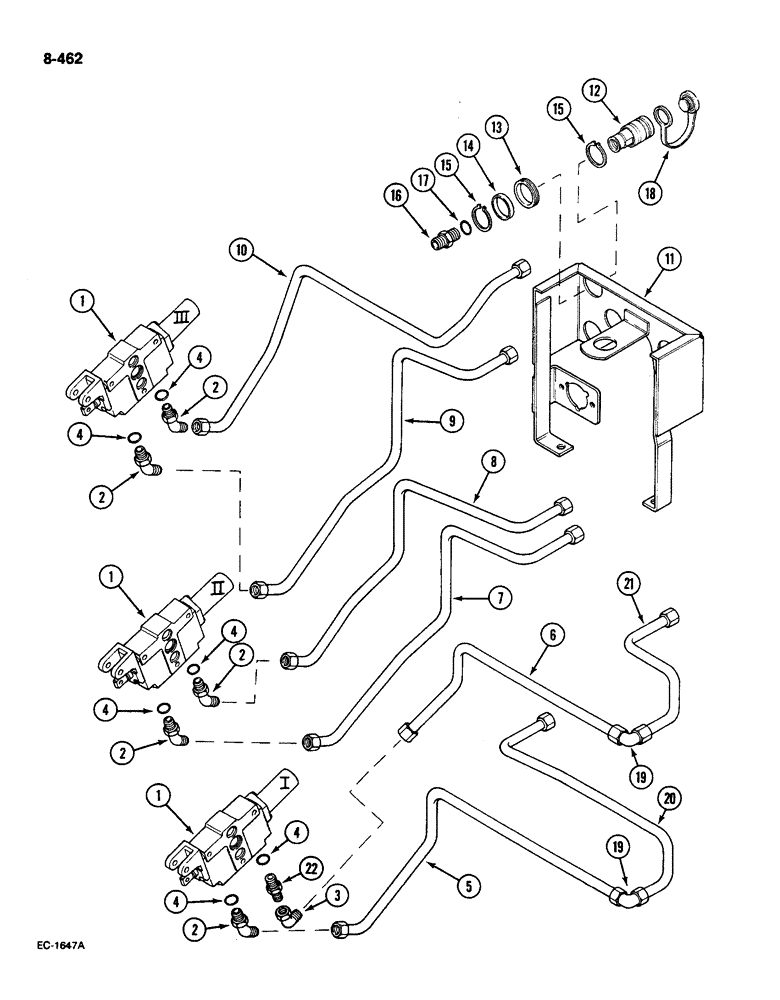

Запчасти Case IH 585 (8-462) - AUXILIARY VALVES COUPLINGS AND PIPES, WITH CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve, see Figure 8-452

1шт.

1

1287384C91

VALVE

double acting, with check valve, see Figure 8-452

1шт.

2

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22

1шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, swivel, 5/8 inch OD tube

1шт.

3

86703C1

ELBOW

90 degree, 5/8 inch OD tube x M22

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

1шт.

5

99637C1

PIPE ASSY.

TUBE 1st bank front, Serial Range: port-coupling

1шт.

6

99639C3

TUBE

1st bank rear, Serial Range: port-coupling

1шт.

7

99640C1

PIPE

TUBE 2nd bank front, Serial Range: port-coupling

1шт.

8

99641C1

PIPE ASSY.

TUBE 2nd bank rear, Serial Range: port-coupling

1шт.

9

99635C1

PIPE ASSY.

TUBE 3rd bank front, Serial Range: port-coupling

1шт.

10

99643C1

PIPE ASSY.

TUBE 3rd bank rear, Serial Range: port-coupling

1шт.

11

99728C1

SUPPORT

couplings

1шт.

12

A177478

COUPLING, QUICK, FEM

COUPLING self-sealing, female

1шт.

13

A139805

RETAINER

coupling

1шт.

14

94177C1

SPACER

coupling

1шт.

15

A137976

SNAP RING,#150, 1.408", Ext

RING snap

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

1шт.

18

K950297

PLUG

dust, coupling

1шт.

19

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

90 degree, 5/8 inch OD tube

2шт.

20

1500195C1

HYD TUBE,0.625" OD, 438, 186 mm Length

TUBE coupling to 1st bank front port

1шт.

21

1500198C1

PIPE

TUBE coupling to 1st bank rear port

1шт.

22

86165C1

FITTING

UNION straight, 5/8 inch OD tube x M22

1шт.
