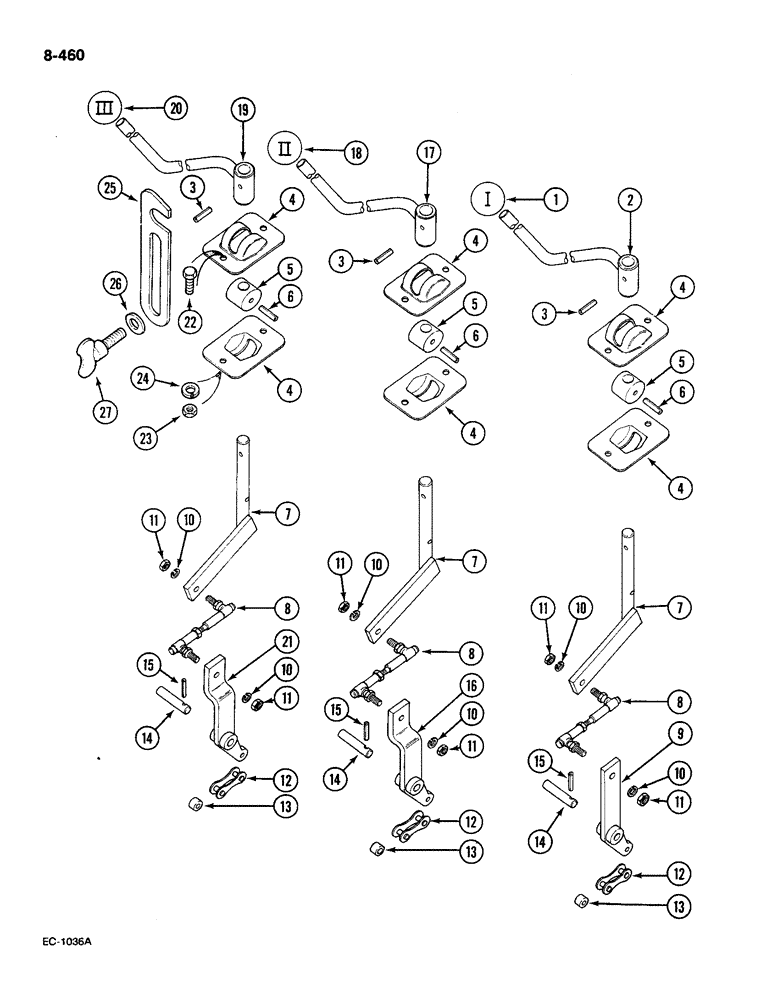

Запчасти Case IH 585 (8-460) - AUXILIARY VALVE CONTROLS, BOSCH, WITH CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

3123663R1

BUTTON

KNOB ball (black)

1шт.

2

1500160C1

LEVER ASSY.

LEVER 1st bank valve

1шт.

3

1500163C1

SPLIT PIN/SAFETY PIN

PIN coiled spring, 5 x 22 mm

1шт.

4

3226334R2

CLAMP

CLAMP

1шт.

5

3229389R1

BUSHING

PAD

1шт.

6

1500163C1

SPLIT PIN/SAFETY PIN

PIN coiled spring, 5 x 22 mm

1шт.

7

1500168C1

LEVER ASSY.

LEVER bellcrank

1шт.

8

80333C91

JOINT

ball, M6

1шт.

9

94238C1

LEVER

bellcrank, No. 1 auxiliary valve

1шт.

10

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

11

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

12

1310D

LINK

connecting, No. 50

1шт.

13

94274C1

NYLON BEARING,5.15mm ID x 8.04mm OD x 8mm L

BEARING auxiliary valve spool link

1шт.

14

99609C1

PIN

straight, 3/8 x 1.45 inch

1шт.

15

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

16

94239C1

LEVER

bellcrank, No. 2 auxiliary valve

1шт.

17

1500164C1

LEVER

2nd bank valve

1шт.

18

99875C1

BUTTON

KNOB ball (green)

1шт.

19

1500166C1

LEVER ASSY.

LEVER 3rd bank valve

1шт.

20

1500159C1

KNOB

ball (blue)

1шт.

21

94240C1

LEVER

bellcrank, No. 3 auxiliary valve

1шт.

22

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

1шт.

23

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

24

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

25

99434C1

PLATE

lockout, auxiliary valve lever

1шт.

26

120388

flat, 0.438 x 1.00 x 0.064 inch

1шт.

27

99972C1

SCREW,3/8" - 16 x 1 3/4"

wing, adjusting

1шт.
