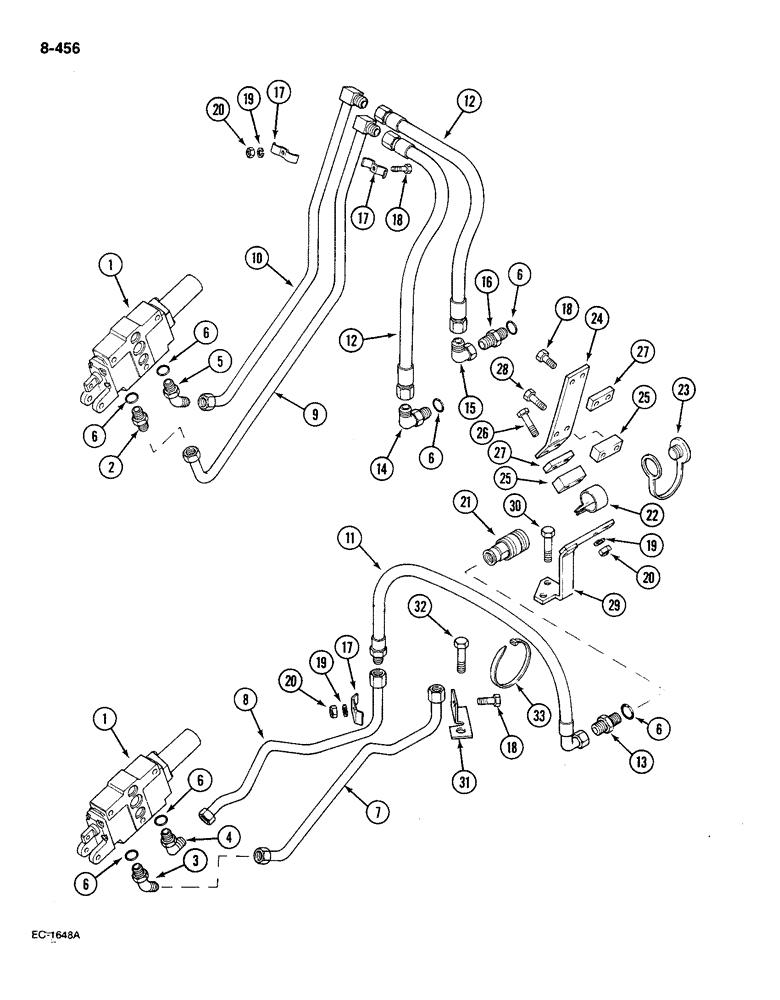

Запчасти Case IH 585 (8-456) - AUXILIARY VALVE COUPLINGS AND PIPES, WITHOUT CAB, 1ST AND 2ND BANK, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve (see Figure 8-452)

1шт.

1

1287384C91

VALVE

double acting, with check valve (see Figure 8-452)

1шт.

2

86165C1

FITTING

UNION straight, 5/8 inch OD tube x M22 (2nd bank)

1шт.

3

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22 (1st bank)

1шт.

4

86703C1

ELBOW

90 degree, 5/8 inch OD tube x M22 (1st bank)

1шт.

5

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22 (2nd bank)

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

1шт.

7

99649C1

TUBE ASSY.

TUBE lower, 1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

TUBE raise, 1st bank rear outlet

1шт.

9

99651C1

TUBE ASSY.

TUBE raise, 2nd bank front outlet

1шт.

10

99650C1

TUBE ASSY.

TUBE lower, 2nd bank rear outlet

1шт.

11

1975234C1

HOSE

1st bank outlet to coupling (Replaces 535302R1)

2шт.

12

3129556R1

HOSE

rear outlet

2шт.

13

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

REDUCER, 5/8 to 1/2 inch OD tube (Used with 1975234C1)

2шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree, adjustable, 5/8 inch OD tube (2nd bank)

1шт.

15

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, swivel, 5/8 inch OD tube (2nd bank)

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube (2nd bank)

1шт.

17

535301R1

CLAMP

rear outlet tube

1шт.

18

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

120376

NUT,5/16"-18, G5

1шт.

21

1282338C91

COUPLING, QUICK, FEM

COUPLING self-sealing, female

1шт.

22

3114106R1

CLAMP

coupling

1шт.

23

373220R1

PLUG

dust, breakaway coupling

1шт.

24

3129558R1

PLATE

coupling (2nd bank)

1шт.

25

3129557R1

SPACER

coupling (2nd bank)

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch, grade 5 (2nd bank)

2шт.

26

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, grade 5 (1st bank only fit)

2шт.

27

1500503C1

SPACER

coupling (2nd bank)

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex, 5/16 NC x 1-3/4 inch, grade 5 (2nd bank)

2шт.

29

535298R1

SUPPORT

BRACKET mounting, rear manifold

1шт.

30

179890

LATCH

hex, 1/2 NC x 2-1/4 inch, grade 5

2шт.

31

535300R1

BRACKET

rear outlet tubes

1шт.

32

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex, 1/2 NC x 2 inch, grade 5

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.
