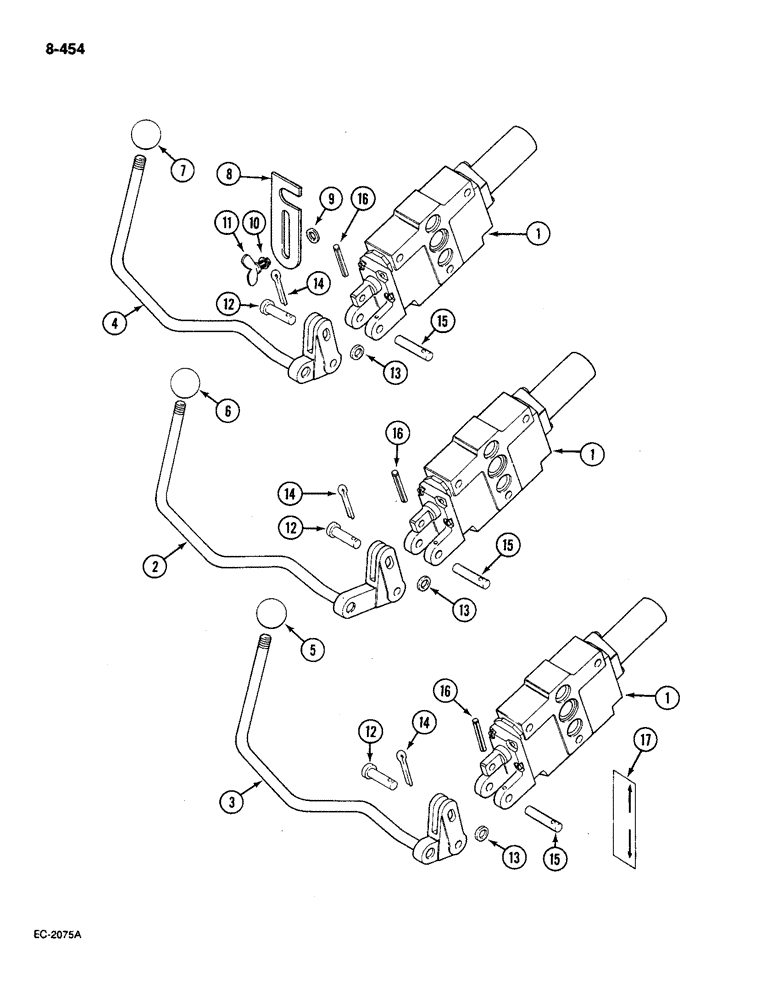

Запчасти Case IH 585 (8-454) - AUXILIARY VALVE CONTROLS, BOSCH, WITHOUT CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve (see Figure 8-452)

1шт.

1

1287384C91

VALVE

double acting, with check valve (see Figure 8-452)

1шт.

2

94136C2

LEVER ASSY.

LEVER complete, 2nd bank auxiliary valve

1шт.

3

94134C2

LEVER ASSY.

LEVER complete, 1st bank auxiliary valve

1шт.

4

94158C2

LEVER ASSY.

LEVER complete, 3rd bank auxiliary valve

1шт.

5

3123087R1

BUTTON

KNOB ball (black)

1шт.

6

99876C1

BUTTON

KNOB ball (green)

1шт.

7

99877C1

BUTTON

KNOB ball (blue)

1шт.

8

3125862R1

PLATE

lockout, auxiliary valve lever

1шт.

9

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

1шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

12

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, 5/16" x 1 3/16"

1шт.

13

31130R1

WASHER,M8 x 17.5 x 2, HT

plain, 8 mm

1шт.

14

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

99609C1

PIN

straight, 3/8 x 1.45 inch

1шт.

16

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

17

537080R2

PRODUCT GRAPHIC

DECAL control lever, English

1шт.
