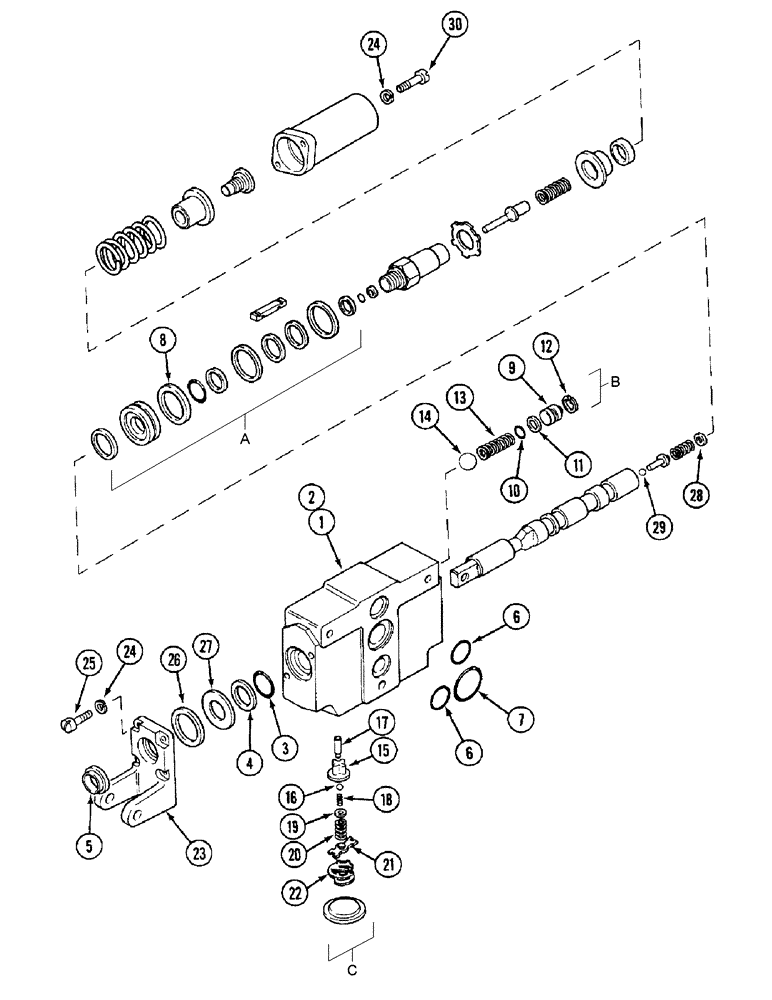

Запчасти Case IH 585 (8-452) - AUXILIARY VALVE, BOSCH, P.I.N. 18001 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1287379C91
VALVE
double acting, without mechanical check valve
1шт.
Parts not itemized are not available, order complete valve
1шт.
2
1287384C91
VALVE
double acting, with mechanical check valve
1шт.
Parts not itemized are not available, order complete valve
1шт.
a
1328394C1
SEAL KIT
KIT service, seals, Inc. 1-8
1шт.
1
NSS
NOT SOLD SEPARAT
RING, Scraper
2шт.
2
NSS
NOT SOLD SEPARAT
RING, Supporting
2шт.
3
NSS
NOT SOLD SEPARAT
O-RING, 18 x 3 mm
1шт.
4
NSS
NOT SOLD SEPARAT
RING back up
1шт.
5
NSS
NOT SOLD SEPARAT
WIPER rod
1шт.
6
1328382C1
O-RING,2.5mm Thk x 18mm ID
18 x 2.5 mm
2шт.
7
1328393C1
O-RING,2.5mm Thk x 26mm ID
26 x 2.5 mm
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL flat
1шт.
b
1958016C1
REPAIR KIT
KIT service, hydraulic check valve, Inc. 9-14
1шт.
9
NSS
NOT SOLD SEPARAT
PLUG
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING, 11 x 2 mm
1шт.
11
NSS
NOT SOLD SEPARAT
RING back up
1шт.
12
NSS
NOT SOLD SEPARAT
RING retaining
1шт.
13
NSS
NOT SOLD SEPARAT
SPRING compression
1шт.
14
NSS
NOT SOLD SEPARAT
BALL
1шт.
c
1958017C1
PACKAGE, REPAIR
KIT repair, mechanical check valve, Inc. 15-22
1шт.
15
NSS
NOT SOLD SEPARAT
CONE valve
1шт.
16
NSS
NOT SOLD SEPARAT
BALL
1шт.
17
NSS
NOT SOLD SEPARAT
PIN adjusting
1шт.
18
NSS
NOT SOLD SEPARAT
SPRING compression
1шт.
19
NSS
NOT SOLD SEPARAT
SHIM
1шт.
20
NSS
NOT SOLD SEPARAT
SPRING compression
1шт.
21
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
22
NSS
NOT SOLD SEPARAT
RING retaining
1шт.
23
1958026C1
BRACKET
auxiliary valve
1шт.
24
933833R1
LOCK WASHER,M6
WASHER lock, M6
4шт.
25
1958025C1
SCREW
fillister, M6 x 12
2шт.
26
122964A1
WASHER
main spool
1шт.
27
122963A1
BACK-UP RING
RING, back up
1шт.
28
1328389C1
SHIM
0.3 mm
1шт.
28
1328390C1
SHIM
0.4 mm
1шт.
28
1328388C1
SHIM
0.5 mm
1шт.
28
1328391C1
SHIM KIT
SHIM, 0.8 mm
1шт.
29
511-1040
BALL,4mm Dia
1шт.
30
864-6016
HEX SOC SCREW,M6 x 16mm, Cl 8.8
SCREW, Hex Soc Hd, M6 x 16, 8.8
2шт.
Выбрано товаров: 40
