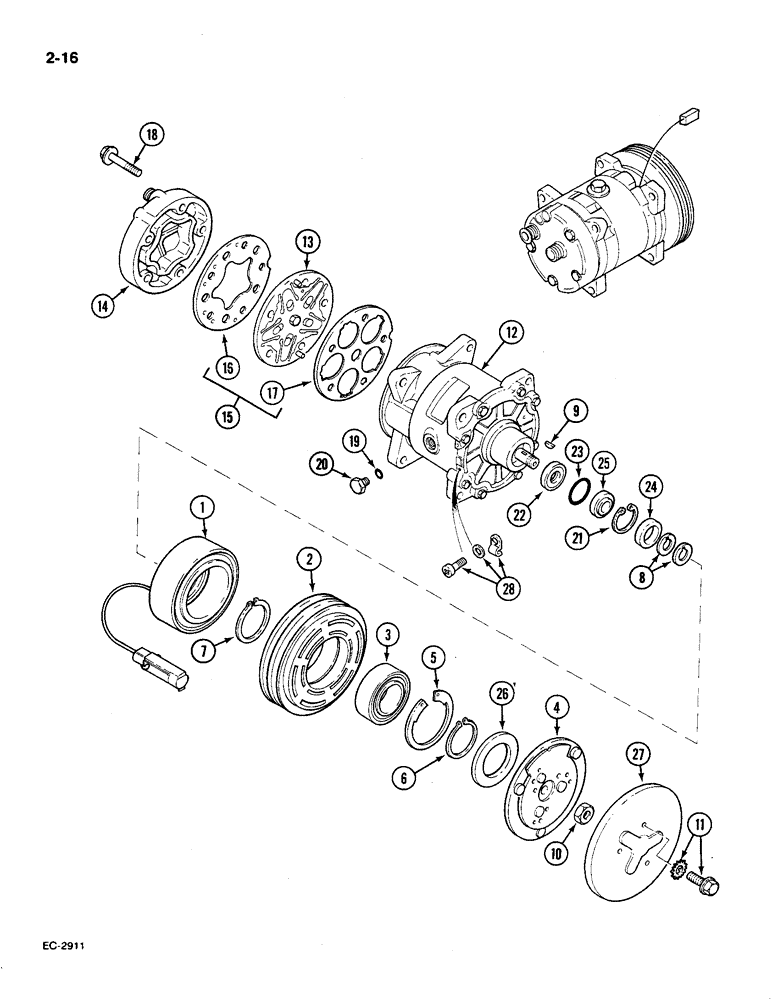

Запчасти Case IH 585 (2-16) - AIR CONDITIONING, COMPRESSOR, FREON, SANKYO-SANDEN SD508 (02) - ENGINE

97204C1

COMPRESSOR

freon, Includes: P/N 83935C1 and Ref. 1-28

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

83935C1

CLUTCH

compressor, complete, Includes: Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

COIL field, 12 volt

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY drive, two groove, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

service, clutch, Includes: Ref. 6-11

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

9

A49671

KEY

shaft, compressor

1шт.

10

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK compressor

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

14

1958959C1

COVER

HEAD cylinder, Includes: Ref. 15, 16 and 17

1шт.

15

A49668

GASKET KIT

KIT service, valve plate, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET cylinder head

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET cylinder

1шт.

18

A49669

SCREW,Cylinder

BOLT hex, flanged head

5шт.

19

A49666

O-RING

1шт.

20

A49667

PLUG

oil filler

1шт.

A49665

SEAL KIT

KIT service, compressor seals, Includes: Ref. 21-24

1шт.

21

A49664

CIRCLIP

RING retaining

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

24

NSS

NOT SOLD SEPARAT

RING felt

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

26

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER dust, bearing

1шт.

27

1958961C1

COVER

dust, clutch

1шт.

28

NSS

NOT SOLD SEPARAT

CLAMP lead wire

1шт.
