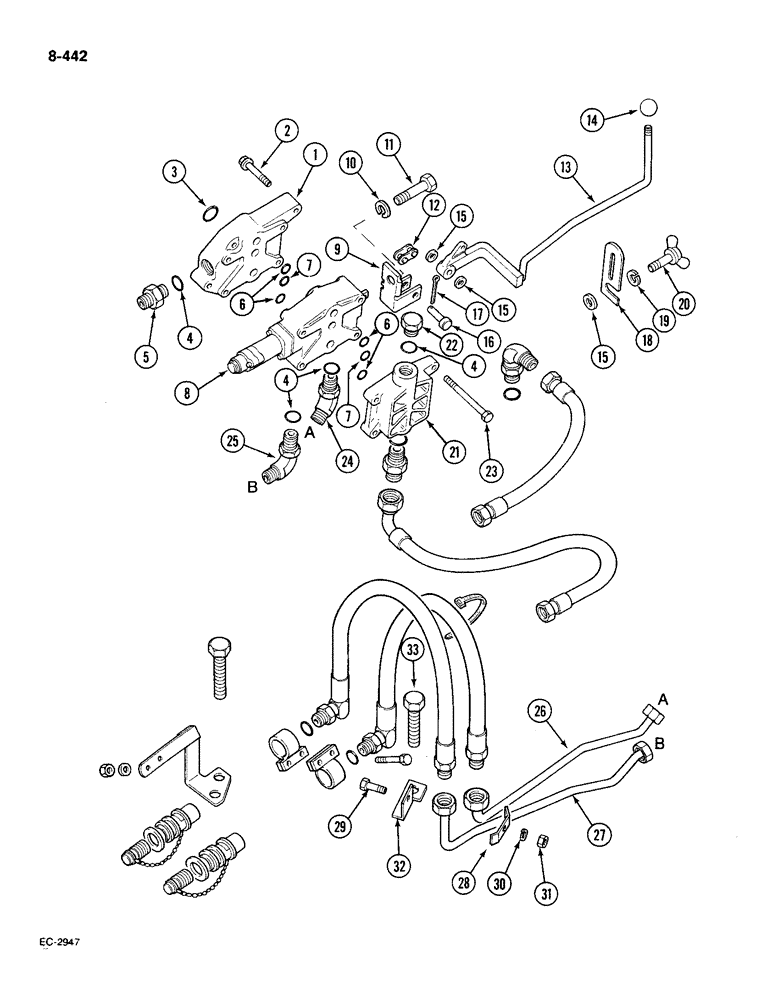

Запчасти Case IH 585 (8-442) - AUXILIARY VALVE, FIRST BANK, PRIOR TO P.I.N. 18001 (08) - HYDRAULICS

1

123105C1

BLOCK

control valve transfer

1шт.

2

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW 12 point flanged, 3/8 NC x 1-3/4 inch

3шт.

3

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 3/16 inch, class 5

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

4шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

6

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 inch, class 6

4шт.

7

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 inch, class 6

2шт.

8

62464C94

VALVE

control, open centre

1шт.

9

114556C1

BRACKET

control valve handle

1шт.

10

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

12

1310D

LINK

connecting, No. 50

1шт.

13

3125863R1

LEVER

auxiliary valve

1шт.

14

3123087R1

BUTTON

KNOB ball (black)

1шт.

15

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

4шт.

16

46883H

CLEVIS PIN,3/8" x 1 9/16"

PIN clevis, 3/8 x 1-9/16 inch

1шт.

17

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

18

3125862R1

PLATE

lockout, auxiliary valve lever

1шт.

19

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

21

123104C1

COVER

open center control valve

1шт.

21

114566C91

KIT

power beyond cover (tractor with loader)

1шт.

123082C1

COVER

power beyond

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 inch, class 6 (Ref. No. 6)

2шт.

383219R1

O-RING,0.924" ID x 0.103" Width

ORING 15/16 x 1-1/8 inch, class 6 (Ref. No. 7)

1шт.

22

9410360

PLUG

O-ring boss, 5/8 inch NF

1шт.

23

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

24

9411106

ELBOW

45 degree, adjustable, 5/8 inch OD tube

1шт.

25

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree, adjustable, 5/8 inch OD tube

1шт.

26

114559C1

TUBE

rear outlet (raise)

1шт.

27

114560C1

TUBE

rear outlet (lower)

1шт.

28

535301R1

CLAMP

rear outlet tube

1шт.

29

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

30

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

120376

NUT,5/16"-18, G5

1шт.

32

535300R1

BRACKET

rear outlet tubes

1шт.

33

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex, 1/2 NC x 2 inch, grade 5

1шт.
