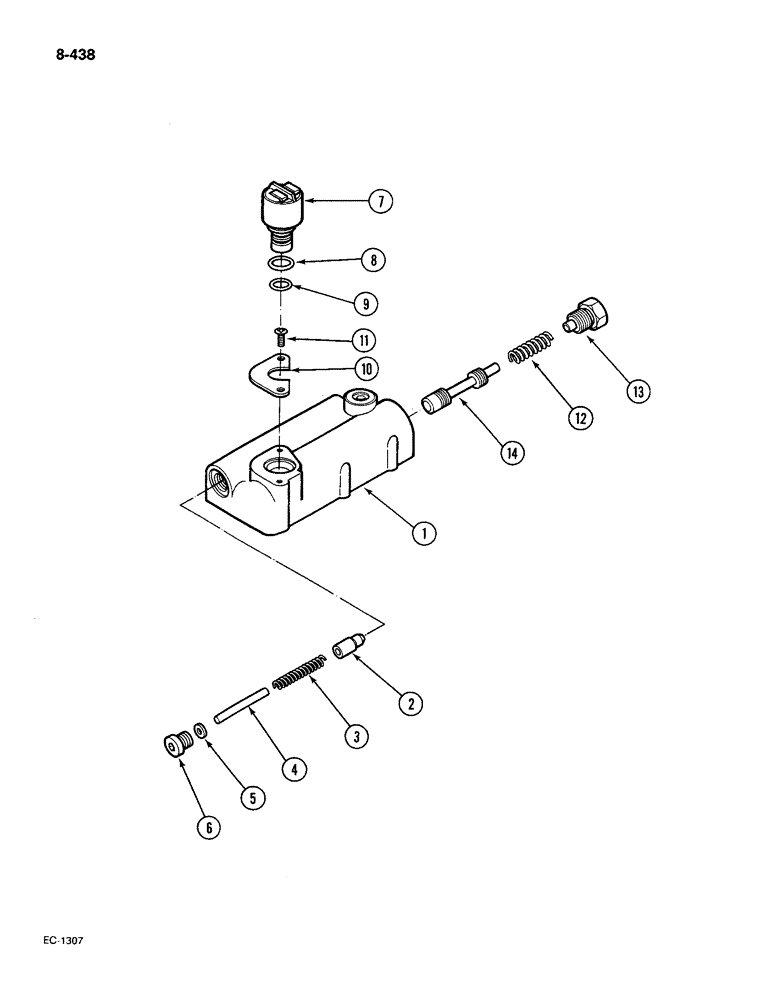

Запчасти Case IH 585 (8-438) - REGULATOR VALVE, 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

83006C94

VALVE

pressure regulator, Includes: Ref. 1-14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

399882R1

POPPET

poppet, pressure regulator

1шт.

3

88426C1

SPRING

1шт.

4

399881R2

PIN

pressure regulator valve

1шт.

5

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

SHIM

1шт.

6

87951C1

PLUG

1шт.

7

1958120C1

SOLENOID VALVE

VALVE solenoid, Includes: Ref. 8 and 9

1шт.

8

370920R1

O-RING,1/2" ID

1/2 x 5/8 inch, class 5

1шт.

9

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 inch, class 5

1шт.

10

1289695C1

COLLAR

CLAMP solenoid valve

1шт.

11

30827R1

SCREW,Cross Pan Hd, M4 x 8

pan head phillips, M4 x 8 mm, grade 4.8

2шт.

12

1289693C3

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.
