(8-436) - REGULATOR VALVE, P.I.N. 18001 AND AFTER

Запчасти Case IH 585 (8-436) - REGULATOR VALVE, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

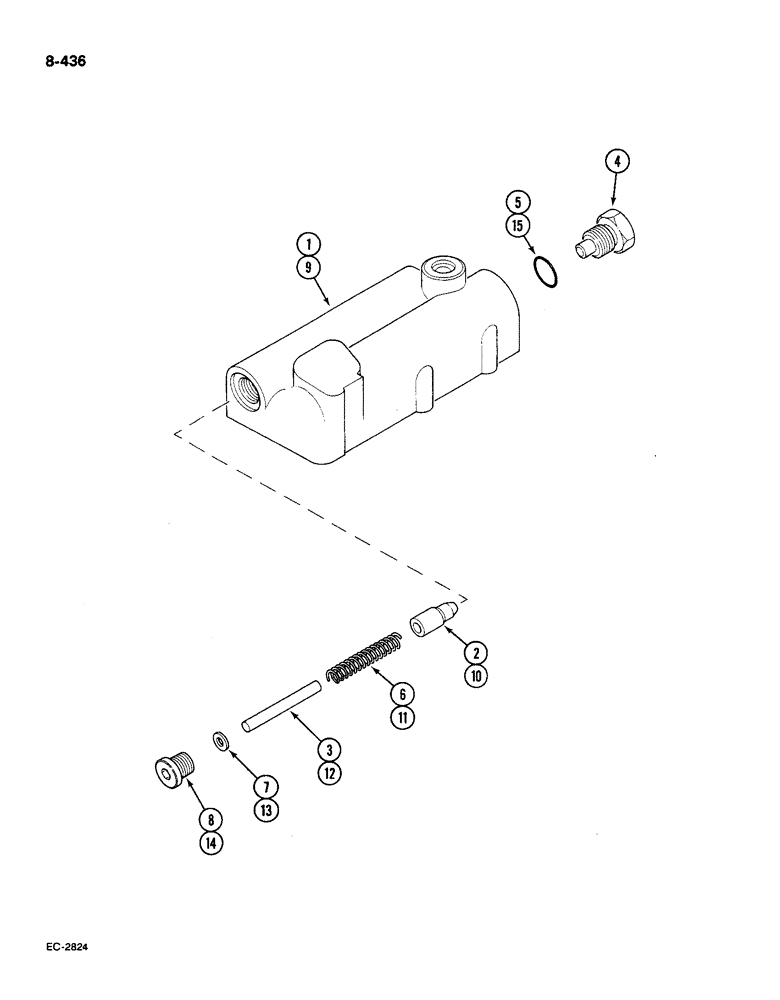

Схема запчастей Case IH 585 - (8-436) - REGULATOR VALVE, P.I.N. 18001 AND AFTER (08) - HYDRAULICS
5
11
13
14
6
1
8
2
10
15
12
9
4
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

94121C92

VALVE

pressure regulator, tractors with forward and reverse, Includes: Ref. 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY regulator, with valve seat

1шт.

2

399882R1

POPPET

poppet, pressure regulator

1шт.

3

399881R2

PIN

pressure regulator valve

1шт.

4

86398C2

PLUG

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

6

88426C1

SPRING

1шт.

7

1954071C1

WASHER

1шт.

8

1954070C1

PLUG

1шт.

83190C92

VALVE

pressure regulator, 4 wheel drive tractor (without 2 speed power shift) Includes: Ref. 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

BODY regulator, with valve seat

1шт.

10

399882R1

POPPET

poppet, pressure regulator

1шт.

11

88426C1

SPRING

1шт.

12

399881R2

PIN

pressure regulator valve

1шт.

13

1954071C1

WASHER

1шт.

14

1954070C1

PLUG

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.
