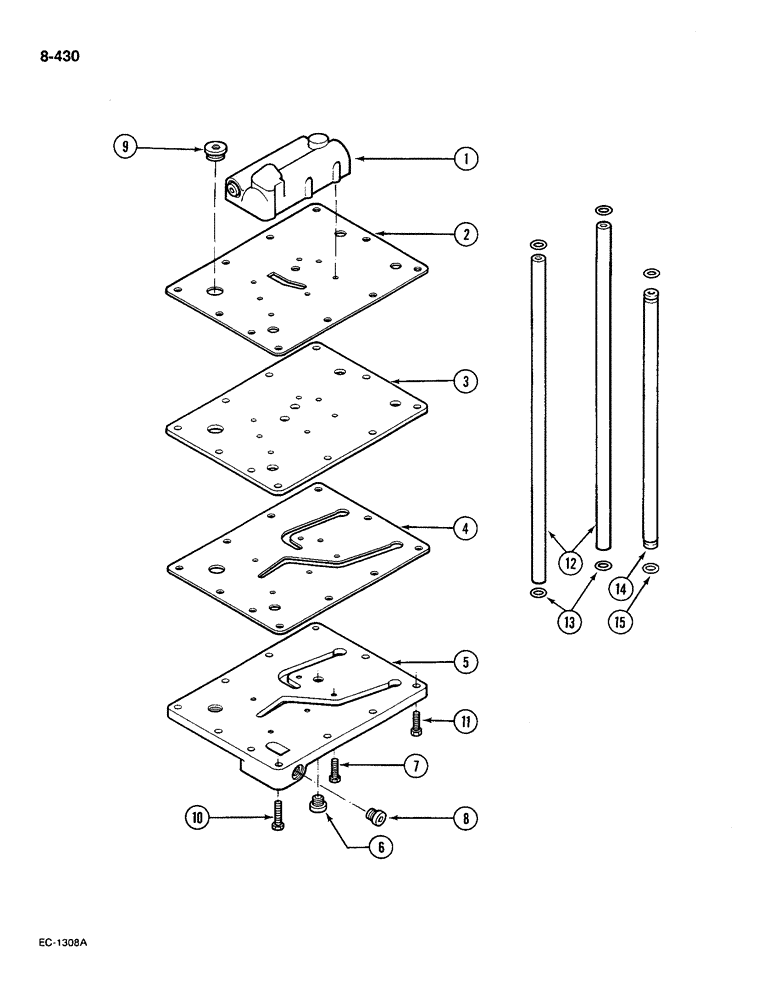

Запчасти Case IH 585 (8-430) - REGULATOR VALVE AND PLATE, 4 WHEEL DRIVE, WITHOUT 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

83190C92

VALVE

pressure regulator (see Figure 8-436)

1шт.

2

83009C2

GASKET

separator plate

1шт.

3

83010C2

PLATE

separator

1шт.

4

83011C2

GASKET,0.79mm Thk

core plate

1шт.

5

83013C2

LARGE PLATE

PLATE core

1шт.

6

86258C1

PLUG,M12 x 1.5

M12, with packing ring

1шт.

7

931405R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex. head, M8 x 30 mm class 8.8

5шт.

8

86258C1

PLUG,M12 x 1.5

M12, with packing ring

1шт.

9

87953C1

PLUG

M22, with packing ring

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

2шт.

11

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5

9шт.

12

402545R1

PRESSURE PIPE

TUBE pump pressure

2шт.

13

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 inch, class 5

4шт.

14

83401C1

PIPE

TUBE oil inlet

1шт.

15

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 inch, class 6

2шт.
