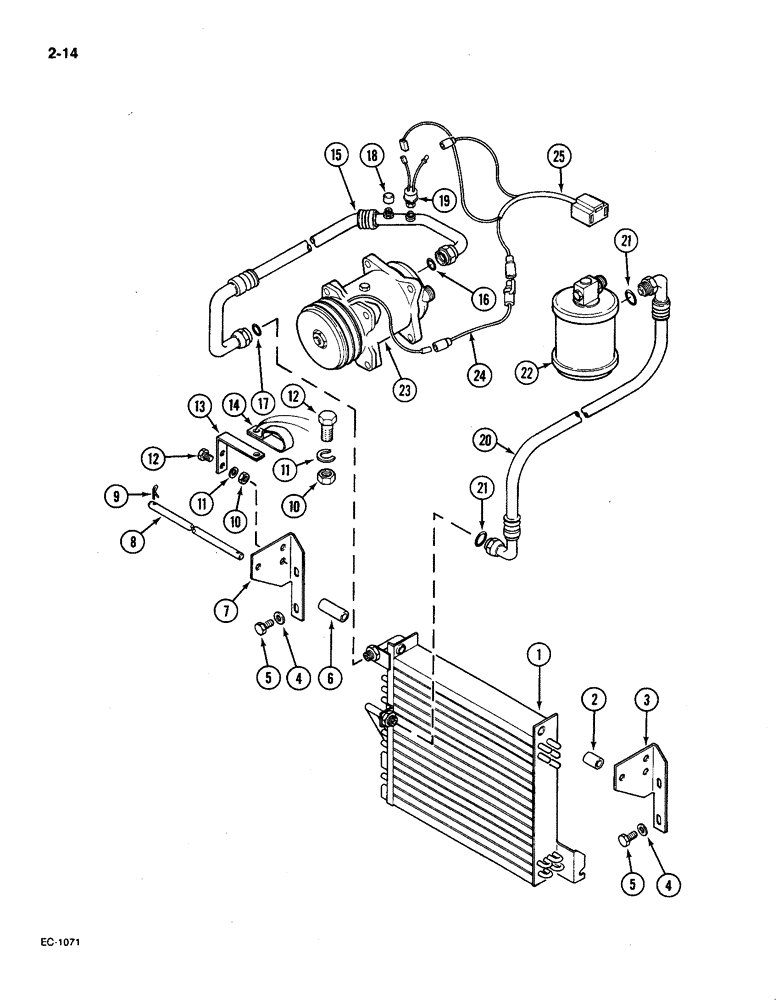

Запчасти Case IH 585 (2-14) - AIR CONDITIONING, CONDENSER AND CONNECTIONS, TRACTOR WITH CAB (02) - ENGINE

1

1536992C1

CAPACITOR

CONDENSER, new, replaced 84666C2

1шт.

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

winged

1шт.

2

84709C1

SPACER

condenser locating

1шт.

2

PO23796

SPACER,1/4" Pipe x 1 1/16"

Optional to P/N 84709C1 1/4" Pipe x 1 1/16"

1шт.

3

84511C2

BRACKET

condenser mounting

1шт.

4

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

4шт.

5

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

6

84710C1

SPACER

condenser locating

1шт.

6

PO22778

SPACER,1/4" Pipe x 2"

- 1/4 inch pipe x 2 inch (Optional to 84710C1)

1шт.

7

84511C2

BRACKET

condenser mounting

1шт.

8

84674C1

ROD

1шт.

9

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

10

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25752R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4"-20 NC x 1/2", grade 8

2шт.

13

1330749C2

SUPPORT

1шт.

14

1280259C1

CLIP

hose

1шт.

25752R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4"-20 NC x 1/2", grade 8

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

15

98012C2

HOSE

compressor to condenser, Includes Ref. 16, 17 and 18

1шт.

16

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 inch, class 5

1шт.

17

37527R1

O-RING - 7/16 x 9/16 inch, class 5

1шт.

18

118188C1

CAP

sealing

1шт.

18

3405671R1

CAP

, Serial Range: (optional-118188C1)

1шт.

19

111266C1

SWITCH, A/C HIGH PRE

SWITCH high pressure

1шт.

20

98013C31

HOSE condenser to receiver, Includes: Ref. 21

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

22

118304C1

RESERVOIR

RECEIVER dryer

1шт.

23

97204C1

COMPRESSOR

freon (see Figure 2-16) (Replaces 83934C91) Includes: Ref. 24 and 25

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

23

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

23

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

24

1964563C1

CABLE

- A/C compressor adaptor

1шт.

25

1536629C1

HARNESS

A/C, front, compressor clutch/high pressure switch to cab harness, replaced 91880C2

1шт.
