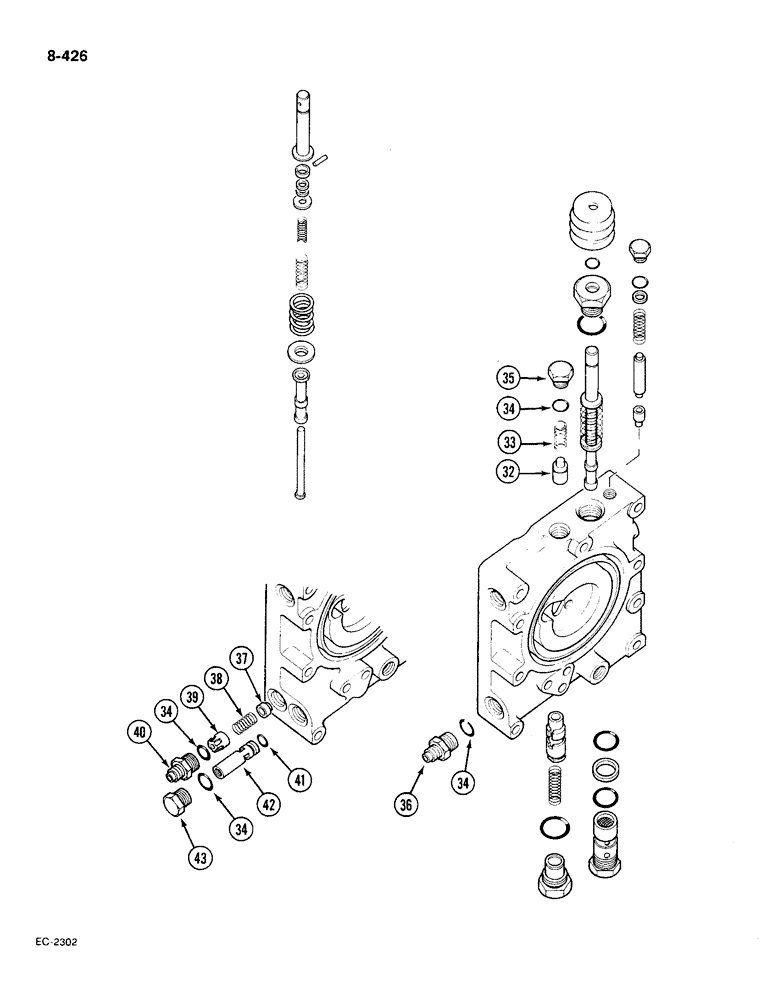

Запчасти Case IH 585 (8-426) - MULTIPLE CONTROL VALVE, CONTD (08) - HYDRAULICS

57714C96

VALVE

multiple control, Serial Range: -18001

1шт.

94281C91

VALVE

multiple control, Includes: Ref 32-43, Start Serial: 18001

1шт.

32

527482R1

VALVE,By-Pass

VALVE by-pass

1шт.

33

1502544C1

SPRING

valve, by-pass

1шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, used with valve assembly 94281C91

2шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, used with valve assembly 57714C96

3шт.

35

529492R2

PLUG

cooler by-pass

1шт.

36

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION short swivel, 1/2 inch OD tube, used with valve assembly 94281C91

1шт.

37

382304R1

CHECK VALVE

VALVE check, used with valve assembly 57714C96

1шт.

38

399869R1

SPRING

check valve, used with valve assembly 57714C96

1шт.

39

399870R2

RETAINER

check valve spring, used with valve assembly 57714C96

1шт.

40

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch, used with valve assembly 57714C96

1шт.

41

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 inch, class 6, used with valve assembly 57714C96

1шт.

42

55356C1

VALVE, CUSHION

VALVE safety, 1500 psi, used with valve assembly 57714C96

1шт.

43

536855R1

PLUG

O-ring boss, 3/4 inch NF, used with valve assembly 57714C96

1шт.
