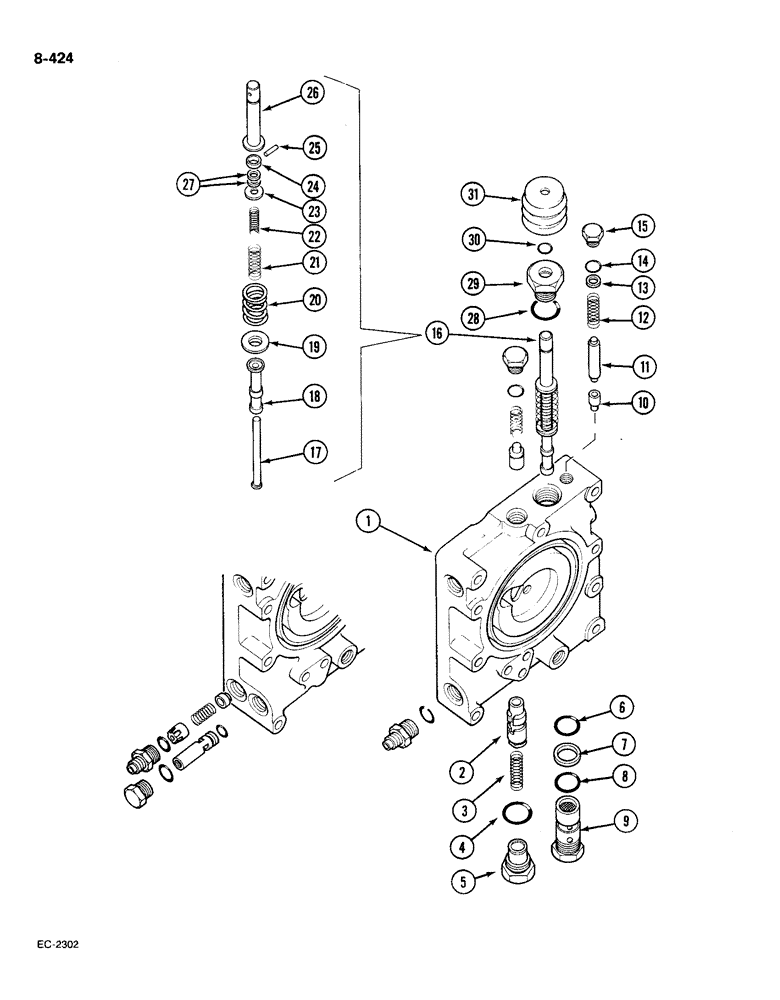

Запчасти Case IH 585 (8-424) - MULTIPLE CONTROL VALVE (08) - HYDRAULICS

57714C96

VALVE

multiple control, Serial Range: -18001

1шт.

94281C91

VALVE

multiple control, Includes: Ref. 1 and 2, Start Serial: 18001

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

Ref #2 - 1543121C1 New Spool.

1шт.

If ordering new Spool (1543121C1) you must order new Spring 1345986C1 and New Plug 218-5212. These are the new Items for Ref #3 & #5

1шт.

3

405448R1

SPRING

flow divider valve

1шт.

4

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 inch OD tube, class 6

1шт.

5

405447R2

PLUG

flow divider

1шт.

6

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 inch, class 6

1шт.

7

378985R2

BACK-UP RING

back up

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 inch, class 5

1шт.

9

399858R92

VALVE

pilot relief, 2500 psi

1шт.

10

399881R2

PIN

VALVE poppet, pressure regulator

1шт.

11

399881R2

PIN

pressure regulator valve

1шт.

12

549850R1

SPRING

pressure regulator valve

1шт.

13

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

SHIM

1шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

15

573983R1

PLUG

regulator valve

1шт.

16

530775R93

VALVE

control, complete assembly, Includes: Ref. 17-26

1шт.

17

405454R2

PIN

control valve guide

1шт.

18

405452R1

CONTROL VALVE

VALVE control

1шт.

19

405453R1

RETAINER

IPTO valve

1шт.

20

530776R1

SPRING

control valve return

1шт.

21

381760R1

SPRING

control valve (Light)

1шт.

22

399878R2

SPRING

control valve (Heavy)

1шт.

23

556980R1

WASHER

0.203 x 0.75 x 0.054 inch

1шт.

24

530778R1

RETAINER

SPACER

1шт.

25

405456R1

PIN

control valve dowel

1шт.

26

530777R2

STEM

control valve

1шт.

27

369107R1

SNAP RING,#21, Ext

Ring, Snap, #21, Ext

1шт.

28

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 inch OD tube, class 6

1шт.

29

530781R2

GUIDE

control valve stem

1шт.

30

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 inch, class 5

1шт.

31

530780R1

BOOT

PTO control dust

1шт.
