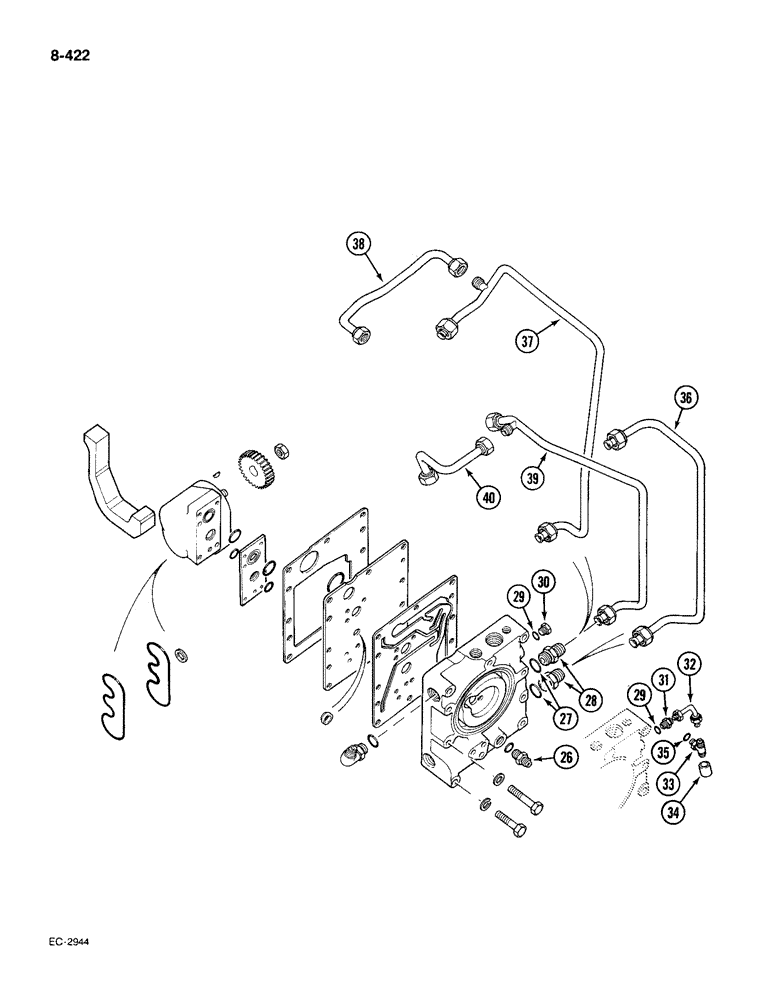

Запчасти Case IH 585 (8-422) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE CONTINUED (08) - HYDRAULICS

26

57577C1

CHECK VALVE

VALVE check, Serial Range: -18001

1шт.

26

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION short swivel, 1/2 inch OD tube, Start Serial: 18001

1шт.

27

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD tube, class 6

2шт.

28

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short swivel, 5/8 inch OD tube

2шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

30

9410356

PLUG

1/4 inch

1шт.

31

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION short swivel, 1/4 inch OD tube (IPTO)

1шт.

32

539835R1

TUBE ASSY.

TUBE IPTO pressure

1шт.

33

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

adjustable, 1/4 inch OD tube (IPTO)

1шт.

34

9403369

CAP,37 Degree, 7/16"-20

tube, 1/4 inch (IPTO)

1шт.

35

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6, IPTO

1шт.

36

66724C1

TUBE multiple control valve by-pass

1шт.

Ref #36 (P/N 66724C1) - 1289958C1 tube with male 'T' fitting.

1шт.

37

66761C1

TUBE ASSY.

TUBE draft control return, Serial Range: -18001

1шт.

37

1956744C1

HYD TUBE

TUBE draft control return, tractor without cab, Start Serial: 18001

1шт.

38

1956743C1

HYD TUBE,0.625" OD

TUBE auxiliary valve return, tractor without cab, Start Serial: 18001

1шт.

39

99655C1

PIPE

TUBE draft control return, tractor with cab, Start Serial: 18001

1шт.

40

99530C1

PIPE ASSY.

TUBE auxiliary valve return, tractor with cab, Start Serial: 18001

1шт.
