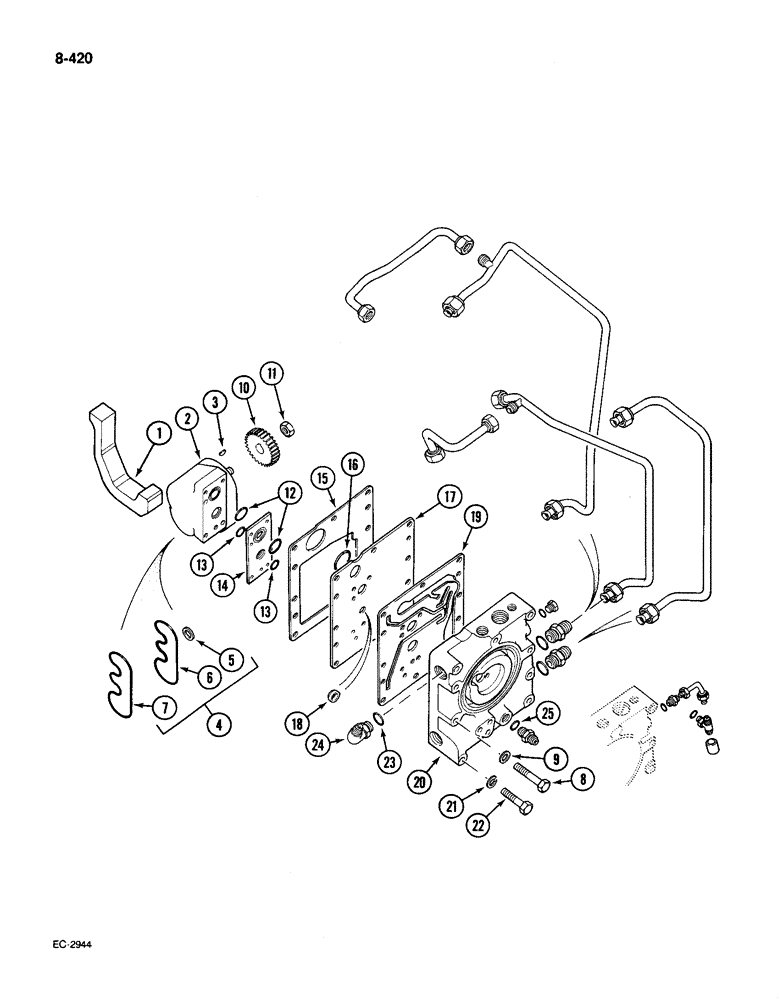

Запчасти Case IH 585 (8-420) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (08) - HYDRAULICS

1

69355C1

SEAL

hydraulic pump

1шт.

2

93835C91

PUMP, HYDRAULIC

PUMP hydraulic gear (Replaces 66513C92, 110509C91, 128180C91, 406763R92), Includes: Ref. 3-7

1шт.

2

84573150R

REMAN-HYD PUMP

585 CASE IH TRACTOR, PUMP hydraulic gear (1/86-12/90), Reman for New PN 93835C91

1шт.

2

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

4

1502030C1

SEAL KIT

KIT service, seals, Includes: Ref. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL pump shaft

1шт.

6

NSS

NOT SOLD SEPARAT

RING pressure loading

2шт.

7

NSS

NOT SOLD SEPARAT

RING back-up

2шт.

8

179830

15 GPM pump Hex, 5/16"-18 x 3", G5

4шт.

9

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

10

544908R1

GEAR

driven, 21 teeth (15 gpm pump) (Used with pump 110509C91), Serial Range: -18001

1шт.

10

406764R1

PINION

GEAR driven, 27 teeth (12 gpm pump), Serial Range: -18001

1шт.

10

59369C1

GEAR

driven, 23 teeth (15 gpm pump), Start Serial: 18001

1шт.

10

94181C1

GEAR

driven, 20 teeth (17 gpm pump), Start Serial: 18001

1шт.

11

18536R1

LOCK NUT,5/8"-18, G5

NUT hex lock, 5/8 inch NF (Used with driven gear 110523C1)

1шт.

11

19258R1

LOCK NUT,1/2"-20, GB

NUT hex lock, 1/2 inch NF

1шт.

12

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 ID x 3/32 inch, class 5

2шт.

13

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 inch, class 6

2шт.

14

59370C1

LARGE PLATE

PLATE pump mounting (15 gpm pump)

1шт.

14

544909R2

LARGE PLATE

PLATE pump mounting (17 gpm pump)

1шт.

15

401736R3

GASKET

multiple control valve HV

1шт.

16

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 ID x 1/8 inch, class 5

1шт.

17

405458R2

LARGE PLATE

PLATE multiple control valve

1шт.

18

387926R2

RING

rectangular

1шт.

19

65000C3

GASKET

multiple control valve body

1шт.

20

94281C91

VALVE

multiple control, see Figure 8-424, Start Serial: 18001

1шт.

20

57714C96

VALVE

multiple control, see Figure 8-424, Serial Range: -18001

1шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, , without Cab 3/8"

10шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, , with Cab 3/8"

7шт.

22

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(w/o Cab) Hex, 3/8"-16 x 3", G5

9шт.

22

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(w/ Cab) Hex, 3/8"-16 x 3", G5

6шт.

22

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch, grade 5

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

2шт.

24

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree adjustable, 1/2 inch OD tube

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, Serial Range: -18001

1шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube (Replaces 578028R1), Start Serial: 18001

1шт.
