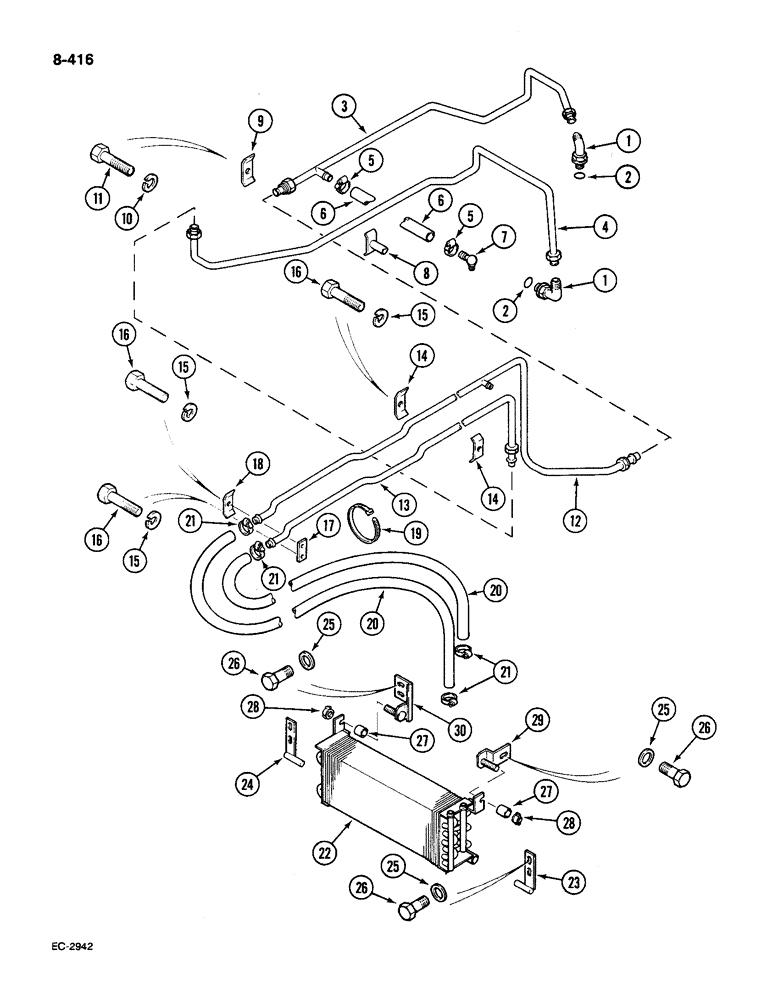

Запчасти Case IH 585 (8-416) - OIL COOLER AND PIPES, AIR CONDITIONED CAB (08) - HYDRAULICS

1

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree adjustable, 1/2 inch OD tube

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

2шт.

3

1500138C1

TUBE ASSY.,8 mm OD, 589.5, 138 mm Length

TUBE oil cooler return, rear

1шт.

4

1281684C1

HYD TUBE

TUBE oil cooler supply, rear

1шт.

5

3125239R1

COLLAR

CLAMP hose, worm drive

2шт.

6

1500540C1

HOSE

lubrication

1шт.

7

88117C1

PIPE,60 mm L

TUBE lubricator inlet, see Figure 6-274

1шт.

8

1500148C1

CLAMP

tube

1шт.

9

602836C1

CLAMP

tube

1шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

hex hd 3/8 x 83 mm PLN NC, grade 5

1шт.

12

99477C2

PIPE

TUBE oil cooler return, front

1шт.

13

99476C2

PIPE

TUBE oil cooler supply, front

1шт.

14

529644R11

CLAMP

tube

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

17

98937C1

SUPPORT

BRACKET front

1шт.

18

529644R1

CLAMP

tube

1шт.

19

533959R1

CABLE TIE,.135" x 11"

STRAP cable

5шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP cable, 1.75 max bundle

2шт.

20

NSS

NOT SOLD SEPARAT

HOSE oil cooler, 940 mm (Cut from 3125980R1)

2шт.

20

3125980R1

LARGE HOSE

HOSE rubber, 1/2 inch ID, bulk length

1шт.

21

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose, No. 10, type F

4шт.

22

84720C1

COOLER

oil, now made of copper

1шт.

23

84521C1

HINGE

left

1шт.

24

84520C1

HINGE

right

1шт.

25

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

7шт.

26

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

7шт.

27

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

pipe, 3/8 x 5/8 inch

2шт.

28

7500032

BUSHING

NUT wing, 5/16 inch NC

2шт.

29

84665C2

BRACKET

condenser

1шт.

30

84625C2

BRACKET

condenser

1шт.
