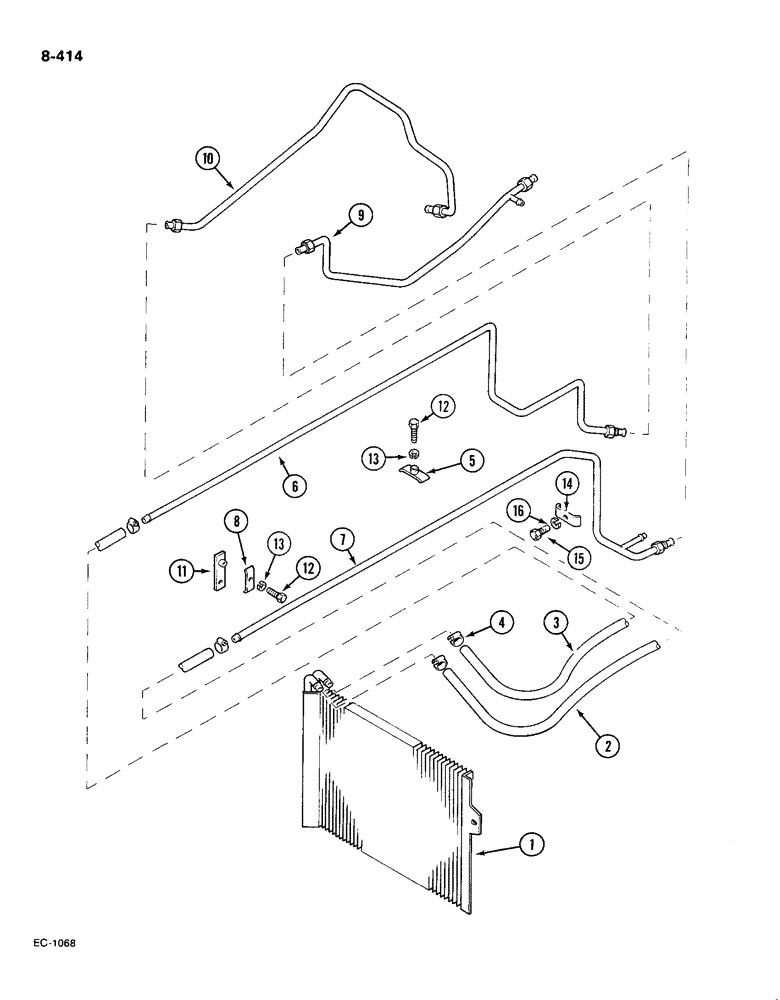

Запчасти Case IH 585 (8-414) - OIL COOLER, SYNCHROMESH DRIVE, TRACTOR WITHOUT CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

84668C1

COOLER

oil, now made of Copper

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN plain head, 5/16 x 1-7/8 inch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

NSS

NOT SOLD SEPARAT

HOSE oil cooler, inlet (Cut from hose 3125980R1)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE oil cooler, outlet (Cut from hose 3125980R1)

1шт.

3125980R1

LARGE HOSE

HOSE rubber, 1/2 inch ID, bulk length

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose, No. 10 , type F

4шт.

4

3074617R1

CLAMP

hose, Serial Range: (Optional-274085R91)

4шт.

5

529644R11

CLAMP

tube

1шт.

6

99783C1

PIPE

TUBE oil cooler supply

1шт.

7

99782C1

PIPE

TUBE oil cooler return

1шт.

8

529644R1

CLAMP

tube

2шт.

9

66096C4

PIPE

TUBE oil cooler return, rear

1шт.

10

3129259R1

PIPE

TUBE oil cooler supply, rear

1шт.

11

98937C1

SUPPORT

BRACKET front

1шт.

12

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

99788C1

CLAMP

tube

1шт.

15

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

16

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.
