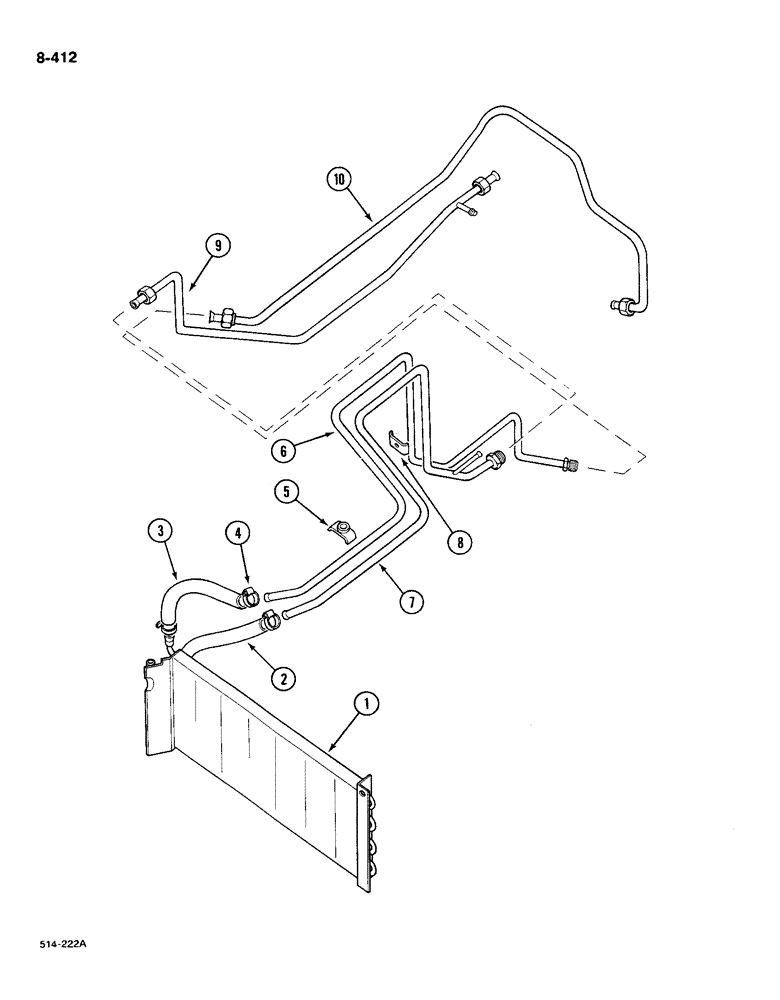

Запчасти Case IH 585 (8-412) - OIL COOLER, SYNCHROMESH DRIVE, PRIOR TO P.I.N. 18001 (08) - HYDRAULICS

1

539560R1

COOLER

oil

1шт.

1

1265532C1

COOLER

oil, required with 17 gpm pump

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN plain head, 5/16 x 1-7/8 inch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

NSS

NOT SOLD SEPARAT

HOSE oil cooler outlet, 18 inch (Cut from 73199C1)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE oil cooler inlet, 18 inch (Cut from 73199C1)

1шт.

73199C1

HOSE

1/2 inch rubber, 50 foot (15 meters)

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose, No. 10, type F, oil cooler

4шт.

4

3074617R1

CLAMP

hose, Serial Range: (Optional-274085R91)

4шт.

5

529644R11

CLAMP

tube, oil cooler

1шт.

NLS

NO LONGER SERVICED

hex, 1/4 NC x 7/8 inch

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

66098C1

PIPE

TUBE oil cooler, inlet

1шт.

7

66100C2

TUBE ASSY.

TUBE oil cooler, outlet

1шт.

8

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

66096C4

PIPE

TUBE oil cooler return, rear

1шт.

10

3129259R1

PIPE

TUBE oil cooler supply, rear

1шт.
