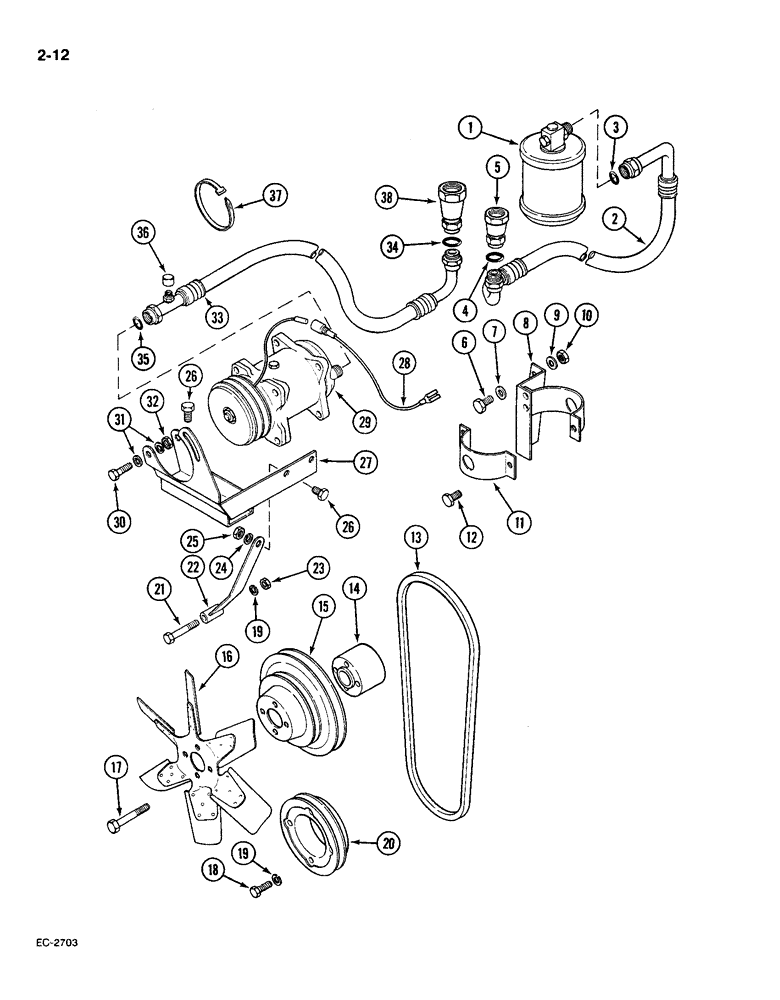

Запчасти Case IH 585 (2-12) - AIR CONDITIONING, COMPRESSOR AND CONNECTIONS, TRACTOR WITH CAB (02) - ENGINE

1

118304C1

RESERVOIR

RECEIVER dryer

1шт.

2

98014C3

HOSE

receiver to cab, Includes: Ref. 3 and 4

1шт.

3

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

4

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 inch ID

1шт.

Use 189819A1 for use on air conditioning models only.

1шт.

5

117771C1

COUPLING,1" - 20 NPT x 7/8" - 20 NPT

COUPLING half, female

1шт.

6

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8, PHC

2шт.

7

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

2шт.

8

98094C2

SUPPORT

receiver

1шт.

9

934675R1

WASHER,M8 x 16 x 1.6

Flat, ZND M8 x 16 x 1.6

2шт.

10

30167R1

NUT,M8, Cl 10

hex, M8, class 10

2шт.

11

3405695R1

CLAMP

1шт.

12

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, class 8.8

3шт.

13

84657C1

V-BELT,0.50" W x 67.00" L

V-BELT, , Freon Compressor 0.50" W x 67.00" L

1шт.

14

84514C1

SPACER

1шт.

15

84624C1

PULLEY

water pump

1шт.

16

84416C1

FAN

engine cooling

1шт.

Fan cannot be reversed

1шт.

17

433061

BOLT,Hex, 1/4" - 28 x 3 1/4", Gr 5

- hex, 1/4 NF x 3-1/4 inch, grade 5

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex, 5/16 NC x 2 inch

4шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

20

84623C1

PULLEY

crankshaft

1шт.

21

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

hex, 5/16 NC x 2-1/2 inch, class 5

1шт.

22

84487C1

SUPPORT

BRACE freon compressor bracket

1шт.

23

120376

NUT,5/16"-18, G5

1шт.

24

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

120377

NUT,3/8" - 16, Gr 5

2шт.

26

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

2шт.

27

84485C1

SUPPORT

BRACKET freon compressor

1шт.

97205C1

KIT

compressor service, Includes: Ref.28 and 29

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97205C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

28

1964563C1

CABLE

a/c compressor adaptor

1шт.

29

97204C1

COMPRESSOR

freon (See Figure 2-16) (Replaces 83934 C91)

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

29

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

29

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

30

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, grade 5

3шт.

31

25544R1

WASHER,13/32" x 13/16" x .134", HDN

flat, 3/8 inch

6шт.

32

25522R1

NUT,3/8"-16, G8

hex, 3/8 inch NC

3шт.

33

98015C2

HOSE

cab base to compressor, Includes: Ref. 34, 35 and 36

1шт.

34

343900R1

O-RING,1.051" ID x 0.07" Width

1-1/16 inch ID

1шт.

Use 189818A1 for air conditioned models only.

1шт.

35

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 ID x 11/16 inch, class 5

1шт.

36

118188C1

CAP

1/4 sae, 45 degrees flare

1шт.

36

3405671R1

CAP

(optional to 118188 C1)

1шт.

37

533959R1

CABLE TIE,.135" x 11"

TIE wrap

5шт.

38

1280492C1

PUSH-PULL COUPLING

COUPLING half, female

1шт.
