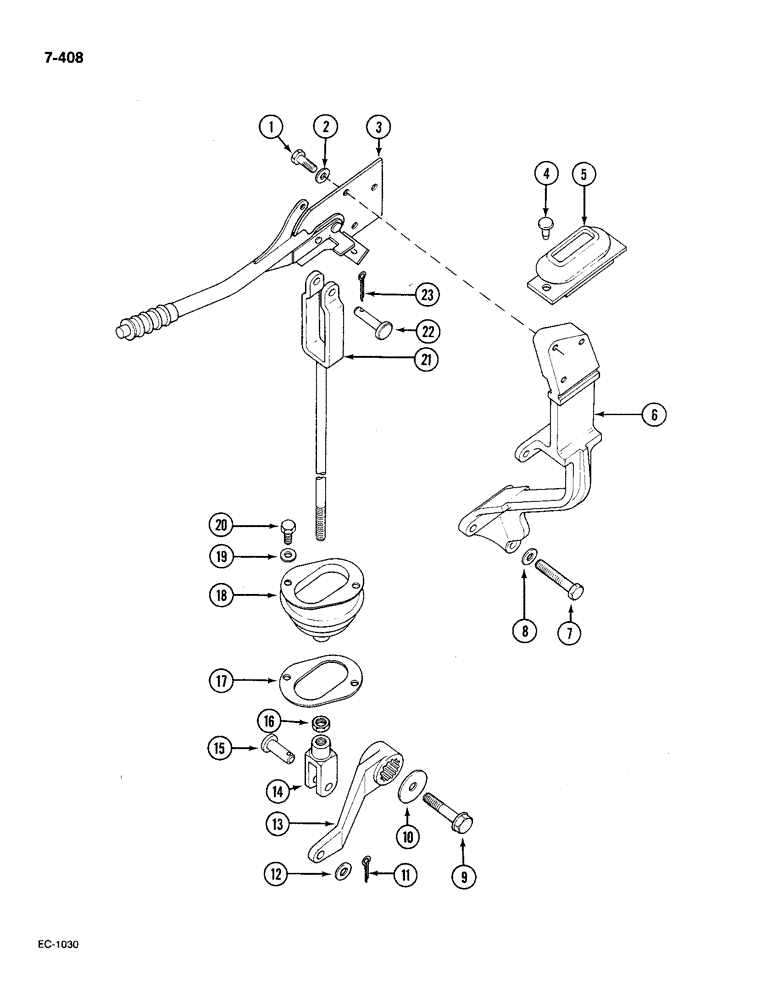

Запчасти Case IH 585 (7-408) - PARK LOCK LINKAGE, WITH CAB, P.I.N. 18001 AND AFTER (07) - BRAKES

1

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8, PHC

3шт.

2

30326R1

WASHER,M8 x 17.5 x 2, HT

plain, M8

3шт.

3

94256C96

LEVER

park brake, see Figure 7-398

1шт.

4

1289539C1

FASTENER

plastic

2шт.

5

94374C1

BOOT

park brake support

1шт.

6

94251C1

SUPPORT

park brake

1шт.

7

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch, grade 5

3шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW hex flange, 3/8 NC x 3/4 inch

1шт.

10

3102893R1

WASHER

plain, 10.4 x 50 x 3 mm

1шт.

11

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

1шт.

12

30328R1

WASHER,M13.5 x 24.5 x 3, HT

hardened, M12

1шт.

13

94231C2

ARM

actuating

1шт.

14

30791R1

CLEVIS

adjustable, M10

1шт.

Ref #14 - 1537272C1 New Clevis

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

PIN clevis, 10 x 30 mm

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

1шт.

17

99414C1

PLATE

clamp

1шт.

18

94375C2

BOOT

rod actuating

1шт.

19

30481R1

WASHER,M5 x 10 x 1

plain, 5.5 x 10 x 1 mm

2шт.

20

30304R1

SCREW

tapping, M5 x 12 mm

2шт.

21

1330979C1

CLEVIS

pull

1шт.

22

31168R1

CLEVIS PIN,M10x 45

PIN clevis, 10 x 45 mm

1шт.

23

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

1шт.
