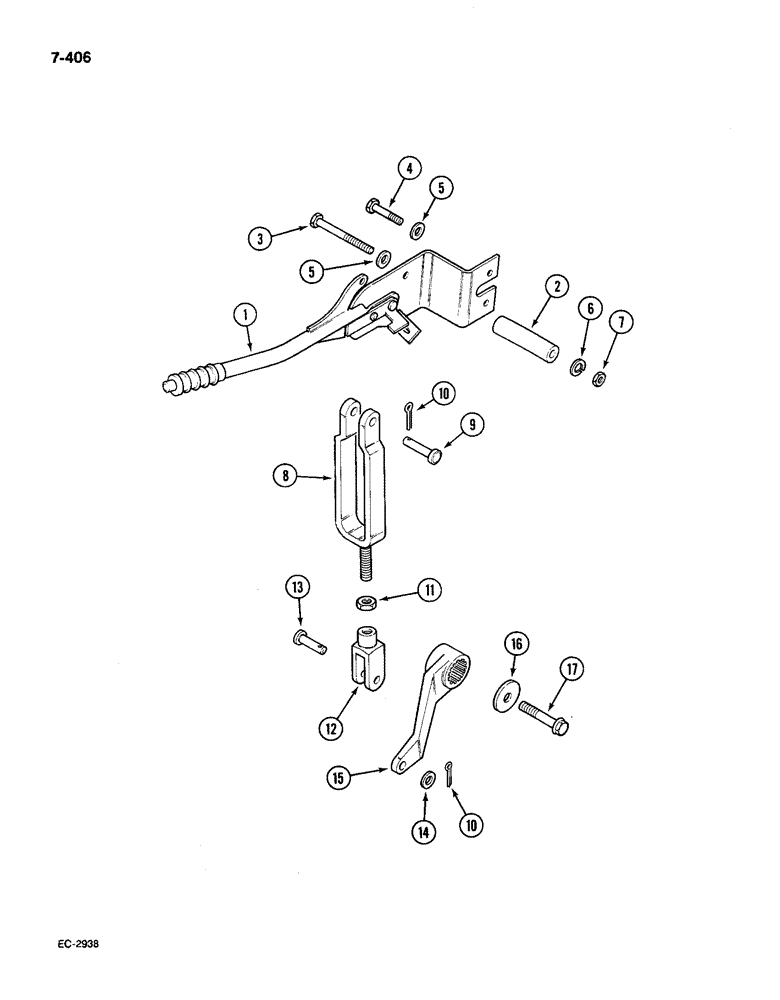

Запчасти Case IH 585 (7-406) - PARK BRAKE LINKAGE, WITHOUT CAB, P.I.N. 18001 AND AFTER (07) - BRAKES

1

94256C96

LEVER

park brake, Replaced by 1331093C2, see Figure 7-398

1шт.

1

1331093C2

LEVER

park brake, see Figure 7-398

1шт.

2

99436C1

SPACER

(Used with 94256C96)

3шт.

3

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch, grade 5 (Used with 1331093C2)

1шт.

3

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch, grade 5 (Used with 94256C96)

3шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5, ZND (Used with 1331093C2)

2шт.

5

25724R1

WASHER

flat, 0.406 x 1.125 x 0.134 inch

3шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

120377

NUT,3/8" - 16, Gr 5

3шт.

8

1330987C2

CLEVIS

pull

1шт.

9

31284R1

CLEVIS PIN

PIN clevis, 10 x 35 mm (Replaces 31168R1)

1шт.

10

934896R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm (Replaces 934792R1)

2шт.

11

30168R1

NUT,M10, Cl 10

hex, M10, class 10

1шт.

12

30791R1

CLEVIS

adjustable, M10

1шт.

Ref #12 - 15377272C1 New Clevis

1шт.

13

30387R1

SPLIT PIN/SAFETY PIN

PIN clevis, 10 x 30 mm

1шт.

14

30176R1

WASHER,M10 x 21.5 x 2.5, HT

plain, M10

1шт.

15

99435C3

ARM

actuating

1шт.

16

3102893R1

WASHER

plain, 10.4 x 50 x 3 mm

1шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW hex flange, 3/8 NC x 3/4 inch

1шт.
