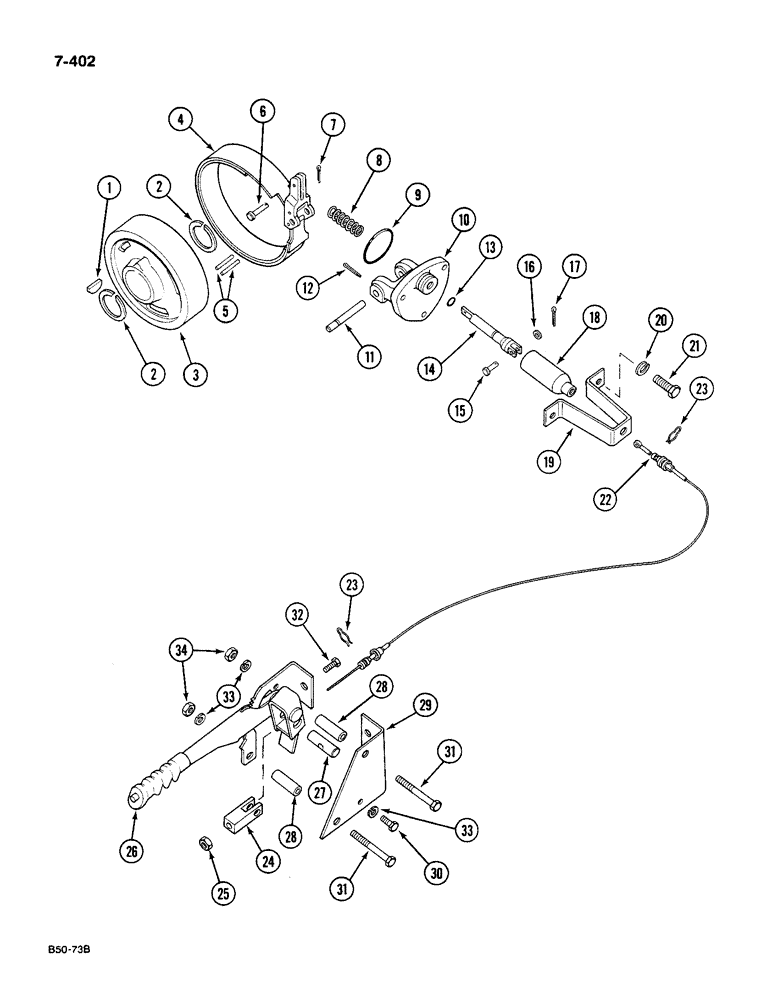

Запчасти Case IH 585 (7-402) - PARK BRAKE, WITHOUT CAB (07) - BRAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING snap, brake drum retaining

2шт.

3

399828R1

HUB

brake drum, Serial Range: -18001

1шт.

3

66074C1

HUB

brake drum, Start Serial: 18001

1шт.

4

401992R3

BAND

brake and actuating toggle, Includes: Ref. 5

1шт.

5

535544R1

PIN

anchor, 1/4 x 1-1/2 inch

2шт.

6

16616R1

CLEVIS PIN,5/16" x .940"

PIN clevis, 5/16 x 31/32 inch

1шт.

7

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

8

402000R1

SPRING

parking brake return

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 inch, class 5

1шт.

10

401997R2

PIVOT

parking brake

1шт.

11

401998R1

PIVOT PIN

PIN parking brake pivot

1шт.

12

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

13

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 inch, class 5

1шт.

14

402014R1

PLUNGER

parking brake pivot

1шт.

15

702269R1

HEADED PIN,5/16" x 15/16"

PIN plain head, 5/16 x 15/16 inch, type 1

1шт.

16

95-11034

WASHER,1/4"

plain, 0.344 x0.688 x 0.051 inch

1шт.

17

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

402015R1

BOOT

cable protection

1шт.

19

401999R1

SUPPORT

BRACKET cable housing anchor lower

1шт.

20

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

22

3129788R2

CABLE ASSY.

CABLE parking brake

1шт.

23

148150

HAIR PIN COTTER,3/8" Retainer

PIN retaining, 3/8 inch

2шт.

24

3129790R1

BLOCK

brake cable retaining

1шт.

25

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

26

3129929R92

LEVER ASSY.

LEVER hand, park brake (see Figure 7-400)

1шт.

27

3129789R1

PIN,16mm OD x 50mm L

park brake cable

1шт.

28

11531N

SPACER,3/8" Pipe x 2"

standard pipe, 3/8 x 2 inch

2шт.

29

1502240C1

SUPPORT

BRACKET handbrake support

1шт.

30

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, type 5, type 5

1шт.

31

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch, grade 5, type 5

2шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

1шт.

33

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

120377

NUT,3/8" - 16, Gr 5

3шт.
