(7-398) - PARK BRAKE HAND LEVER, P.I.N. 18001 AND AFTER

Запчасти Case IH 585 (7-398) - PARK BRAKE HAND LEVER, P.I.N. 18001 AND AFTER (07) - BRAKES

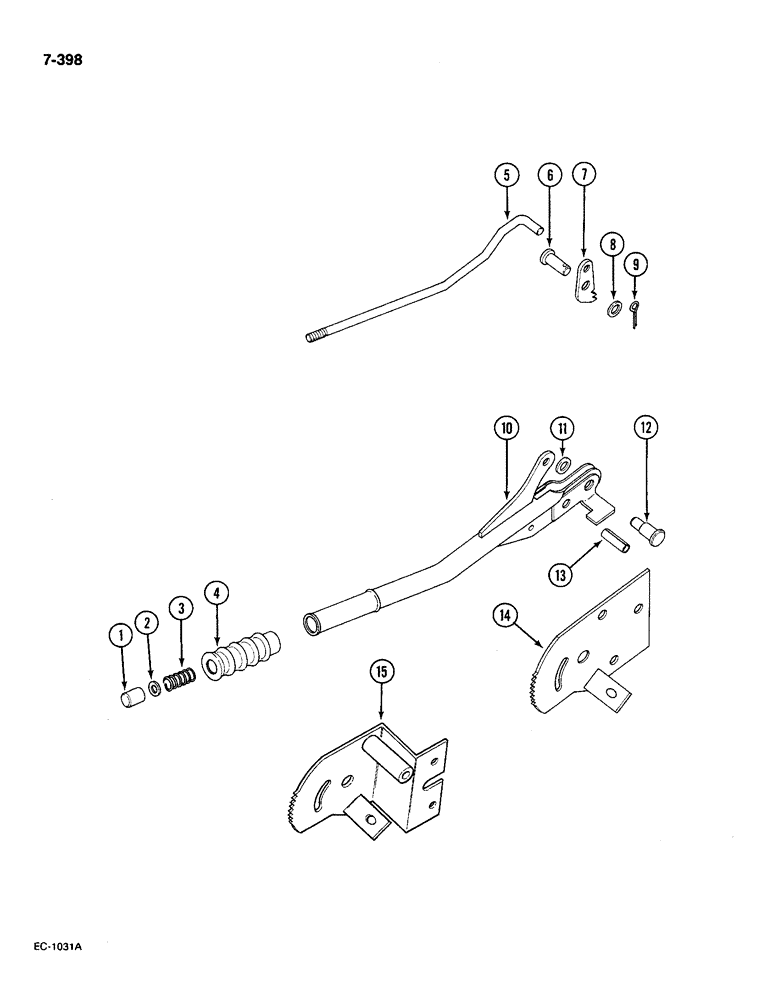

Схема запчастей Case IH 585 - (7-398) - PARK BRAKE HAND LEVER, P.I.N. 18001 AND AFTER (07) - BRAKES
5
8
13
6
14
12
2
9
11
1
7
3
4
10
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

94256C96

LEVER

park brake, tractor with cab

1шт.

1331093C2

LEVER

park brake, tractor without cab, Includes: Ref. 1-15

1шт.

1

3125177R1

BUTTON

release

1шт.

2

27306R1

WASHER,3/16" x 7/16" x .036", Stainless

plain, 0.188 x 0.438 x 0.036 inch

1шт.

3

3125184R1

SPRING

button return

1шт.

4

3125185R1

GRIP

lever (PVC)

1шт.

5

94262C3

ROD

pusher

1шт.

6

20687R1

CLEVIS PIN,1/4" x .609"

PIN clevis, 0.25 x 0.609 inch

1шт.

7

94264C2

PAWL

1шт.

8

3125181R1

WASHER

pawl fulcrum

2шт.

9

3125183R1

PIN, SPLIT (COTTER)

PIN split, pawl fulcrum

1шт.

10

94265C5

LEVER

hand

1шт.

11

1330750C2

SPACER

1шт.

12

94263C3

PIN

pivot

1шт.

13

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

14

99423C5

BRACKET

PLATE ratchet assembly (Used with 94265C96) (Replaces 99423C4)

1шт.

15

1331094C2

RATCHET

PLATE ratchet assembly (Used with 1331093C2)

1шт.
