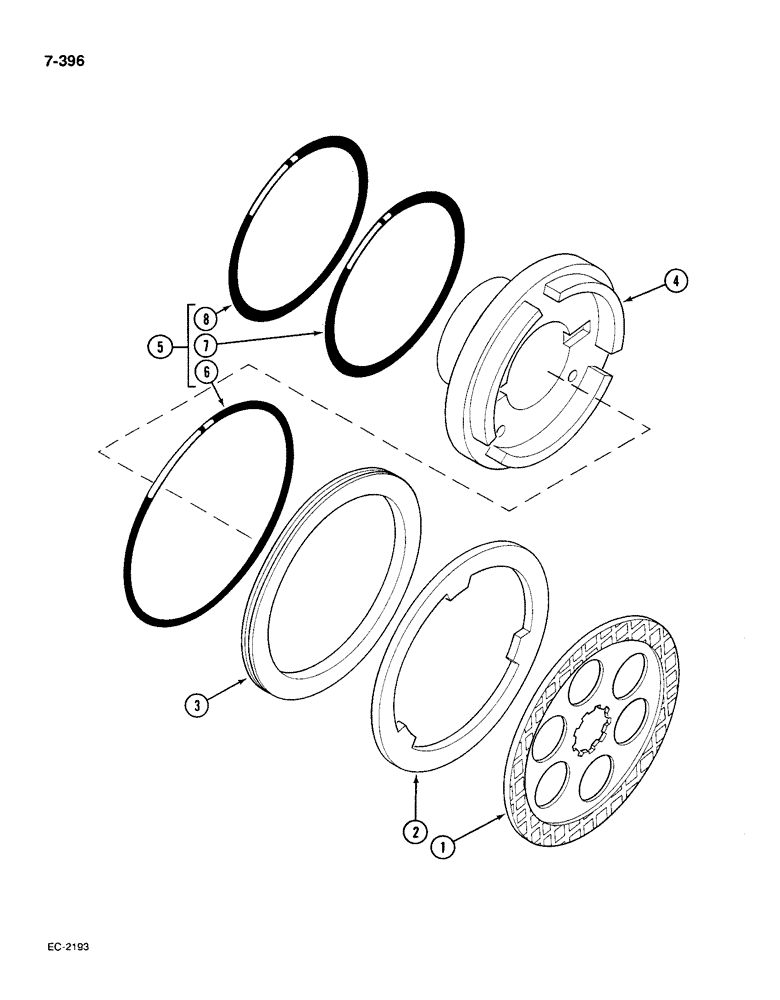

Запчасти Case IH 585 (7-396) - BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC brake center

2шт.

2

399736R3

RING

brake (assemble with numbered face inboard)

2шт.

3

114621C1

PISTON

brake

2шт.

4

399770R2

BEARING CARRIER

CARRIER differential bearing, right, see Figure 6-318

1шт.

4

399769R2

BEARING CARRIER

CARRIER differential bearing, left, see Figure 6-318

1шт.

5

539535R91

O-RING KIT

service, brake O-ring, Includes: Ref. 6-8

1шт.

6

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 ID x 1/8 inch

2шт.

7

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 ID x 8-1/2 inch, class 6

2шт.

8

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 ID x 7-7/8 inch

2шт.
