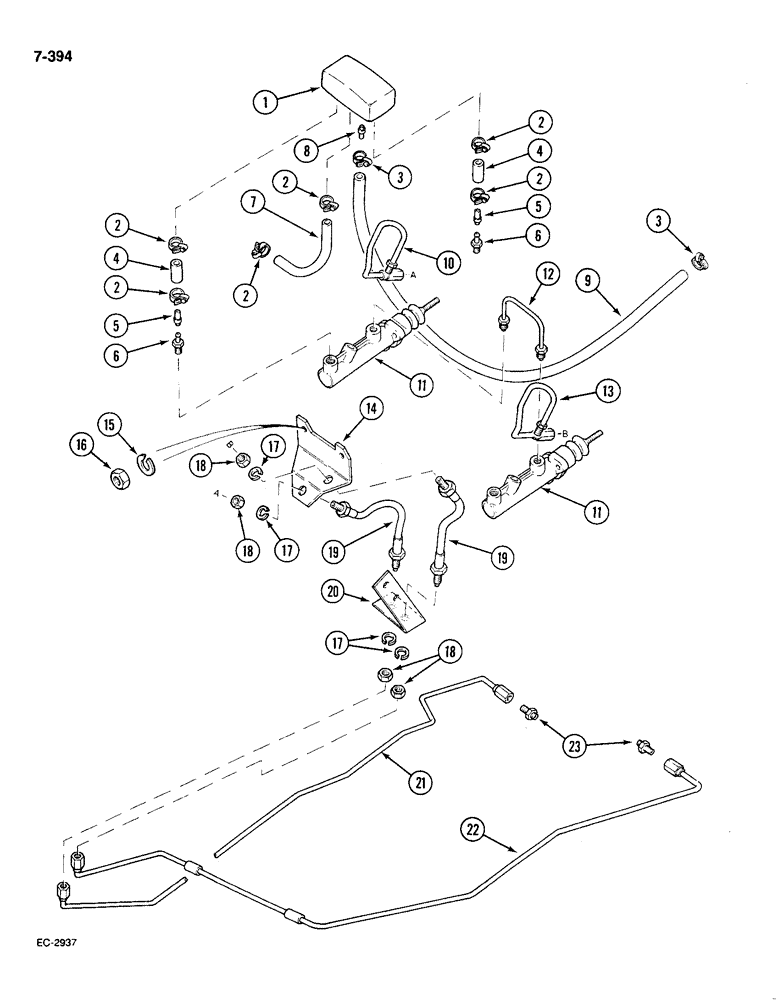

Запчасти Case IH 585 (7-394) - BRAKE CYLINDERS AND PIPES, WITH CAB (07) - BRAKES

1

3129644R1

RESERVOIR

brake

1шт.

2

3125239R1

COLLAR

CLAMP hose, worm drive

6шт.

3

3074617R1

CLAMP

hose

2шт.

4

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

5

537849R2

SCREEN

with orifice

2шт.

6

3129659R1

PIPE ASSY.

PIPE cylinder supply

2шт.

7

3129650R1

HOSE,8.00 mm ID x 220.00 mm

- Reservoir supply 8.00 mm ID x 220.00 mm

1шт.

8

537518R1

SCREEN

assembly

1шт.

9

3129651R1

HYDRAULIC HOSE,13.50 mm ID x 900.00 mm, SAE 100R6

- Reservoir dump 13.50 mm ID x 900.00 mm, SAE 100R6

1шт.

10

98561C1

PIPE

right cylinder outlet

1шт.

11

1287734C91

MASTER CYLINDER

CYLINDER brake master, see Figure 7-390

2шт.

12

1282650C2

PIPE

cylinder link

1шт.

13

98856C1

PIPE

left cylinder outlet

1шт.

14

98562C1

SUPPORT

BRACKET brake supply pipe

1шт.

15

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

16

30167R1

NUT,M8, Cl 10

hex, M8, class 10

4шт.

17

934492R1

LOCK WASHER,Ext Tooth, M14

WASHER lock, external tooth, 14 mm

4шт.

18

3129654R1

THIN NUT

hex, M14 x 1.5 mm, thin section

4шт.

19

3129653R91

HOSE ASSY.

HOSE high pressure

2шт.

20

1500533C2

SUPPORT

BRACKET brake pipe support

1шт.

21

3129665R1

PIPE

slave cylinder supply, right

1шт.

22

99858C1

PIPE

TUBE left cylinder supply

1шт.

23

3129671R1

FITTING

ADAPTER brake pipe

2шт.

3123194R1

TAPE

cable, bulk length (not illustrated)

1шт.
