(7-392) - BRAKE PEDALS AND CYLINDERS, WITH CAB

Запчасти Case IH 585 (7-392) - BRAKE PEDALS AND CYLINDERS, WITH CAB (07) - BRAKES

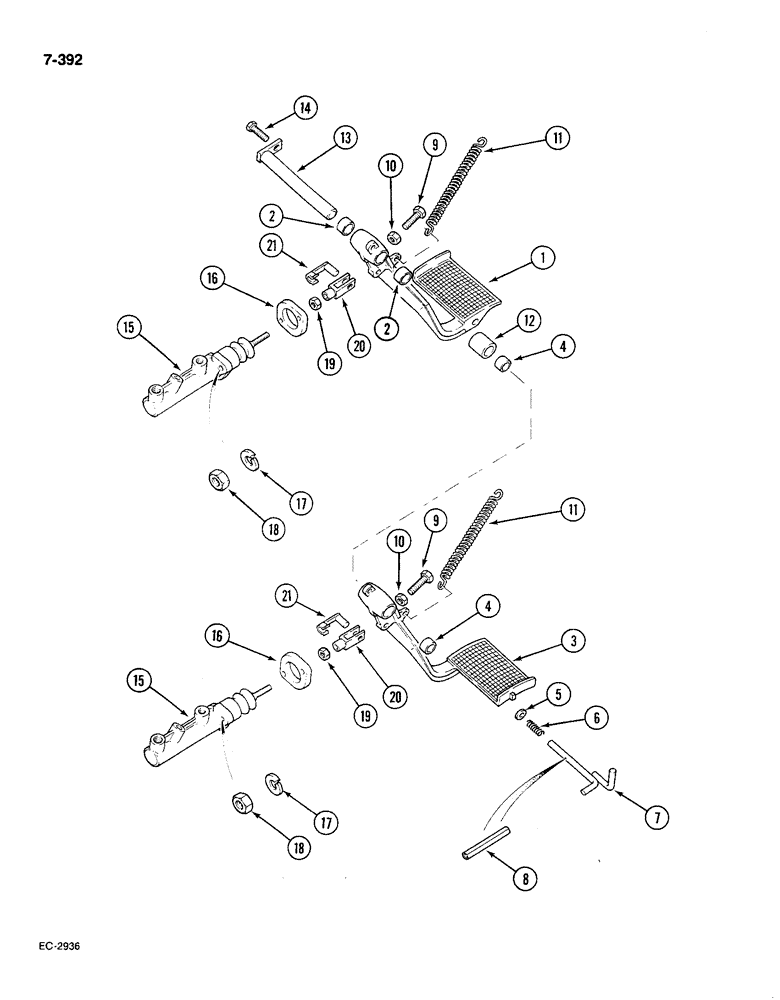

Схема запчастей Case IH 585 - (7-392) - BRAKE PEDALS AND CYLINDERS, WITH CAB (07) - BRAKES
20
5
17
21
11
3
14
18
13
1
7
2
16
6
21
10
9
4
2
20
15
18
11
19
8
19
16
9
17
4
10
15
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3232965R92

PEDAL ASSY.

PEDAL brake, right, Includes: Ref. 2

1шт.

2

3226548R1

BUSHING

2шт.

3

3232966R92

PEDAL ASSY.

PEDAL brake, left, Includes: Ref. 4

1шт.

4

3226548R1

BUSHING

2шт.

5

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

flat, M10

1шт.

6

3232969R1

SPRING

compression

1шт.

7

3232964R1

LATCH ASSY.

LATCH pedal

1шт.

8

932229R1

SPLIT PIN/SAFETY PIN

PIN slotted spring, 4 x 20 mm

1шт.

9

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

(Brake pedal stop) Hex, M10 x 25, 8.8, Full Thd

2шт.

10

30284R1

NUT,M10, Cl 10

hex, M10, class 10

2шт.

11

3234643R1

SPRING

tension

2шт.

12

3232968R1

SPACER

1шт.

13

3232962R1

PIVOT PIN,20mm OD x 170mm L

ROD pedal support

1шт.

14

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm x 20 mm, class 8.8

1шт.

15

1287734C91

MASTER CYLINDER

CYLINDER brake master, see Figure 7-390

2шт.

16

3129655R1

SPACER

2шт.

17

934309R1

LOCK WASHER,M8

WASHER lock, M8

4шт.

18

30167R1

NUT,M8, Cl 10

hex, M8, class 10

4шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

3222848R1

CLEVIS

2шт.

21

3232963R1

PIN

clevis, 10 x 20 mm

2шт.
