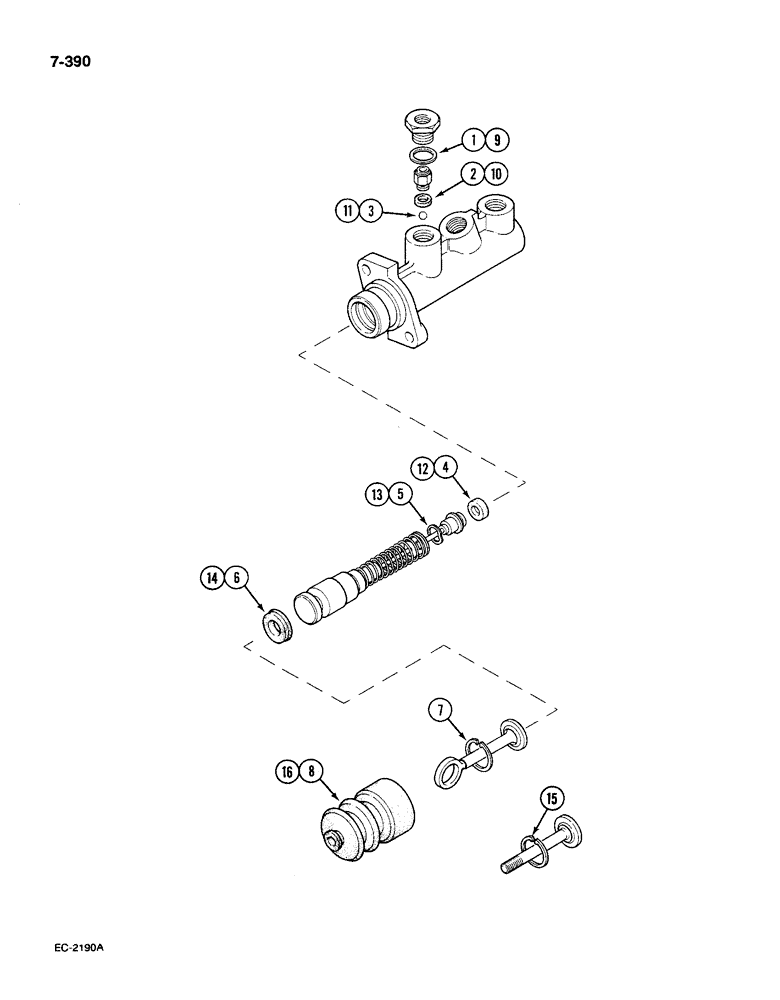

Запчасти Case IH 585 (7-390) - BRAKE CYLINDER (07) - BRAKES

1287843C91

MASTER CYLINDER

CYLINDER brake master, tractor without cab, Includes: Ref. 1-8

2шт.

1288228C1

REPAIR KIT

KIT seals, brake cylinder, tractor without cab, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

GASKET

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL flow valve

1шт.

3

NSS

NOT SOLD SEPARAT

BALL

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP

1шт.

8

1288242C1

BELLOWS

BOOT dust, brake cylinder, tractor without cab

1шт.

1287734C91

MASTER CYLINDER

CYLINDER brake master, tractor with cab, Includes: Ref. 9-16

2шт.

1288229C1

KIT

KIT service, master cylinder seals, tractor with cab, Includes: Ref. 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL flow valve

1шт.

11

NSS

NOT SOLD SEPARAT

BALL

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL valve

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL gland

1шт.

15

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

16

85109C1

BELLOWS

COVER dust, brake cylinder, tractor with cab

1шт.
