(7-388) - BRAKE CYLINDER AND PIPES, WITHOUT CAB

Запчасти Case IH 585 (7-388) - BRAKE CYLINDER AND PIPES, WITHOUT CAB (07) - BRAKES

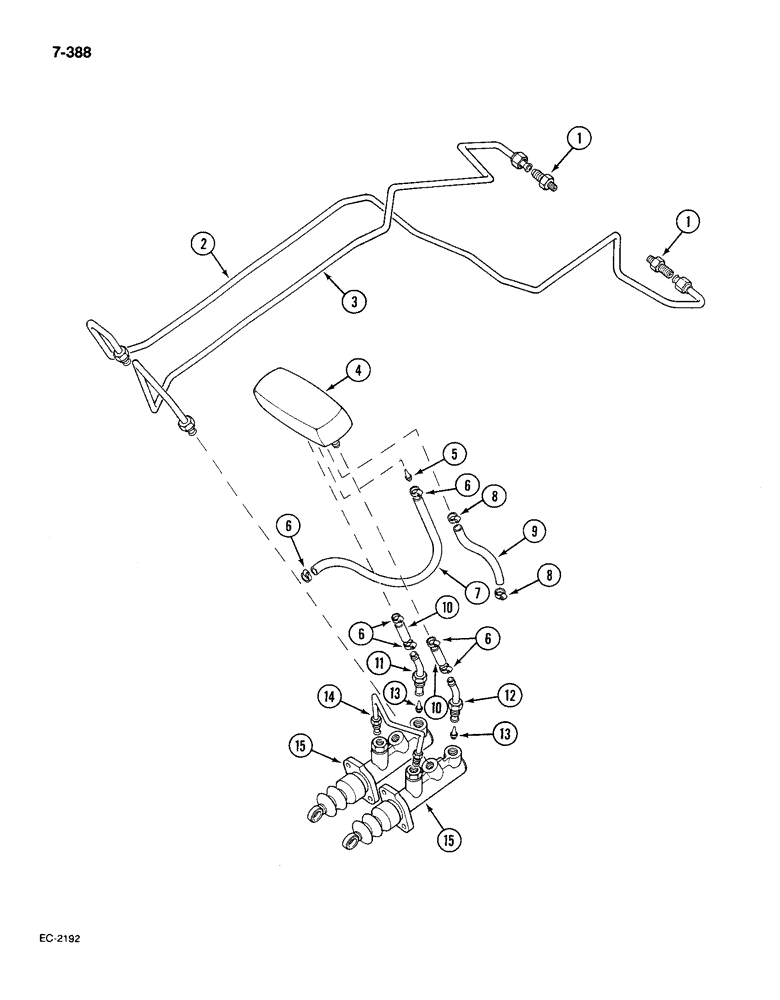

Схема запчастей Case IH 585 - (7-388) - BRAKE CYLINDER AND PIPES, WITHOUT CAB (07) - BRAKES
15
9
10
6
1
3
14
2
5
4
6
13
1
10
8
13
7
15
12
8
6
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3129671R1

FITTING

ADAPTER brake pipe

2шт.

2

1282572C3

PIPE,8" OD, 350, 263 mm Length

TUBE brake, left, Serial Range: -20671

1шт.

2

1956753C1

PIPE

TUBE brake, left, Start Serial: 20671

1шт.

3

1282573C2

BRAKE LINE

TUBE brake, right

1шт.

4

3129644R1

RESERVOIR

brake

1шт.

5

537518R1

SCREEN

assembly

1шт.

6

3125239R1

COLLAR

CLAMP hose, worm drive

6шт.

7

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

brake reservoir supply

1шт.

8

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose, No. 10, type F

2шт.

8

3074617R1

CLAMP

hose, Serial Range: (Optional-274085R91)

2шт.

9

1288340C1

HOSE

reservoir dump, 250 mm

1шт.

10

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

11

98804C1

BRAKE LINE

TUBE brake cylinder supply, right

1шт.

12

98805C1

BRAKE LINE

TUBE brake cylinder supply, left

1шт.

13

537849R2

SCREEN

with orifice, no longer required, Years: -06-DEC-95

2шт.

14

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

TUBE equalizer

1шт.

REF 14 EQUALIZER VALVE IS 530374R92

1шт.

15

1287843C91

MASTER CYLINDER

CYLINDER brake master, see Figure 7-390

2шт.
