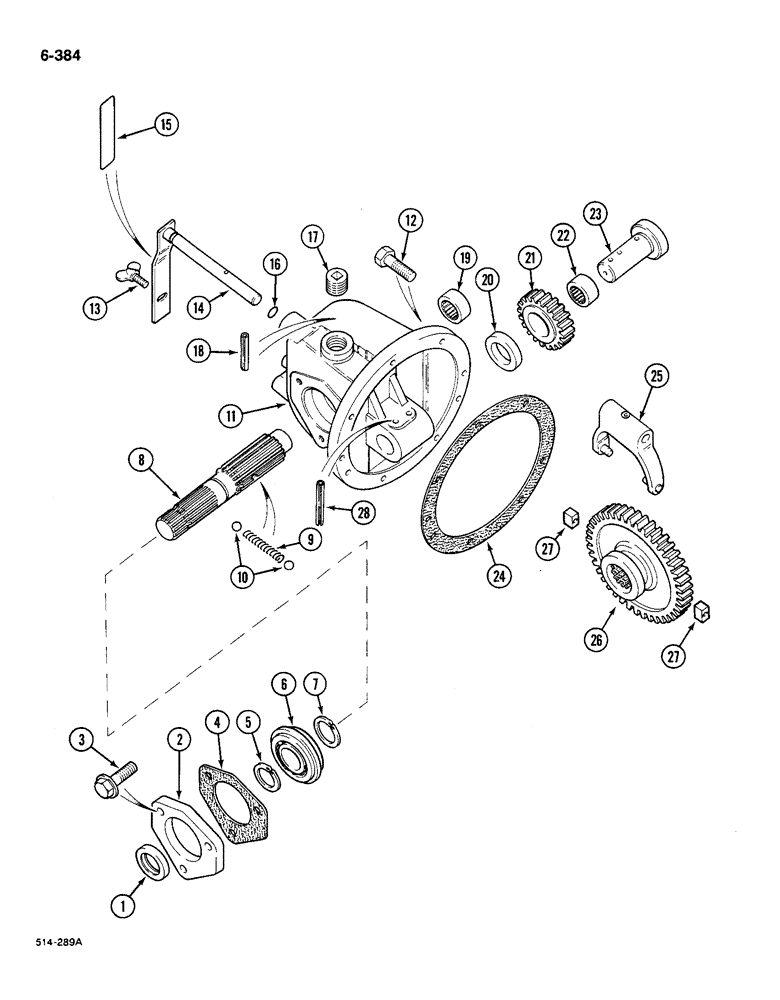

Запчасти Case IH 585 (6-384) - SIDE POWER TAKE OFF, PRIOR TO P.I.N. 18001, FOR TRACTORS WITH SINGLE OR DUAL SPEED IPTO (06) - POWER TRAIN

1

381480R1

OIL SEAL

oil, output shaft

1шт.

1

381480R1GV

SEAL

Value, Oil Seal

1шт.

2

529327R1

FLANGED BEARING

output shaft bearing

1шт.

3

321316R1

SCREW

cap, hex, 1/2 NC x 1-1/4 inch

3шт.

4

529328R1

GASKET

output shaft bearing retainer

1шт.

5

A21619

CIRCLIP

RING retaining

1шт.

6

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.

6

700497R91

BEARING, BALL

BEARING ball, Serial Range: (Optional-ST247)

1шт.

6

67647C91

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

ball (Optional to ST247)

1шт.

6

645336R91

BALL BEARING

BEARING ball, Serial Range: (Optional-ST247)

1шт.

6

71269C91

BEARING

ball, Serial Range: (Optional-ST247)

1шт.

7

R15364

SNAP RING,#152, 1.527", Ext

RING retaining, external, 1.527 inch

1шт.

8

67131C1

SHAFT

output

1шт.

9

529329R1

SPRING

driven gear poppet

1шт.

10

17009R1

BALL

steel, 9/32 inch diameter

2шт.

11

529322R2

HOUSING side drive PTO

1шт.

12

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

7шт.

13

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

14

65772C1

SHAFT ASSY.

SHAFT selector fork, with decal, Includes: Ref. 15

1шт.

15

65771C1

DECAL

side PTO caution instruction

1шт.

16

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 inch, class 5

1шт.

17

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG automotive square socket, 3/4 inch NPTF

1шт.

18

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

19

529323R91

BEARING, NEEDLE

BEARING needle

1шт.

20

67130C1

SPACER

idler gear

1шт.

21

529325R1

GEAR, IDLER

GEAR side drive PTO idler, 21 teeth

1шт.

22

287057R91

BEARING, NEEDLE

BEARING needle, idler gear

1шт.

22

531437R91

NEEDLE BEARING

BEARING needle, Serial Range: (Optional-287057R91)

1шт.

23

67129C1

SHAFT

side drive PTO idler gear

1шт.

24

528650R1

GASKET

side drive PTO housing

1шт.

25

529331R1

FORK

drive gear selector

1шт.

26

67132C1

GEAR

side drive PTO driven, 44 teeth

1шт.

27

67133C1

BLOCK

selector fork

2шт.

28

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.
