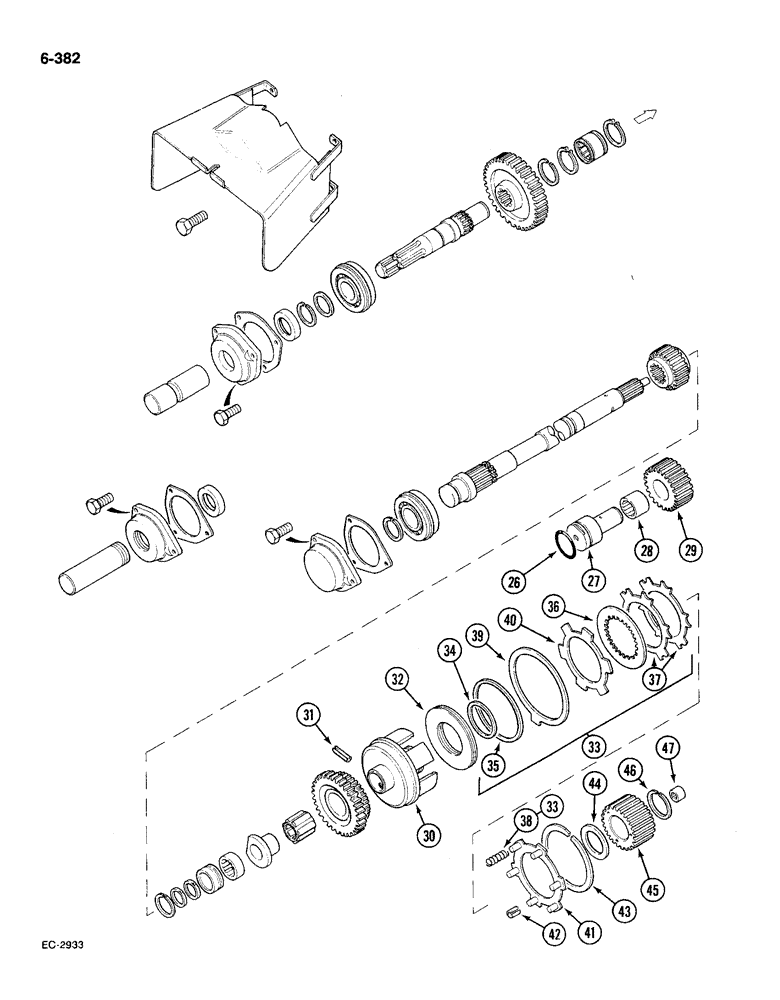

Запчасти Case IH 585 (6-382) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED, CONTD (06) - POWER TRAIN

26

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 3/32 inch, class 5

1шт.

27

401726R1

SHAFT

IPTO idler

1шт.

28

570450R91

NEEDLE BEARING

needle, idler shaft

1шт.

28

528105R91

BEARING, NEEDLE

BEARING needle, Serial Range: (Optional-570450R91)

1шт.

29

401727R1

PINION

GEAR idler, 24 teeth

1шт.

30

3125149R1

CUP

IPTO clutch, Serial Range: -18001

1шт.

30

66068C1

GEAR

CUP IPTO clutch, 2 wheel drive with side drive PTO, Serial Range: -18001

1шт.

30

1500020C1

CUP

IPTO clutch, 4 wheel drive with side car PTO, Serial Range: -18001

1шт.

30

1335402C1

CUP

IPTO clutch, Start Serial: 18001

1шт.

31

617938R1

PIN,5/16" x 1 3/8", Coiled

, Serial Range: -18001

1шт.

31

617941R1

PIN,5/16" x 2", Coiled

, Start Serial: 18001

1шт.

32

401722R1

PISTON

clutch

1шт.

33

66193C91

PACKAGE

KIT service, clutch plate, Includes: Ref. 34-38

1шт.

34

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner

1шт.

35

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE clutch driven

5шт.

37

NSS

NOT SOLD SEPARAT

PLATE clutch separator

8шт.

38

66182C1

SPRING

piston return

6шт.

39

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake, Serial Range: -18001

1шт.

39

82349C1

RING

IPTO brake, Start Serial: 18001

1шт.

40

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

41

66186C92

PLATE ASSY.

PLATE clutch backing, Includes: Ref. 42

1шт.

42

19555R1

PIN,5/16" x 1", Coiled

6шт.

43

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

44

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

WASHER thrust

1шт.

45

66183C2

HUB ASSY.,45T

HUB clutch

1шт.

46

401756R1

SNAP RING,#206, 1.936", Ext

RING retaining, external, 1.936 inch

1шт.

47

533325R91

BEARING, NEEDLE

BEARING needle IPTO driven shaft, Serial Range: -18001

1шт.

47

538467R91

BEARING, NEEDLE

BEARING needle, Serial Range: (Optional-533325R91)

1шт.

47

82351C91

NEEDLE BEARING

BEARING needle IPTO driven shaft, Start Serial: 18001

1шт.
