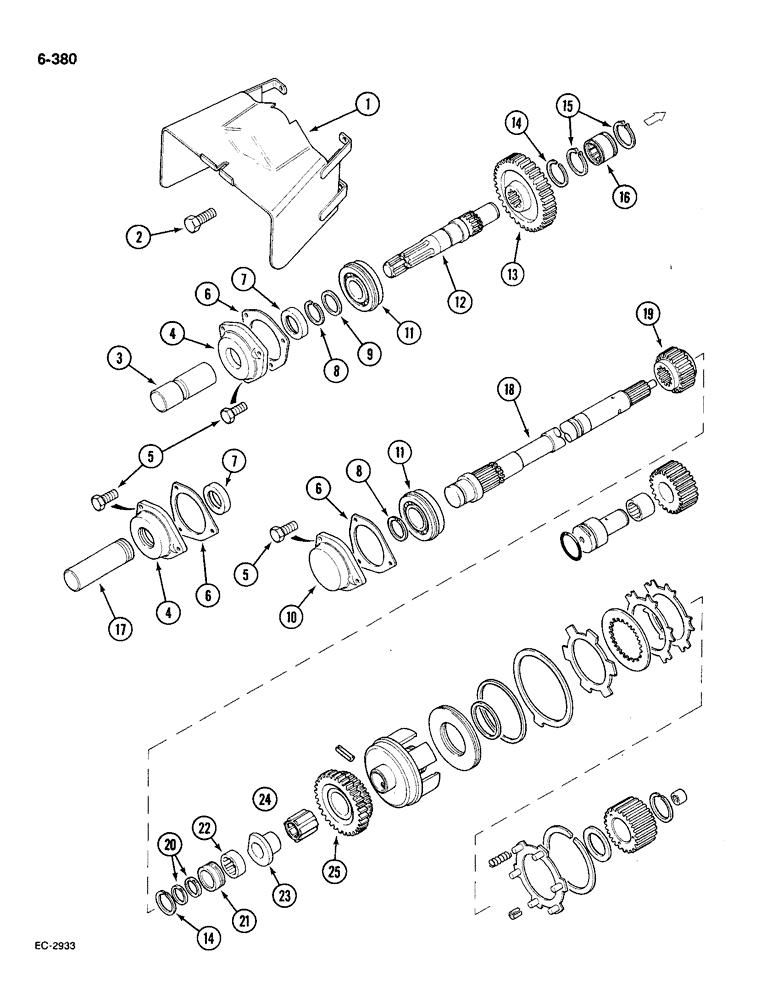

Запчасти Case IH 585 (6-380) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD IPTO safety

1шт.

2

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

3054841R2

TUBE

CAP protection, IPTO safety

1шт.

4

1500086C2

FLANGE bearing, IPTO shaft (single speed)

1шт.

4

1500086C2

FLANGE bearing, IPTO shaft (dual speed)

2шт.

5

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

6шт.

6

399843R3

GASKET

rear frame, IPTO flange

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL oil, output shaft (single speed)

1шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL oil, output shaft (dual speed)

2шт.

8

607186R1

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

1шт.

10

66191C1

FLANGED BEARING

bearing, IPTO shaft (single speed)

1шт.

11

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING ball, output shaft

2шт.

11

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING ball (Optional to ST250)

2шт.

11

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball (Optional to ST250)

2шт.

11

67648C91

BEARING

ball, Serial Range: (Optional-ST250)

2шт.

11

84246R91

BEARING ball, Serial Range: (Optional-ST250)

2шт.

11

93167C1

BALL BEARING,40 mm ID x 96.5 mm OD x 23 mm

ball (Optional to ST250)

2шт.

12

1500087C1

SHAFT

upper, IPTO output

1шт.

13

1342557C2

PINION

GEAR upper driven, 38 teeth (Replaces 66192C1)

1шт.

14

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

2шт.

15

202307R1

SNAP RING,#206, Ext

Retaining, 1.906" #206, Ext

2шт.

16

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

needle

1шт.

17

406808R1

TUBE

IPTO shaft protection (dual speed)

1шт.

18

66189C1

SHAFT ASSY.

SHAFT IPTO driving (single speed), Serial Range: -18001

1шт.

18

99463C1

SHAFT

IPTO driving (single speed), Start Serial: 18001

1шт.

18

66180C2

SHAFT ASSY.

SHAFT output, 1000 rpm, 21 spline (dual speed), Serial Range: -18001

1шт.

18

99462C1

SHAFT

output, 1000 rpm, 21 spline (dual speed), Start Serial: 18001

1шт.

19

404233R1

PINION

GEAR drive, lower shaft, 22 teeth (single speed)

1шт.

19

404232R1

GEAR

drive, lower shaft, 21 teeth (dual speed)

1шт.

20

166972R1

RING

shaft sealing, Serial Range: -18001

2шт.

20

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

shaft sealing, Start Serial: 18001

2шт.

21

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft, Serial Range: -18001

1шт.

21

93506C1

BUSHING

lower shaft, Start Serial: 18001

1шт.

22

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING needle, Serial Range: -18001

1шт.

22

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle, lower shaft, Start Serial: 18001

1шт.

22

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

needle (Optional to 93500C91)

1шт.

23

82499C2

BUSHING

double idler gear (4 wheel drive tractor), Start Serial: 18001

1шт.

24

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

needle (4 wheel drive tractor), Start Serial: 18001

1шт.

25

82666C1

GEAR

double idler (4 wheel drive tractor), Start Serial: 18001

1шт.
