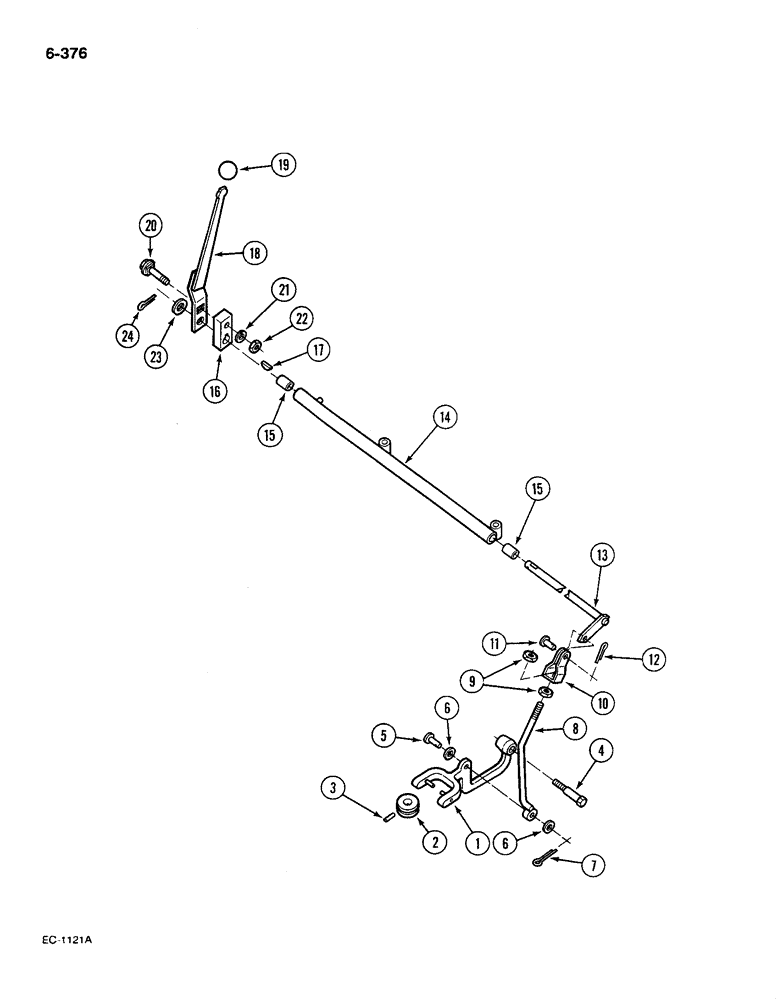

Запчасти Case IH 585 (6-376) - POWER TAKE OFF CONTROL, WITHOUT CAB (06) - POWER TRAIN

1

94344C2

LEVER

IPTO control

1шт.

2

530813R2

GUIDE BUSHING

COLLAR IPTO control

1шт.

3

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

4

401754R1

BOLT,3/8" - 16 x 2.20"

control arm pivot shaft

1шт.

5

138084

SPLIT PIN/SAFETY PIN

PIN clevis, 3/8 x 1-1/16 inch

1шт.

6

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

7

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

3129234R1

ROD ASSY.

ROD IPTO control

1шт.

9

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF, grade 5

2шт.

10

3129237R1

CLEVIS

IPTO control

1шт.

11

24660R1

CLEVIS PIN,5/16" x .719"

PIN clevis, 5/16 x 23/32 inch

1шт.

12

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

3129240R1

SHAFT ASSY.

SHAFT IPTO control cross-over

1шт.

14

3129238R91

SUPPORT ASSY.

SUPPORT IPTO control shaft, Includes: Ref. 15

1шт.

15

528839R1

BUSHING

2шт.

16

538719R1

PIVOT

control handle

1шт.

17

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

18

538720R1

LEVER ASSY.

LEVER IPTO adjusting

1шт.

19

530090R1

KNOB

hand lever, yellow, Serial Range: -18001

1шт.

19

99863C1

BUTTON

KNOB hand lever, yellow, Start Serial: 18001

1шт.

20

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT carriage, 5/16 NC x 1-1/4 inch

1шт.

21

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

120376

NUT,5/16"-18, G5

1шт.

23

21903R1

WASHER

flat, 0.531 x 0.75 x 0.105 inch

1шт.

24

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
