Запчасти Case IH 585 (6-374) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 AND 26 INCH WHEELS (06) - POWER TRAIN

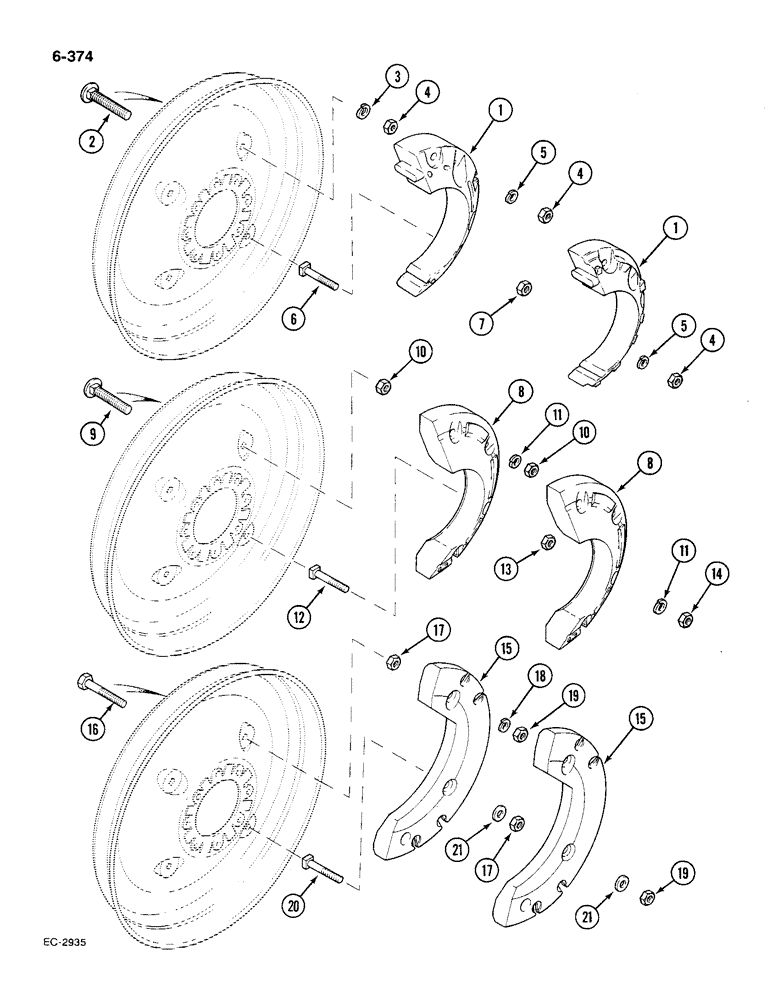

Схема запчастей Case IH 585 - (6-374) - REAR WHEEL WEIGHTS, SPLIT TYPE, 24 AND 26 INCH WHEELS (06) - POWER TRAIN
10
15
4
20
9
1
1
8
11
15
19
21
16
17
8
19
17
3
10
5
6
4
13
2
12
21
18
14
7
4
11
5

Артикул

Название

Примечание

Количество

1

369509R1

WEIGHT

rear wheels, 75 lbs (24 and 26 inch wheels) (1st or 2nd position)

4шт.

1

366645R1

WEIGHT

rear wheels, 75 lbs (26 inch wheel) (Sankey or Nagbol wheels: 1st, 2nd or 3rd position)

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

carriage, 5/8 NC x 3-3/4 inch (1st position)

8шт.

3

131140

LOCK WASHER,5/8"

WASHER, LOCK, , 1st position 5/8"

8шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5 (1st position)

16шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5 (2nd or 3rd position)

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1st, 2nd or 3rd position) 5/8"

8шт.

6

369508R1

BOLT,5/8" - 11 x 5 3/4"

square head, 5/8 NC x 5-3/4 inch (used with weight 369509R1 in 2nd position)

8шт.

6

366647R1

BOLT,Sq Hd, 5/8" - 11 x 5 1/2"

square head, 5/8 NC x 5-1/2 inch (used with weight 366645R1 in 2nd or 3rd position)

8шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC (used with bolt 369508R1)

8шт.

8

365321R1

WEIGHT

rear wheel, 75 lbs (1st or 2nd position), 28 or 30 inch

8шт.

9

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

square neck carriage, 5/8 NC x 3 inch (1st position), 28 or 30 inch wheels

8шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5 (1st position), 28 or 30 inch wheels

16шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (1st or 2nd position), 28 or 30 inch wheels 5/8"

8шт.

12

365332R2

SQUARE BOLT

BOLT square head, rear wheel weight (2nd position), 28 or 30 inch wheels

8шт.

13

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC (2nd position), 28 or 30 inch wheels

8шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5 (2nd position), 28 or 30 inch wheels

8шт.

15

400078R2

WEIGHT

rear wheel (1st, 2nd or 3rd position), 38 or 42 inch wheels for bar type axle

4шт.

16

528340R1

BOLT

BOLT hex, 3/4 NC x 5-1/4 inch (1st position), 38 or 42 inch wheels for bar type axle

8шт.

17

426897

JAM NUT,Jam, 3/4"-10, G5

hex jam, 3/4 inch NC (1st, 2nd or 3rd position), 38 or 42 inch wheels for bar type axle

8шт.

18

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1st position, 38 or 42 inch wheels for bar type axle

8шт.

19

280954

NUT,3/4"-10, G5

(1st, 2nd or 3rd position), 38 or 42 inch wheels for bar type axle 3/4"-10, G5

8шт.

20

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

square head, 3/4 NC x 3-1/4 inch (2nd or 3rd position), 38 or 42 inch wheels for bar type axle

8шт.

21

366112R1

WASHER

flat, 0.781 x 1.250 x 0.105 (2nd or 3rd position), 38 or 42 inch wheels for bar type axle

16шт.

Выбрано товаров: 24
